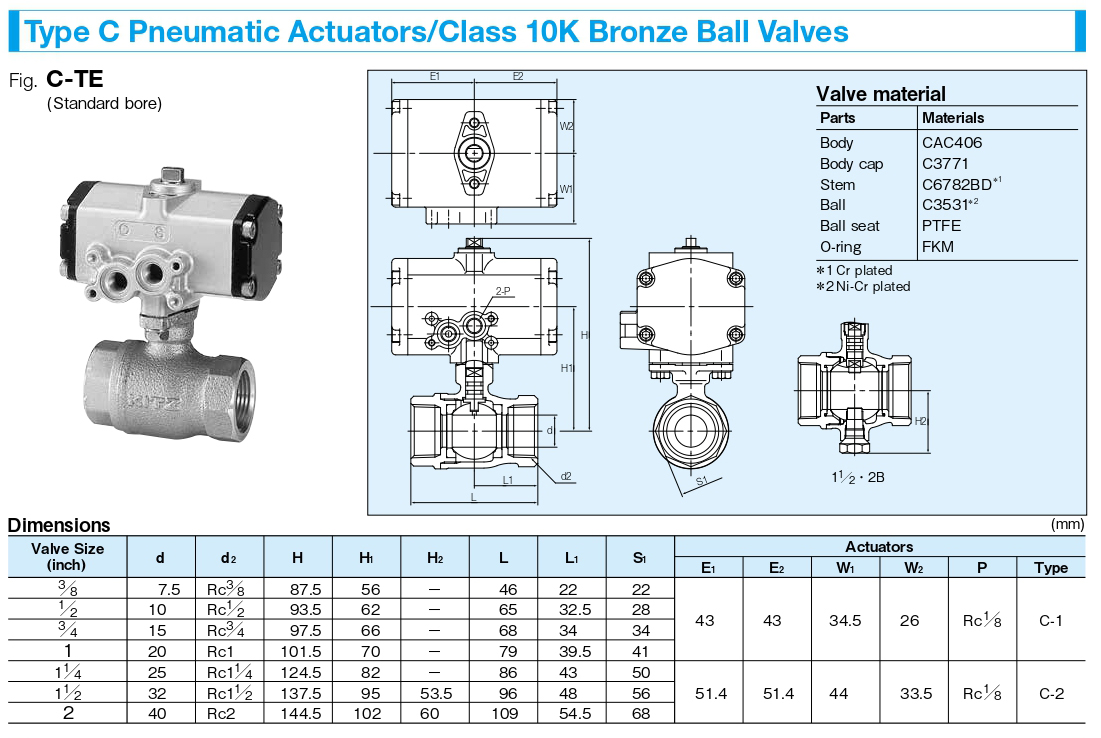

C Type (double acting type)
[Features]
· Lightweight and compact.
· A compact and lightweight actuator. The main actuator enclosure is made of die-cast aluminum alloy, while the drive is a double piston type structure.
· Simple configuration with few defects.
· Excels in durability and is comprised of the minimum number of components and thus extremely unlikely to experience a breakdown or failure.
· A dedicated solenoid valve can be attached directly.
· A dedicated solenoid valve is available that can be attached directly to the actuator, facilitating piping work.
· Highly efficient quarter-turn type.
· A high-efficiency quarter-turn type actuator with a double piston type rack and pinion structure.
· Direct coupling type valve unit.
· The actuator and the valve unit can be directly connected using just 2 bolts.
Part Number | Price | Name | Minimum Order Qty. | Volume Discount | Days to Ship | Plumbing Thread Nominal | Operating Temperature Range (°C) | Connection Method | Actuator Specifications | Method | Cap Material | Material of stem |
---|---|---|---|---|---|---|---|---|---|---|---|---|
฿ 3,866.41 | AUTOMATION VALVE | 1 Piece(s) | Same day | 3/8 | -20~60 | Screw-In | Type C (double-acting) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 3,681.02 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1/2 | -20~60 | Screw-In | Type C (double-acting) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 3,853.09 | AUTOMATION VALVE | 1 Piece(s) | Same day | 3/4 | -20~60 | Screw-In | Type C (double-acting) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 4,214.56 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1 | -20~60 | Screw-In | Type C (double-acting) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 4,829.84 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1 1/4 | -20~60 | Screw-In | Type C (double-acting) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 7,278.46 ฿ 3,911.44 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1 1/2 | -20~60 | Screw-In | Type C (double-acting) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 8,683.33 | AUTOMATION VALVE | 1 Piece(s) | Same day | 2 | -20~60 | Screw-In | Type C (double-acting) | - | C3771BE | C6782BD+Cr Plating | ||

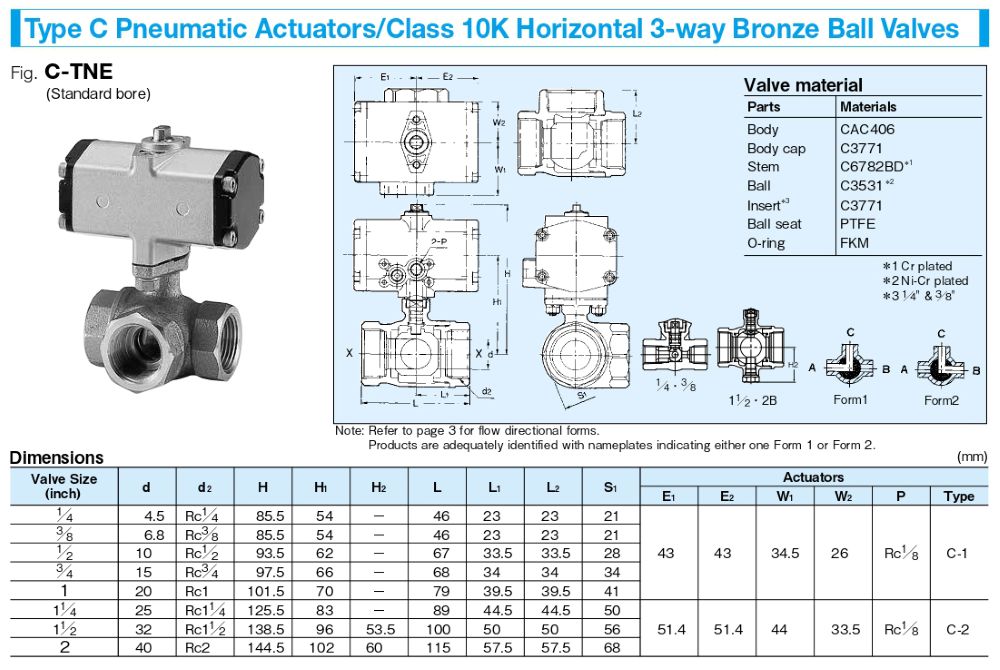

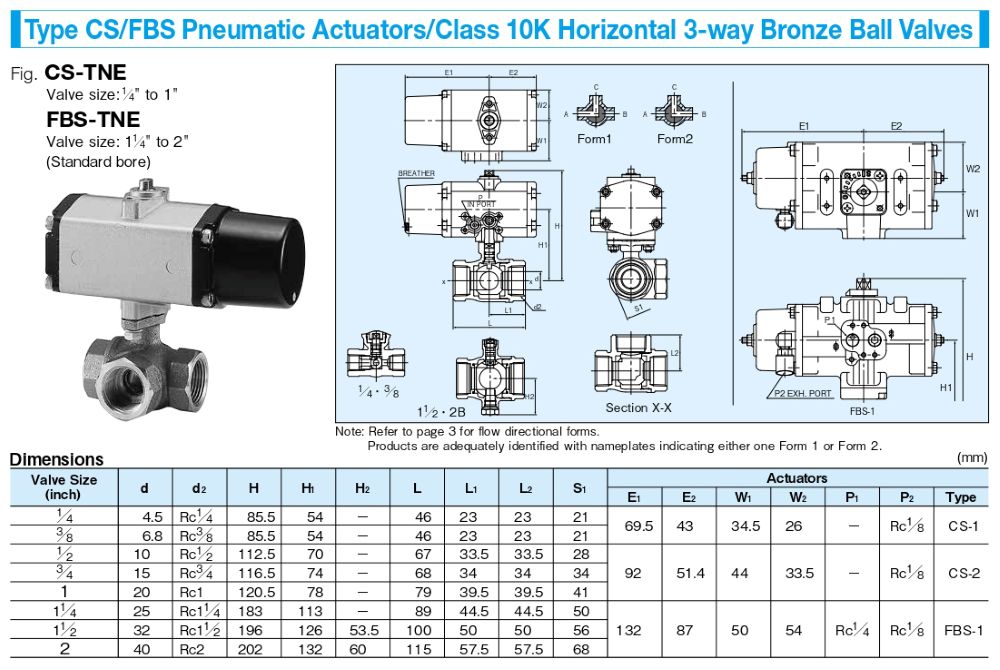

฿ 5,129.42 | AUTOMATION VALVE | 1 Piece(s) | 5 Day(s) | 1/4 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | - | C6782BD+Cr Plating | ||
฿ 4,476.19 ฿ 3,168.69 | AUTOMATION VALVE | 1 Piece(s) | Same day | 3/8 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | - | C6782BD+Cr Plating | ||
฿ 5,451.46 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1/2 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | C3771BE | C6782BD+Cr Plating | ||
฿ 5,566.91 ฿ 3,116.91 | AUTOMATION VALVE | 1 Piece(s) | Same day | 3/4 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | C3771BE | C6782BD+Cr Plating | ||
฿ 6,330.63 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | C3771BE | C6782BD+Cr Plating | ||
฿ 7,135.39 | AUTOMATION VALVE | 1 Piece(s) | 5 Day(s) | 1 1/4 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | C3771BE | C6782BD+Cr Plating | ||
฿ 8,812.84 | AUTOMATION VALVE | 1 Piece(s) | 5 Day(s) | 1 1/2 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | C3771BE | C6782BD+Cr Plating | ||
฿ 9,603.39 ฿ 5,907.05 | AUTOMATION VALVE | 1 Piece(s) | Same day | 2 | -20~60 | Three Directional Screw-In | Type C (double-acting) | Lateral Three-way two-sided Sheet and L-port | C3771BE | C6782BD+Cr Plating | ||

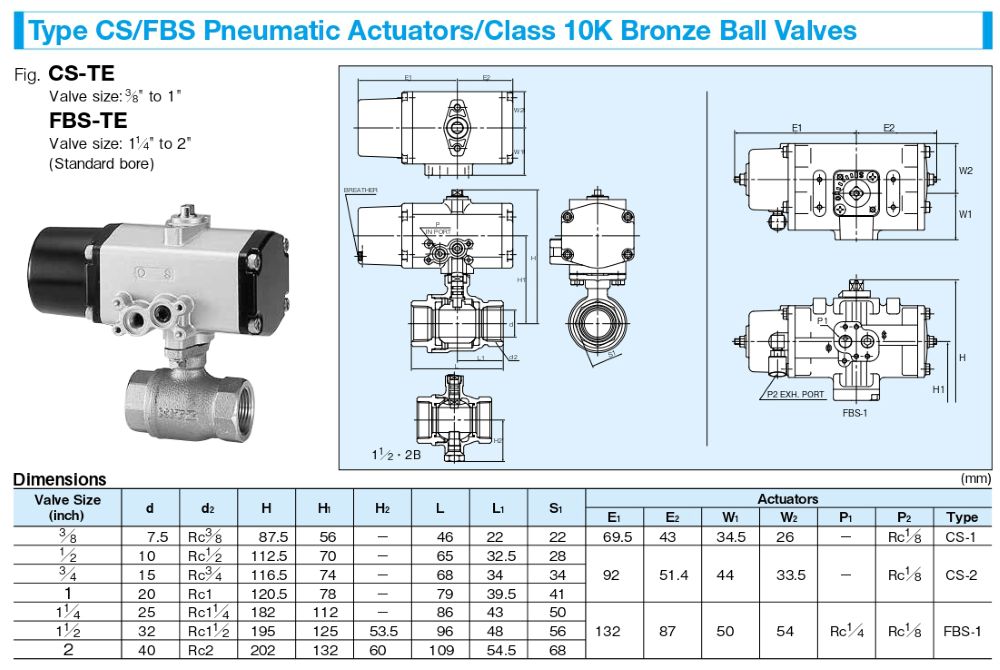

฿ 6,097.22 ฿ 3,734.55 | AUTOMATION VALVE | 1 Piece(s) | Same day | 3/8 | -20~60 | Screw-In | Type CS (spring-return) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 5,983.91 | AUTOMATION VALVE | 1 Piece(s) | 3 Day(s) | 1/2 | -20~60 | Screw-In | Type CS (spring-return) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 6,701.76 | AUTOMATION VALVE | 1 Piece(s) | 91 Day(s) | 3/4 | -20~60 | Screw-In | Type CS (spring-return) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 7,423.17 ฿ 4,135.45 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1 | -20~60 | Screw-In | Type CS (spring-return) | - | C3771BE | C6782BD+Cr Plating | ||
฿ 11,900.00 | AUTOMATION VALVE | 1 Piece(s) | Quote | 3/4 | -20~60 | Three Directional Screw-In | Type CS (spring-return) | Lateral Three-way two-sided Sheet and L-port | C3771BE | C6782BD+Cr Plating | ||
฿ 20,084.33 ฿ 11,436.02 | AUTOMATION VALVE | 1 Piece(s) | Same day | 1 1/2 | -20~80 | Screw-In | Type FBS (spring-return) | - | C3771BE | Dezincification Resistant Brass Bar + Cr Plating | ||
฿ 20,888.89 ฿ 11,894.13 | AUTOMATION VALVE | 1 Piece(s) | Same day | 2 | -20~80 | Screw-In | Type FBS (spring-return) | - | C3771BE | Dezincification Resistant Brass Bar + Cr Plating |
Loading...
Type | Air pressure ball valve | Applicable Fluid | Air / Water / Oil | Operating Environment | Standard |
---|---|---|---|---|---|
Connection Type | Rc(R) | Body Material | CAC406 | The type of a ball valve | Reduced Bore |
Nominal Pressure | 10K | Bracket | No | Material of Body | Brass•Bronze |
