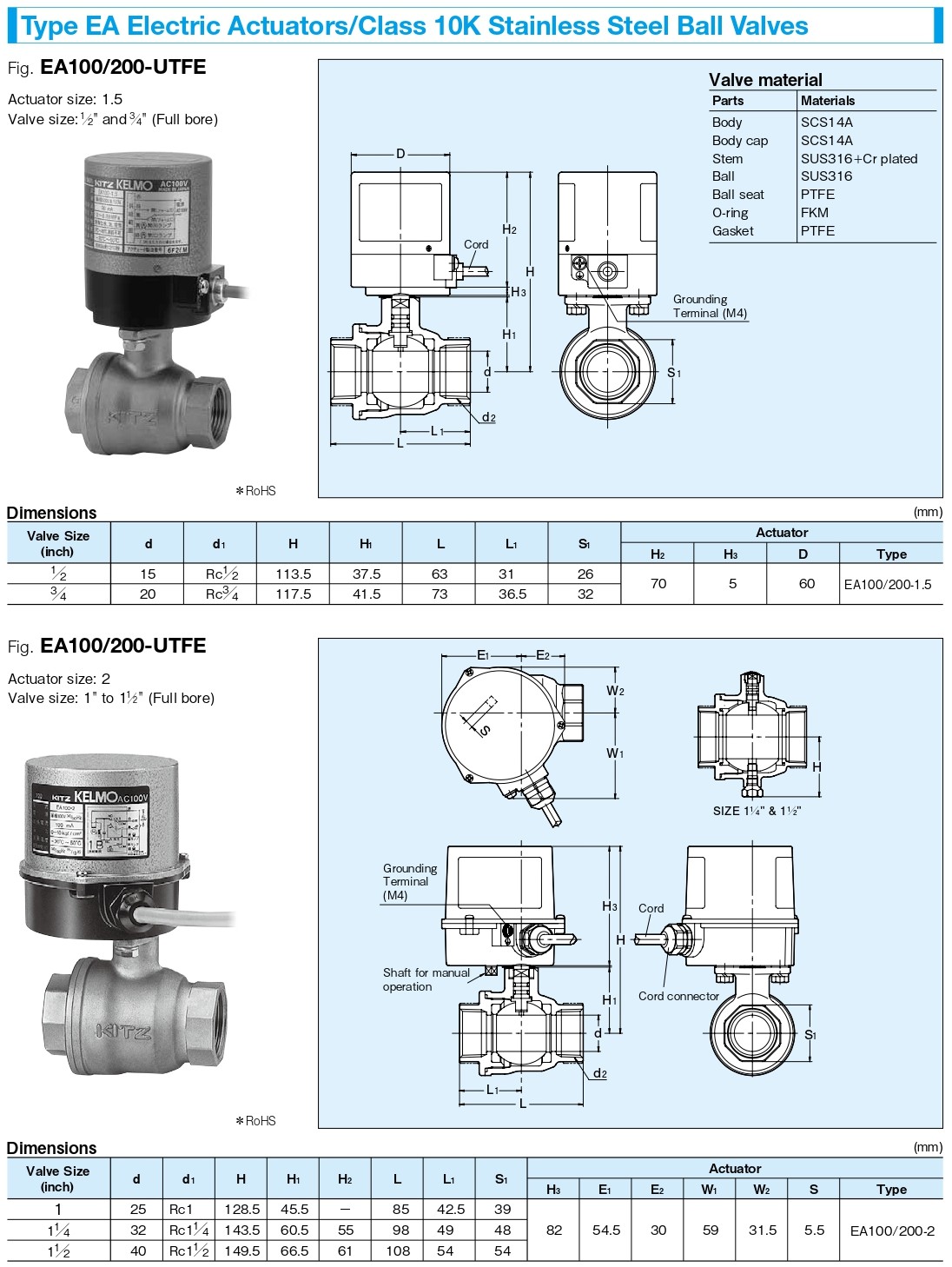

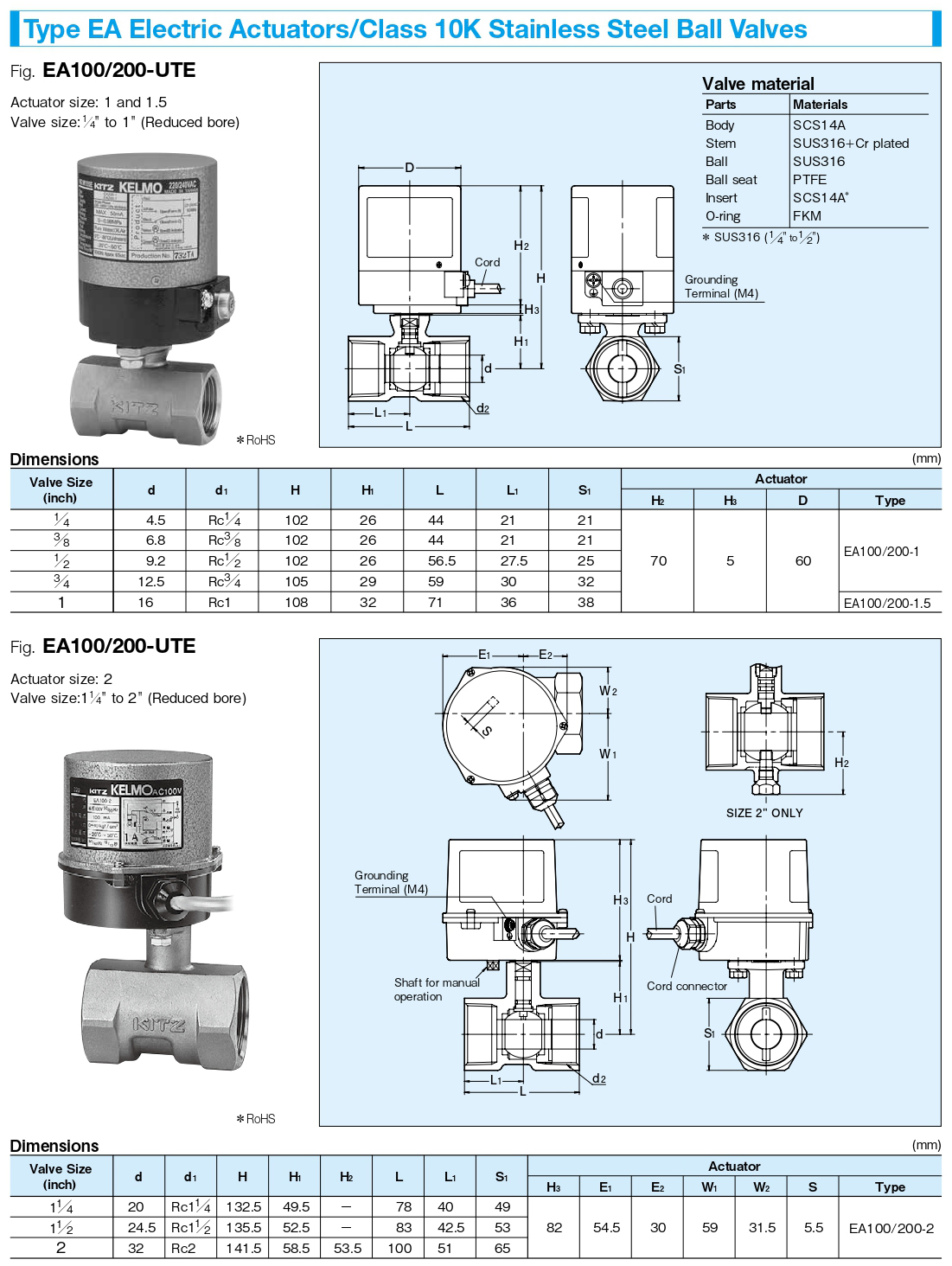

EA, 10K Cast Stainless Steel Ball Valve With KITZ-Electric Actuator
Caution
- Some of the items are scheduled to be discontinued as of end of March in 2023. The manufacturer keep the items produced but they are not available with Misumi.
There are not the replacement items and the plan to resumption of sale. Please check the quotation and order screen for details.
Product Description
EA type (100 V AC) ON/OFF control, 90° forward/reverse rotation
[Features]
· Developed a high-performance and small motor, realizing fast opening/closing speed and compactness.
· Low power consumption and turning OFF power supply after operation makes it economical.
· It is made up of minimal components, extremely low failures and has excellent durability.
· Manual opening/closing operation is possible in case of power failure.
· Eliminates problems with general solenoid valves, such as the occurrence of water hammer and malfunctions caused by contaminants.
· The power supply is 100/200 V AC, 12/24 V DC, with a built-in relay, terminal box and a 180-degree rotation type series standardized to meet various customer needs.
· The overload protection device is used to prevent the motor coil from burning.
· Can be used in outdoor piping line
