Small Pneumatic Cylinder 10Z-3 Series
Brand :
TAIYO
Caution
- Some of the items are scheduled to be discontinued as of end of March in 2023. The manufacturer keep the items produced but they are not available with Misumi.
There are not the replacement items and the plan to resumption of sale. Please check the quotation and order screen for details.
Product Description
Further compacting by adopting a clamp type compact switch.
[Features]
· Simple external appearance through stainless tubes.
· System-up type that can be set as a switch by simply attaching a switch to the cylinder main body.
· Switch can be mounted easily by adopting the clamp type.
· 17 types (11 types for ø50 and ø63) are available to provide the best support method.
· Stainless steel (with rigid chrome plating) is used for the standard inner diameter ø20 to ø32 piston rods.
Product Specifications
Cylinder Specifications
| Structure | Double acting type / single rod | Single acting type (spring return type) | |
|---|---|---|---|
| Type | Standard type / switch set | Standard type / switch set | |
| Model | 10Z-3 | 10Z-3SR | |
| Cylinder inner diameter (mm) | ⌀12·⌀16 | ||
| Operating Fluid | Air | ||
| Lubrication | Not required | ||
| Operating Pressure Range | 0.07 to 1 MPa | 0.15 to 1 MPa | |
| Pressure resistance | 1.5 MPa | ||
| Operating speed range | 50 to 500 mm/s (*) | ||
| Operating temperature range | -10 to +70°C (No freezing) | ||
| Cushion mechanism | With cushion pad | ||
| Thread tolerance | JIS 6g/6H | ||
| Stroke Length Tolerance | 200 mm or less (0 to +1.0) | ||
| Support Model | Basic form | SD, SD with B, LB, LS, FA, FB | |
| Clevis cut type | SK·LK·FK | ||
| Rear port type | SP·LP·FP | ||
| Related parts | Tip Metal Fitting | With 1-mountain spherical bearing (S tip), with 2-mountain pin (Y destination) | |
(*)
When setting the switch in the intermediate position, the maximum cylinder speed should be within 300 mm/s in relation to the response speed of the load relay, etc.
Cylinder Specifications / Standard
| Structure | Double acting type / single rod | Double acting type / both rods | Single acting (spring return) | Single acting (spring push) | ||
|---|---|---|---|---|---|---|
| Type | Standard type / switch set | VAL set / SV set | Standard type / switch set | Standard type / switch set | Standard type / switch set | |
| Series | 10Z-3 | 10Z-3V2 | 10Z-3D | 10Z-3SR | 10Z-3SH | |
| Cylinder inner diameter (mm) | ⌀20·⌀25·⌀32·⌀40·⌀50·⌀63 | ⌀20·⌀25·⌀32·⌀40 | ⌀20·⌀25·⌀32·⌀40·⌀50·⌀63 | ⌀20·⌀25·⌀32·⌀40 | ||
| Operating Fluid | Air | |||||
| Lubrication | Not required | |||||
| Operating Pressure Range | 0.05 to 1 MPa (⌀20 to ⌀40) 0.02 to 1 MPa (⌀50·⌀63) | 0.15 to 1 MPa | 0.05 to 1 MPa (⌀20 to ⌀40) 0.02 to 1 MPa (⌀50·⌀63) | 0.15 to 1 MPa | ||
| Pressure resistance | 1.5 MPa | |||||
| *1: operating speed range | 20 to 700 mm/s | 20 to 500 mm/s | 50 to 700 mm/s (⌀20 to ⌀40) 20 to 700 mm/s (⌀50 to ⌀63) | 50 to 700 mm/s | ||
| *2: operating temperature range | -10 to +70°C | -10 to +50°C | -10 to +70°C | -10 to +70°C | ||
| Cushion mechanism | Standard: with cushion pad (ø20 to ø40), with cushions on both sides (ø50, ø63); semi-standard: with cushion (only for some models) | |||||
| Thread tolerance | JIS 6g/6H | |||||
| Stroke Length Tolerance | 250 mm or less (0 to +1.0), 251 to 900 mm (0 to +1.5) | |||||
| Supporting bracket | Basic form | SD, SD with B (ø20 to ø40 only), LS (ø20, ø25 only), LB, FA, FB, TA, TA with B, TB, TB with B, CA (ø50, ø63 only) | SD·LC·FA· TA, TA with B, TC, TC with B, AD·BD | SD·LB·FA· TA, TA with B, AD·BD | SD, SD with B, LS (ø20, ø25 only), LB, FA, FB, TA, TA with B TB, TB with B | |
| Clevis cut type | SK, LK (ø20, ø25 only), FK, TK , TK with B, AD, BD | — | — | SK, LK (ø20, ø25 only), FK, TK, TK with B, AD, BD | ||
| Rear port type | SP, LP (ø20, ø25 only), FP, TP, TP with B, AP, BP | — | — | SP, LP (ø20, ø25 only), FP, TP, TP with B, AP, BP | — | |
| Related parts | Dust-Proof Cover | Nylon tarpaulin | ||||
| Tip Metal Fitting | 1-mountain (T destination: ø50, ø63 only), 1-mountain spherical bearing (S destination), 2-mountain pin (Y destination), F-joint (F destination) | |||||
*1:
- When setting the switch in the intermediate position, the maximum cylinder speed should be within 300 mm/s in relation to the response speed of the load relay, etc.
*2:
- For the operating temperature range, use the product in non-freezing conditions.
- Except for double-acting single rods, some support models are semi-standard.
Spring Force of Single Acting Cylinder
(N)
| Inner Diameter | Springs power | Stroke mm | ||
|---|---|---|---|---|
| 15 | 25 | 50 | ||
| ⌀12 | Initial load | 8.34 | 7.37 | 4.94 |
| Final load | 9.81 | |||
| ⌀16 | Initial load | 10.28 | 9.32 | 6.88 |
| Final load | 11.76 | |||
Standard Stroke Production Range
Double acting
Unit: mm
| Inner Diameter | Stroke | ||||||
|---|---|---|---|---|---|---|---|
| 15 | 25 | 30 | 50 | 75 | 100 | Stroke limit | |
| ⌀12 | ○ | ○ | ○ | ○ | ○ | ○ | 200 |
| ⌀16 | ○ | ○ | ○ | ○ | ○ | ○ | 200 |
Single acting type (spring return type)
Unit: mm
| Inner Diameter | Stroke | ||||
|---|---|---|---|---|---|
| 15 | 25 | 30 | 50 | Stroke limit | |
| ⌀12 | ○ | ○ | ○ | ○ | 50 |
| ⌀16 | ○ | ○ | ○ | ○ | 50 |
Structure: double acting single rod
Model: standard switch set 10Z-3
Unit: mm
| Inner Diameter | Cylinder stroke (mm) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 25 | 30 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | Stroke Limit | |
| ⌀20 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | — | — | 900 |
| ⌀25 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | — | — | 900 |
| ⌀32 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | — | — | 900 |
| ⌀40 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | 900 |
| ⌀50 | — | ○ | — | ○ | ○ | ○ | — | ○ | — | ○ | ○ | ○ | ○ | ○ | ○ | ○ | 900 |
| ⌀63 | — | ○ | — | ○ | ○ | ○ | — | ○ | — | ○ | ○ | ○ | ○ | ○ | ○ | ○ | 900 |
For the switch set, refer to the switch mountable minimum cylinder stroke table.

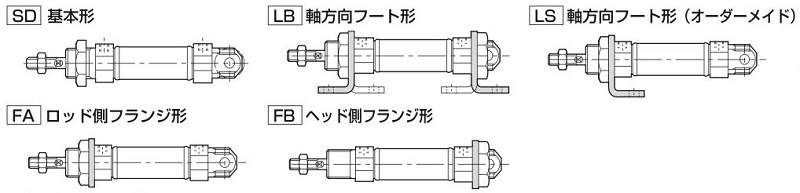

Inner Diameter: ø12, ø16 support model
Inner Diameter: ø20, ø25, ø32, ø40, ø50, ø63 support model
