General Type, Slim Cylinder, DA/DV/SA Series
Brand :
KOGANEI
Caution
- The product images are representative only. Please refer to the catalog for shape details.
- [Information About the End of Sales]Part number: DA25 × 250-CS2B2, DA32 × 100-CS3B1, DA32 × 25-1-CS3B2, DA32 × 50-CS4B2, DA40 × 150-1-CS3B1, DAL20 × 350-1-CS3MA1, KOG1DV, KOG1DAT will be discontinued in April 2022.
Product Description
Slim cylinder of ø16 to 63 (cylinder diameter 16 to 63 mm).
[Features]
·High quality and highly reliable design using stainless steel tube is standard for compact and medium cylinders
·A wide variety of lineup of 21 variations in all
·Supports high-speed operation of 700 mm/s (ø50, 63 (cylinder diameter 50, 63 mm) is 500 mm/s)
·Uses durable piston packing
·Sensor switch can be retrofitted
·High mounting accuracy and easy mounting work
[Applications]
・ Compatible with pneumatic equipment and production lines in all industries
Drawing
Basic type, DV, cylinder diameter × stroke
Foot type, DV, cylinder diameter × stroke -1
Flange type, DV, cylinder diameter × stroke -3
Head side trunnion type, DV, cylinder diameter × stroke -11T
Rod side trunnion type, DV, cylinder diameter × stroke -12
Basic type, DVL, Cylinder diameter × stroke
Foot type, DVL, Cylinder diameter × stroke -1
Flange type, DVL, Cylinder diameter × stroke -3
Head side trunnion type, DVL, cylinder diameter × stroke -11T
Basic type DA cylinder diameter × stroke
Product Specifications
Slim Valpack Cylinder
External appearance of standard rod cylinder, square rod cylinder
Product Specifications
| Items | Cylinder diameter mm | |||||
|---|---|---|---|---|---|---|
| 20 | 25 | 32 | 40 | 40 | ||
| Mounting solenoid valve series | ||||||
| 062 series | 125 series | |||||
| Operation type | Double acting type | |||||
| Operating fluid | Air | |||||
| Mounting Type | Basic type, foot type, flange type, rod trunnion type, head trunnion type | |||||
| Operating pressure range | Air cylinder | 0.04 to 0.9 | ||||
| MPa | Square rod cylinder (ø25/ø40 only) | 0.1 to 0.9 | ||||
| Guaranteed pressure resistant | MPa | 1.32 | ||||
| Operating temperature range | °C | 0 to 60 | ||||
| Operating speed range | mm/s | 30 to 800 | 30 to 500 | 30 to 300 | 30 to 210 | 30 to 450 |
| Speed controller | Exhaust throttle valve (both directions) as standard equipment | |||||
| Cushion | Rigid type (rubber bumper method) | |||||
| Lubrication | Not required | Required (Turbine oil type 1 "ISO VG32" equivalent) | ||||
| Piping connection port diameter | Rc | 1/4 | ||||
Product Specifications
| Items | Series | ||
|---|---|---|---|
| 062 series | 125 series | ||
| Solenoid specifications | |||
| Single | Single | ||
| Type | |||
| VPS062-4E1-70 | VPS125-4E1-70 | ||
| Operation type | Direct operation | ||
| Number of positions / ports | 2 positions / 5 ports | ||
| Effective cross-sectional area | mm^2 | 1.8 | 3.5 |
| Piping connection port diameter | Rc | 1/4 | |
| Lubrication | Not required | Required (Turbine oil type 1 "ISO VG32" equivalent) | |
| Operating pressure range | MPa | 0 to 0.9 (In the case of a solenoid valve alone) | |
| Guaranteed pressure resistant | MPa | 1.32 | |
| Operating temperature range | °C | 0 to 60 | |
| Impact resistance m/s^2 | Horizontal direction | 980.7 | |
| Axial direction | 980.7 | ||
| Mounting Direction | Free | ||
| Maximum operating frequency | Hz | 5 | |
Product Specifications
| Items | Rated Voltage | ||||||
|---|---|---|---|---|---|---|---|
| 100 V AC | 200 V AC | 24 V DC | |||||
| Operating Voltage Range | V | 90 to 110 (100±10%) | 180 to 220 (200±10%) | 21.6 to 26.4 (24±10%) | |||
| Current (When rated voltage is applied) | Frequency | Hz | 50 | 60 | 50 | 60 | — |
| Current value mA (r.m.s) | 140 | 130 | 70 | 65 | 400 | ||
| Insulation resistance | MΩ | 100 or More | |||||
| Connection method and lead length | Grommet type: Approx. 300 mm | ||||||
| Lead Wire Color | Yellow/black | White/black | Red/black | ||||
Internal structure and name of each part
Piston rod, oil-impregnated bushing, rod packing, rod cover, cylinder tube, bumper, piston, magnet, piston packing, head cover
Square rod cylinder
Handling of speed controller
When the adjusting screw is tightened, the discharge air is throttled and the piston speed slows down
Procedure for changing to pull type when energized
Remove the nut and washer, pull the valve out of the cylinder, rotate it 180° and reassemble it back together
Standard table

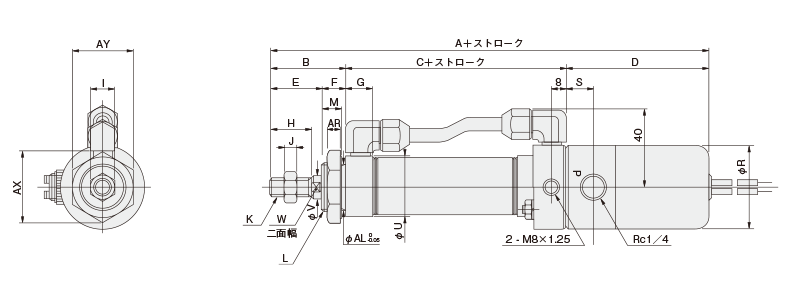

Basic type, DV, cylinder diameter × stroke
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 196 | 35 | 88 | 73 | 23 | 12 | 16 | 15 | 12 | 5 | M8 × 1 | M20 × 1.5 |
| 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 14 | 6 | M10 × 1.25 | M22 × 1.5 | |
| 32 | 206 | 45 | 88 | 73 | 31 | 14 | 16 | 23 | 14 | 6 | M10 × 1.25 | M27 × 2 | |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 |
| Mounting solenoid valve | Diameter | M | R | S | U | V | W | AR | AX | AY | AL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 10 | 42 | 14.5 | 27 | 8 | 6 | 7.5 | 31.2 | 27 | 20 |
| 25 | 12 | 42 | 14.5 | 29 | 10 | 8 | 9.5 | 34.6 | 30 | 22 | |
| 32 | 12 | 42 | 14.5 | 35 | 12 | 10 | 9.5 | 41.6 | 36 | 27 | |
| 40 | 12 | 42 | 14.5 | 41.6 | 16 | 14 | 9.5 | 47.3 | 41 | 33 | |
| 125 series | 40 | 12 | 46 | 16.5 | 41.6 | 16 | 14 | 9.5 | 47.3 | 41 | 33 |

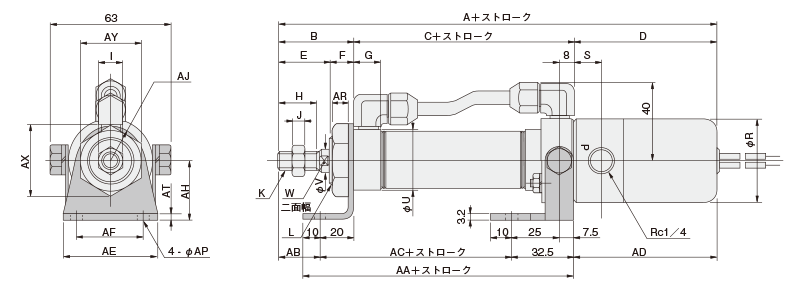

Foot type, DV, cylinder diameter × stroke -1
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | R | S | U | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 196 | 35 | 88 | 73 | 23 | 12 | 16 | 15 | 12 | 5 | M 8 × 1 | 42 | 14.5 | 27 | 8 | 6 |
| 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 14 | 6 | M10 × 1.25 | 42 | 14.5 | 29 | 10 | 8 | |
| 32 | 206 | 45 | 88 | 73 | 31 | 14 | 16 | 23 | 14 | 6 | M10 × 1.25 | 42 | 14.5 | 35 | 12 | 10 | |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | 42 | 14.5 | 41.6 | 16 | 14 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | 46 | 16.5 | 41.6 | 16 | 14 |
| Mounting solenoid valve | Diameter | AA | AB | AC | AD | AE | AF | AH | AJ | AP | AR | AT | AX | AY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 117.5 | 15 | 75 | 73.5 | 55 | 40 | 25 | 15.5 | 6.8 | 7.5 | 3.2 | 31.2 | 27 |
| 25 | 117.5 | 20 | 75 | 73.5 | 55 | 40 | 30 | 17 | 6.8 | 9.5 | 3.2 | 34.6 | 30 | |
| 32 | 117.5 | 25 | 75 | 73.5 | 55 | 40 | 35 | 20 | 6.8 | 9.5 | 3.2 | 41.6 | 36 | |
| 40 | 122.5 | 25 | 80 | 73.5 | 75 | 55 | 40 | 23.5 | 9 | 9.5 | 4 | 47.3 | 41 | |
| 125 series | 40 | 122.5 | 25 | 80 | 83.5 | 75 | 55 | 40 | 23.5 | 9 | 9.5 | 4 | 47.3 | 41 |
Flange type, DV, cylinder diameter × stroke -3
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | R | S | U | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 196 | 35 | 88 | 73 | 23 | 12 | 16 | 15 | 12 | 5 | M 8 × 1 | 42 | 14.5 | 27 | 8 | 6 |
| 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 14 | 6 | M10 × 1.25 | 42 | 14.5 | 29 | 10 | 8 | |
| 32 | 206 | 45 | 88 | 73 | 31 | 14 | 16 | 23 | 14 | 6 | M10 × 1.25 | 42 | 14.5 | 35 | 12 | 10 | |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | 42 | 14.5 | 41.6 | 16 | 14 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | 46 | 16.5 | 41.6 | 16 | 14 |
| Mounting solenoid valve | Diameter | AR | AX | AY | BB | BC | BD | BE | BF | BP |
|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 7.5 | 31.2 | 27 | 30.5 | — | — | — | — | — |
| 25 | 9.5 | 34.6 | 30 | 35.5 | — | — | — | — | — | |
| 32 | 9.5 | 41.6 | 36 | 40.5 | 45 | 20 | 80 | 60 | 6.8 | |
| 40 | 9.5 | 47.3 | 41 | 40.5 | 50 | 30 | 100 | 80 | 9 | |
| 125 series | 40 | 9.5 | 47.3 | 41 | 40.5 | 50 | 30 | 100 | 80 | 9 |

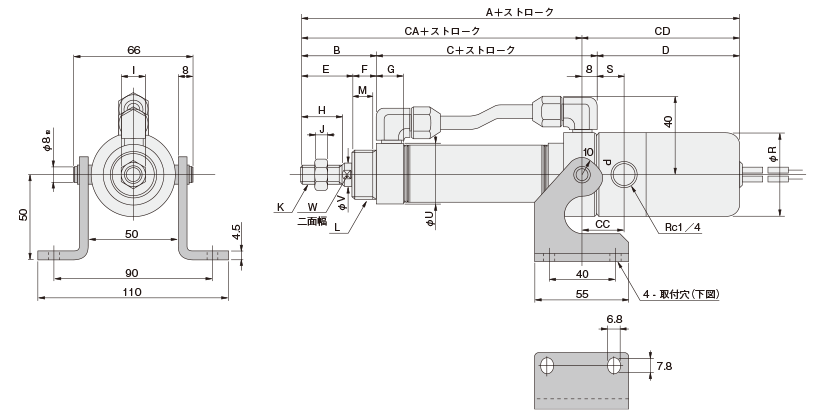

Head side trunnion type, DV, cylinder diameter × stroke -11T
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 196 | 35 | 88 | 73 | 23 | 12 | 16 | 15 | 12 | 5 | M8 × 1 | M20 × 1.5 |
| 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 14 | 6 | M10 × 1.25 | M22 × 1.5 | |
| 32 | 206 | 45 | 88 | 73 | 31 | 14 | 16 | 23 | 14 | 6 | M10 × 1.25 | M27 × 2 | |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 |
| Mounting solenoid valve | Diameter | M | R | S | U | V | W | CA | CC | CD |
|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 10 | 42 | 14.5 | 27 | 8 | 6 | 115 | 22.5 | 81 |
| 25 | 12 | 42 | 14.5 | 29 | 10 | 8 | 120 | 22.5 | 81 | |
| 32 | 12 | 42 | 14.5 | 35 | 12 | 10 | 125 | 22.5 | 81 | |
| 40 | 12 | 42 | 14.5 | 41.6 | 16 | 14 | 130 | 22.5 | 81 | |
| 125 series | 40 | 12 | 46 | 16.5 | 41.6 | 16 | 14 | 130 | 24.5 | 91 |

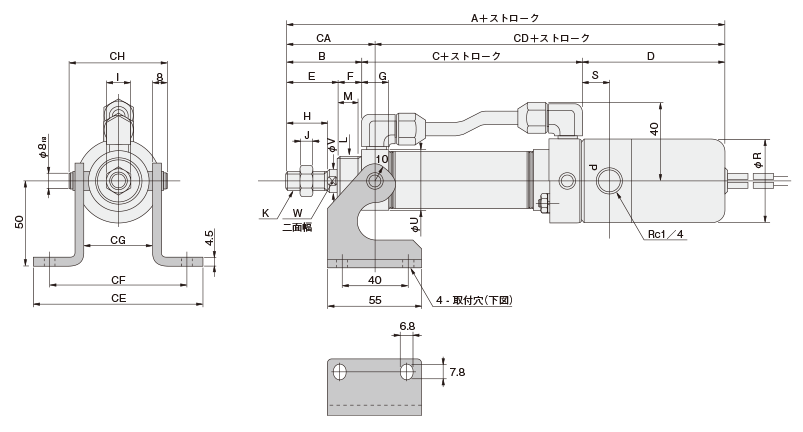

Rod side trunnion type, DV, cylinder diameter × stroke -12
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 196 | 35 | 88 | 73 | 23 | 12 | 16 | 15 | 12 | 5 | M8 × 1 | M20 × 1.5 |
| 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 14 | 6 | M10 × 1.25 | M22 × 1.5 | |
| 32 | 206 | 45 | 88 | 73 | 31 | 14 | 16 | 23 | 14 | 6 | M10 × 1.25 | M27 × 2 | |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 |
| Mounting solenoid valve | Diameter | M | R | S | U | V | W | CA | CD | CE | CF | CG | CH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 20 | 10 | 42 | 14.5 | 27 | 8 | 6 | 43 | 153 | 92 | 72 | 32 | 48 |
| 25 | 12 | 42 | 14.5 | 29 | 10 | 8 | 48 | 153 | 94 | 74 | 34 | 50 | |
| 32 | 12 | 42 | 14.5 | 35 | 12 | 10 | 53 | 153 | 100 | 80 | 40 | 56 | |
| 40 | 12 | 42 | 14.5 | 41.6 | 16 | 14 | 53 | 158 | 107 | 87 | 47 | 63 | |
| 125 series | 40 | 12 | 46 | 16.5 | 41.6 | 16 | 14 | 53 | 168 | 107 | 87 | 47 | 63 |

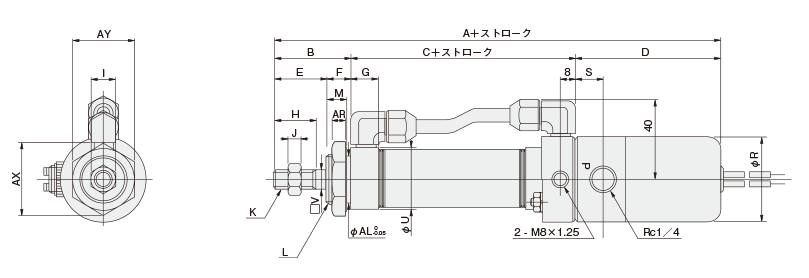

Basic type, DVL, Cylinder diameter × stroke
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 12 | 5 | M8 × 1 | M22 × 1.5 |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 |
| Mounting solenoid valve | Diameter | M | R | S | U | V | AR | AX | AY | AL |
|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 25 | 12 | 42 | 14.5 | 29 | 7.4 | 9.5 | 34.6 | 30 | 22 |
| 40 | 12 | 42 | 14.5 | 41.6 | 13 | 9.5 | 47.3 | 41 | 33 | |
| 125 series | 40 | 12 | 46 | 16.5 | 41.6 | 13 | 9.5 | 47.3 | 41 | 33 |

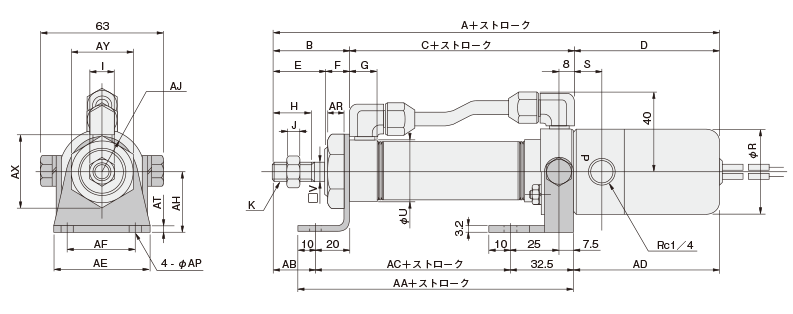

Foot type, DVL, Cylinder diameter × stroke -1
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | R | S | U | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 12 | 5 | M8 × 1 | 42 | 14.5 | 29 | 7.4 |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | 42 | 14.5 | 41.6 | 13 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | 46 | 16.5 | 41.6 | 13 |
| Mounting solenoid valve | Diameter | AA | AB | AC | AD | AE | AF | AH | AJ | AP | AR | AT | AX | AY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 25 | 117.5 | 20 | 75 | 73.5 | 55 | 40 | 30 | 17 | 6.8 | 9.5 | 3.2 | 34.6 | 30 |
| 40 | 122.5 | 25 | 80 | 73.5 | 75 | 55 | 40 | 23.5 | 9 | 9.5 | 4 | 47.3 | 41 | |
| 125 series | 40 | 122.5 | 25 | 80 | 83.5 | 75 | 55 | 40 | 23.5 | 9 | 9.5 | 4 | 47.3 | 41 |

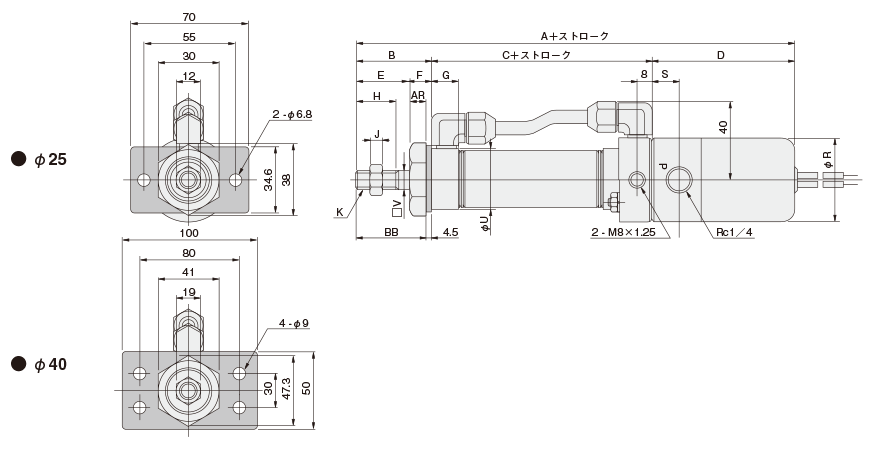

Flange type, DVL, Cylinder diameter × stroke -3
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | J | K | R | S | U | V | AR | BB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 5 | M8 × 1 | 42 | 14.5 | 29 | 7.4 | 9.5 | 35.5 |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 8 | M14 × 1.5 | 42 | 14.5 | 41.6 | 13 | 9.5 | 40.5 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 8 | M14 × 1.5 | 46 | 16.5 | 41.6 | 13 | 9.5 | 40.5 |

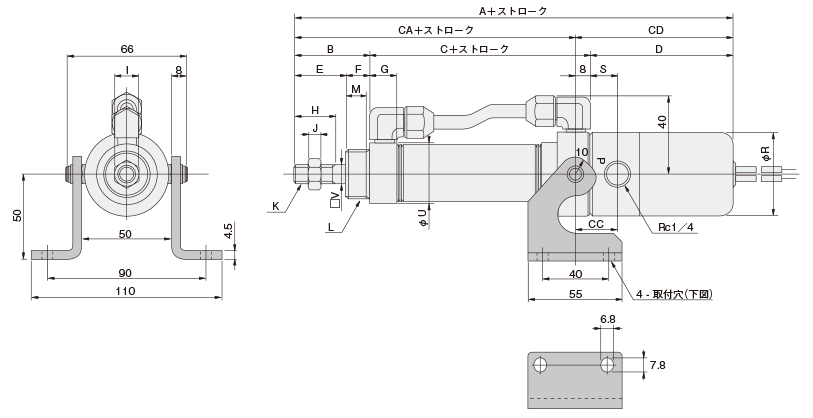

Head side trunnion type, DVL, cylinder diameter × stroke -11T
| Mounting solenoid valve | Diameter | A | B | C | D | E | F | G | H | I | J | K | L | M | R | S | U | V | CA | CC | CD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 062 series | 25 | 201 | 40 | 88 | 73 | 26 | 14 | 16 | 18 | 12 | 5 | M8 × 1 | M22 × 1.5 | 12 | 42 | 14.5 | 29 | 7.4 | 120 | 22.5 | 81 |
| 40 | 211 | 45 | 93 | 73 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 | 12 | 42 | 14.5 | 41.6 | 13 | 130 | 22.5 | 81 | |
| 125 series | 40 | 221 | 45 | 93 | 83 | 31 | 14 | (14.5) | 23 | 19 | 8 | M14 × 1.5 | M33 × 2 | 12 | 46 | 16.5 | 41.6 | 13 | 130 | 24.5 | 91 |
