For General Piping, Mini-Type Tube Fitting, Union Wye
Caution
Product Description
A quick connect fitting that enables easy attachment and detachment of tubes despite its ultra-compact size.
[Features]
· Ultra-compact quick connect fitting for general pneumatic piping.
· Now 40% smaller by volume compared to standard type.
· The oval release ring makes it easy to disconnect the tube.
· The ø1.8 (diameter 1.8 mm) type is the industry's smallest single-action type.
Outline drawing
Outline drawing
Outline drawing
Outline drawing
Now 40% Smaller By Volume Compared To Standard Type
Appearance of Mini Type PY
Dimensional drawing of Mini Type PY
Dimensional drawing of Mini Type PY
Specifications
| Usable Fluids | Air |
|---|---|
| Maximum Operating Pressure | 1.0 MPa |
| Operating Vacuum Pressure | -100 kPa |
| Operating Temperature Range | 0 to 60℃ (no freezing) |
Tube Size
| Millimeter Size (mm) | ø1.8, ø2, ø3, ø4, ø6 |
|---|---|
| Inch Size | ø1/8, ø5/32, ø1/4 |
Thread Size
| Metric Male Thread | M3 × 0.5, M5 × 0.8, M6 × 1 |
|---|---|
| Taper Pipe Male Thread | R1/8, R1/4, R3/8 |
| Metric Female Thread | M3 × 0.5, M5 × 0.8 |

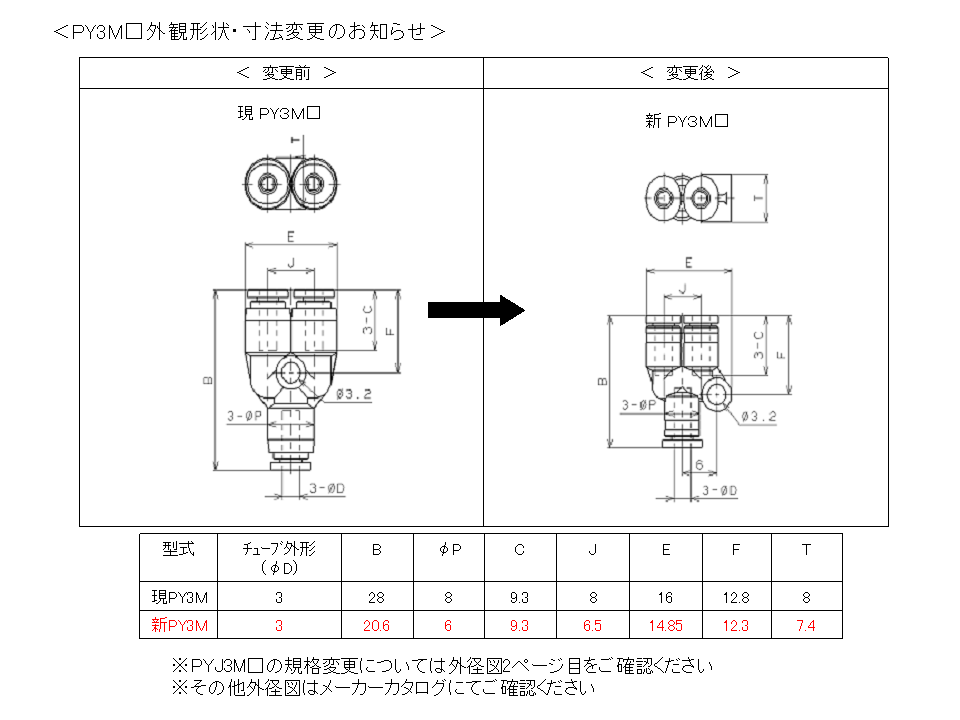

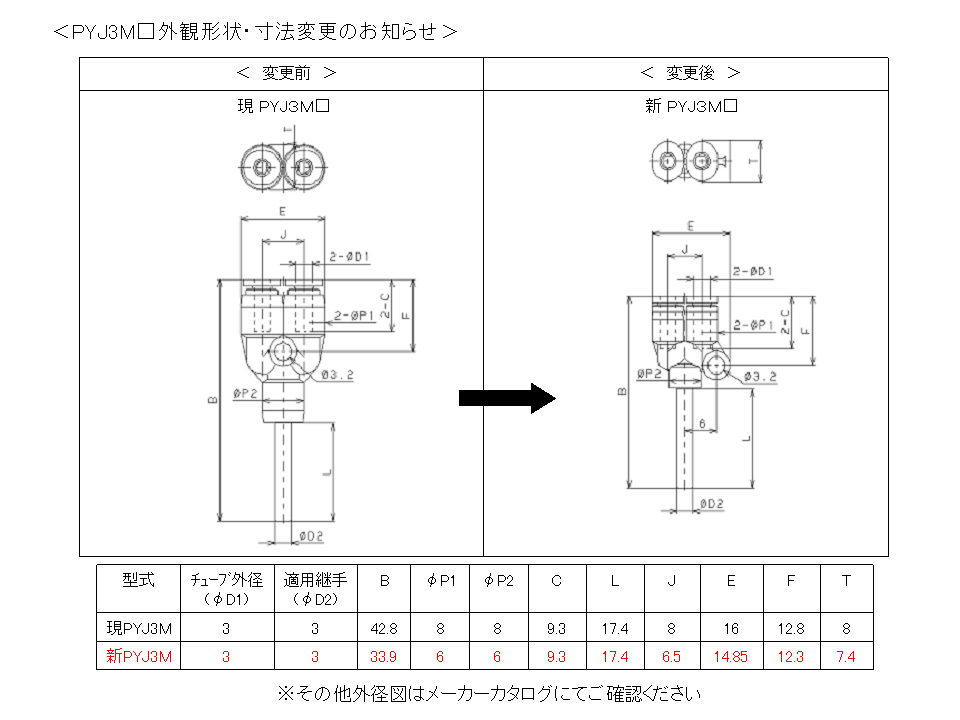

Dimensional drawing of current PY3M
Dimensional drawing of new PY3M
| Format | Tube Outer Diameter (øD) | B | øP | C | J | E | F | T |
|---|---|---|---|---|---|---|---|---|
| Current PY3M | 3 | 28 | 8 | 9.3 | 8 | 16 | 12.8 | 8 |
| New PY3M | 3 | 20.6 | 6 | 9.3 | 6.5 | 14.85 | 12.3 | 7.4 |
| Format | Tube Outer Diameter øD | B | øP | Tube End C | J | F1 | F2 | T | X (oX) | Y | Effective Cross-Sectional Area (mm2) | Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PY180M | 1.8 | 19.5 | 6 | 8.4 | 6.5 | 11.8 | 6 | 7.4 | 4.8 | - | 0.4 | 1.7 |
| PY2M | 2 | 19.5 | 6 | 8.4 | 6.5 | 11.8 | 6 | 7.4 | 4.8 | - | 0.6 | 1.7 |
| PY3M | 3 | 20.6 | 6 | 9.3 | 6.5 | 12.3 | 6 | 7.4 | 7 | 6 | 1.6 | 1.8 |
| PY4M | 4 | 27.6 | 8 | 11 | 8 | 12.6 | - | 10.2 | 9.8 | 7.8 | 2.3 | 3.5 |
| PY6M | 6 | 31 | 10.5 | 11.6 | 10.5 | 14 | - | 10.5 | 11.8 | 9.8 | 6.8 | 5.5 |
| PY1/8M | 1/8 | 27.6 | 8 | 11 | 8 | 12.6 | - | 10.2 | 9.8 | 7.8 | 1.1 | 3.7 |
| PY5/32M | 5/32 | 27.6 | 8 | 11 | 8 | 12.6 | - | 10.2 | 9.8 | 7.8 | 2.3 | 3.5 |
| PY1/4M | 1/4 | 31.4 | 10.5 | 11.4 | 10.5 | 14.2 | - | 10.5 | 11.8 | 9.8 | 9.6 | 5.3 |
Unit: mm
Comparison between Mini and Standard
Easy attachment and detachment of tubes despite ultra-compact size. The release ring features an oval shape.
Since its initial launch, the Mini has featured an easy-to-use oval-shaped release ring.
The Standard features a circular release ring, while the Mini's is oval-shaped. This feature is intended to improve ease-of-use.
We offer one-touch fittings for ultra-thin tube piping.
The sizes ø1.8 (diameter 1.8 mm) and ø2 mm (diameter 2 mm) are ideal for piping to small actuators, etc.
