High Mount LMY Series
Caution
Product Description
A mount that prevents vibration, shock and noise of machine or equipment, with major damping effect through use of high-damping rubber.
[Features]
·By employing high damping rubber, damping performance is added to the conventional anti-vibration performance.
·An LMY type handle also facilitates level adjustment.
·With a wide product line, either vibration resistance or stability performance can be selected.
·Use of high damping rubber provides damping characteristics.
·Levels can be adjusted by turning the handle.
·Layouts can be changed according to the environment since no base bolting is required.
[Applications]
·For anti-vibration of machine tools such as injection machines and presses etc.
High Mount LMY Series specifications
Dimensional drawing of LMY series
Dimensional drawing of LMY series
Features
- Size: 4 types
- Natural frequency: 18 to 26 Hz
- Load Range: 1,400 to 18,000 N
- High damping rubber employed
- Anti-vibration rubber: HDR rubber
- Level washer: SS400 bright chromate plating
- Housing: FC250 yellow (Melamine baked coating)
- Bolts: SS400 bright chromate plating
(The level of LMY-16 and LMY-20 cannot be increased when installed at an angle. Please use it for fine adjustment after jacking up.)
| Handle type | Handle type | Minimum load N | Maximum Load N | Spring Constant N/mm | W | (H) | d | L | TH | Mountable Bed thickness |
|---|---|---|---|---|---|---|---|---|---|---|
| Level adjustment amount | ||||||||||
| LMY-11 | 1400 | 2800 | 3700 | 110 | 47 | +15 | M12 | 85 | 115 | Up to 45 |
| * 200 | 230 | Up to 160 | ||||||||
| LMY-13 | 2800 | 6000 | 7400 | 130 | 51 | +20 | M16 | 110 | 141 | Up to 60 |
| * 200 | 231 | Up to 150 | ||||||||
| LMY-16 | 6000 | 12000 | 14700 | 160 | 65 | +24 | M16 | 110 | 151 | Up to 55 |
| * 200 | 241 | Up to 145 | ||||||||
| LMY-20 | 12000 | 18000 | 23000 | 200 | 76 | +27 | M20 | 130 | 177 | Up to 65 |
| * 220 | 267 | Up to 155 |
*) * The bolt lengths marked are semi-standard.
Units: mm
Features
Features of Hi-Mount

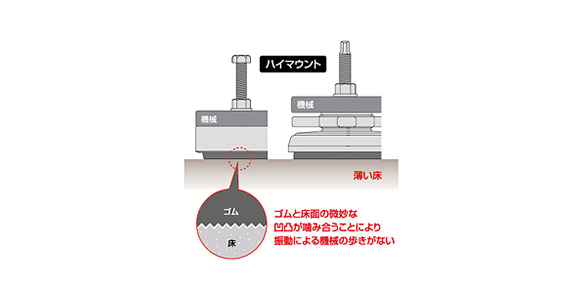

Because the slight unevenness on the rubber and the floor surface engages each other, machine does not move due to vibration
Other companies' products (Anchor fixed)
Cannot be easily moved because base bolting work is required
Levels can be adjusted by turning the handle
Can be installed according to the slope of the floor (±3°)
Behind-the-scene story of the development
A handle function has been added to "Hi-Mount KM Series," which was the former product lineup; therefore, leveling operation can be performed easily.
