V-Block Type B
Brand :
MISUMI
Caution
Product Description
Select from 2 types; machined finish and high-accuracy ground finish.
Abundant sizes are also available.
Providing standard products at these prices.
Specifications
Model Number
VBB-S (Machine Finish) / VBB (Grinding Finish)
1 pack 2 pieces

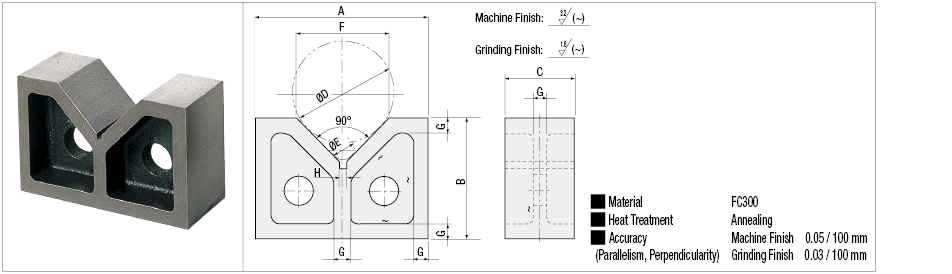

| No. | A x B x C | D | E | F | G | H | Mass (kg) |
| 50 | 51 x 32 x 24 | 33 | 7 | 25 | 7 | 4 | 0.4 |
| 75 | 76 x 60 x 32 | 60 | 7 | 45 | 7 | 4 | 1.5 |
| 100 | 102 x 67 x 41 | 75 | 10 | 55 | 10 | 5 | 2.5 |
| 125 | 127 x 79 x 51 | 82 | 10 | 60 | 11 | 5 | 3.4 |
| 150 | 152 x 89 x 63 | 110 | 10 | 80 | 13 | 5 | 8.1 |
| 200 | 203 x 140 x 102 | 158 | 11 | 114 | 15 | 6 | 22.2 |
