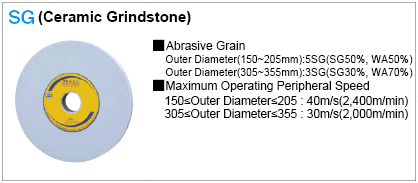

SG Grindstone for Flat Surfaces No. 1 Flat

Specifications

Model Number
SG

Outer Diameter D	Thickness T	Hole Diameter H	Particle Size (#) (selection)								Stocked Item / Non-Stocked Item
			46	60	80	100	120	150	180	220
			Degree of Coupling (selection)
150	6.4	32	-	-	-	-	-	-	-	I K	Stocked Item
	13	12.7	-	K	K	-	-	-	-	-
	13	31.75	-	K	K	-	-	-	-	-
180	6.4	31.75	K	J K	J K	J K	J K	J K	I J K	I J K
	10	31.75	J K	J K	J K	K	K	-	-	-
	13	31.75	H I J K	H I J K	H I J K	J K	K	-	-	-
	16	31.75	J K	J K	K	-	-	-	-	-
	19	31.75	J K	J K	K	-	-	-	-	-
205	6.4	31.75	-	K	K	K	K	K	-	J K
	13	31.75	H I J K	H I J K	H I J K	J K	J K	-	-	-
	19	31.75	H I J K	H I J K	H I J K	K	K	-	-	-
	19	50.8	H I J K	H I J K	J K	-	-	-	-	-
305	25	76.2	-	I J	-	-	-	-	-	-	Non-Stocked Item
	25	127	-	J	J	-	-	-	-	-
	32	76.2	I J	G I J	-	-	-	-	-	-
	32	127	G J	G	-	-	-	-	-	-
	38	76.2	G J	I	-	-	-	-	-	-
	38	127	G H I	G H I J	H J	-	-	-	-	-
355	38	127	G H I J	G H I J	-	-	-	-	-	-
	50	127	G I	J	-	-	-	-	-	-

[ ! ] For the degree of coupling, please select one of G / H / I / J / K from each corresponding column. (A Soft Z Hard)
Here for reference information for selecting grindstones
Here for a selection table of general grindstones for flat surfaces
Here for troubleshooting

More Information

● For Coarse to Finish Grinding of Hardened Steel
● The number of dressing will be drastically decreased with the effects of SG abrasive grains. It also has excellent sharpness.
