Carbide Roughing Alterations End Mill
Caution
Product Description
A roughing end mill with 4 simultaneous locations that can be specified
Specifications
■ Table of Standards
Shape Specification for Blade Edge -CR
| Flute Diameter D (Selection) | -CR 0.1 mm Increment Designation |
| 8 ~ 10 | 1.0 ~ 3.0 |
| 11 ~ 16 8 ~ 10 11 ~ 16 18 ~ 20 | |
| 18 ~ 20 |
[ ! ]For the standards for the blade length (ℓ) and total length (L), refer to the page for the relevant model number.
[ ! ]The blade length (ℓ) and total length (L) are shorter by approximately D x 0.5 (up to 5 mm).

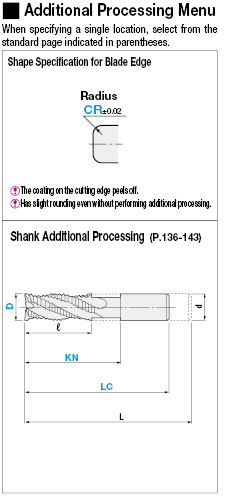

Shank Additional Processing -KN / -LC
| Flute Diameter D | Length Under Neck Specification -KN 1 mm Increment Designation | Total Length Specification -LC 1 mm Increment Designation |
| 5 | KN ≥ ℓ + 5 and KN ≤ L - 3d and KN ≤ ℓ + 50 | LC ≥ ℓ + 10 + 3d |
| 6 | ||
| 7 | ||
| 8 | ||
| 9 | ||
| 10 | ||
| 11 | ||
| 12 | ||
| 13 | ||
| 14 | ||
| 16 | ||
| 18 | ||
| 20 |
[ ! ]For the standards for the blade length (ℓ), total length (L), and shank diameter (d), refer to the page for the relevant model number.
[ ! ]When used together, specify the length under neck (KN) and the total length (LC) such that they are in the range given by LC ≥ KN + 3d + 5.
[ ! ]Specifying the length under neck (KN) indicates that the shank clearance diameter will be the blade diameter less 0.2 ~ 0.5 mm.
Specifications/Overview

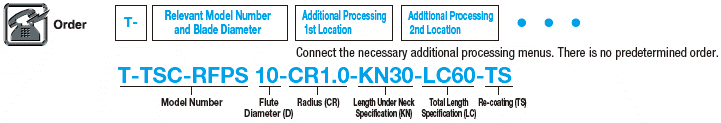

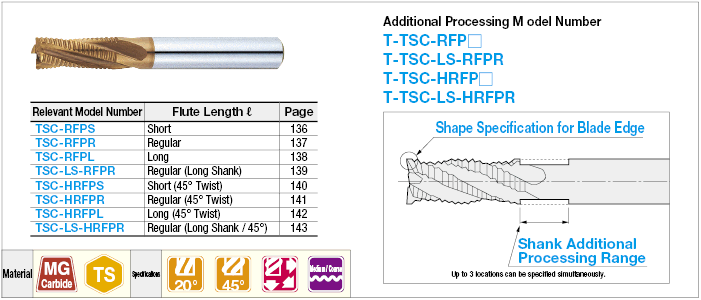

| Applicable Model Number | Blade length l | |
| TSC-RFPS | Short | Click here for product details |
| TSC-RFPR | Regular | Click here for product details |
| TSC-RFPL | Long | Click here for product details |
| TSC-LS-RFPR | Regular (Long Shank) | Click here for product details |
| TSC-HRFPS | Short (45° Torsion) | Click here for product details |
| TSC-HRFPR | Regular (45° Torsion) | Click here for product details |
| TSC-HRFPL | Long (45° Torsion) | Click here for product details |
| TSC-LS-HRFPR | Regular (Long Shank 45°) | Click here for product details |
