High-Speed Steel Roughing End Mill, Long, Center Cut / Non-Coated Model
Brand :
MISUMI
Caution
Product Description
[Features]
·High-speed steel roughing uncoated long flute length type with optimum pitch width for coarse finishing
·Suitable for deep cavity milling
·Can be regrinded. Please refer to the page dedicated to "regrinding service" for usage procedures, range of services, prices, etc.

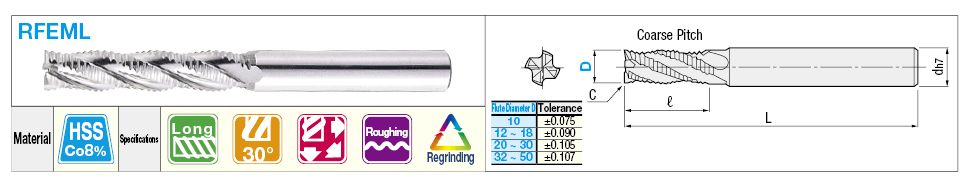

Specifications
Model Number
RFEML
| Outer Diameter D | Flute Length ℓ | Overall Length L | Under Neck Angle θ | Shank Diameter d | Corner Chamfering C | Number of Flutes Z |
| 10 | 45 | 95 | — | 10 | — | 4 |
| 12 | 53 | 110 | — | 12 | 0.2 ~ 0.5 | 4 |
| 14 | 53 | 110 | — | 12 | 0.2 ~ 0.5 | 4 |
| 15 | 53 | 110 | — | 12 | 0.2 ~ 0.5 | 4 |
| 16 | 63 | 123 | — | 16 | 0.3 ~ 0.7 | 4 |
| 18 | 63 | 123 | — | 16 | 0.3 ~ 0.7 | 4 |
| 20 | 75 | 141 | — | 20 | 0.3 ~ 0.7 | 4 |
| 22 | 75 | 141 | — | 20 | 0.3 ~ 0.7 | 4 |
| 25 |
90 | 166 | — | 25 | 0.3 ~ 0.7 | 4 |
| 28 |
90 | 166 | — | 25 | 0.3 ~ 0.7 | 5 |
| 30 |
90 | 166 | — | 25 | 0.3 ~ 0.7 | 5 |
| 32 |
106 | 186 | — | 32 | 0.3 ~ 0.7 | 6 |
| 35 |
106 | 186 | — | 32 | 0.3 ~ 0.7 | 6 |
| 40 |
125 | 205 | — | 32 | 0.3 ~ 0.7 | 6 |
| 45 |
125 | 227 | — | 42 | 0.3 ~ 0.7 | 6 |
| 50 |
150 | 252 | — | 42 | 0.3 ~ 0.7 | 6 |
For Cutting Conditions, Refer to >>Click here.
