Carbide Radius End Mill for Aluminum Machining, 3-Flute / Stub, Long Shank Model
Brand :
MISUMI
Caution
Product Description
Comes with the rounded edge that suppresses machining streaks in standing-wall multi-stage machining

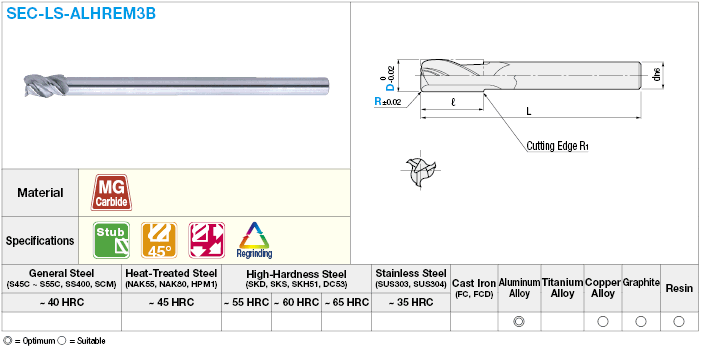

Specifications
| Model Number | Flute Length ℓ | Overall Length L | Shank Diameter d | ||
| Outer Diameter D | Radius R | ||||
| SEC-LS-ALHREM3B | 5 | 0.5 | 9 | 80 | 4 |
| 6 | 0.5 | 9 | 80 | 4 | |
| 8 | 1 | 12 | 100 | 6 | |
| 10 | 1 | 15 | 130 | 8 | |
| 12 | 1 | 18 | 150 | 10 | |
| 14 | 1.5 | 21 | 160 | 12 | |
| 18 | 2 | 27 | 180 | 16 | |
| 22 | 2 | 33 | 200 | 20 |
For Cutting Conditions, Refer to >>Click here.
More Information
●An end mill with a square 3-flute long neck bit with added radius for aluminum.
●It has a sharp cutting edge that prevents the built-up edge that is unique to aluminum.
●The unique tip pocket shape allows for the cutting of grooves to be achieved with 2 flutes in parallel at the cutting depth.
●It has a 3-flute shape to be strong against chatter and is capable of high-speed, high-efficiency machining of grooves.
●The radial blade tip is also useful to prevent chipping.
●The rounded edge of the blade rear end suppresses machining streaks caused by the multi-stage machining of side surfaces.
