Cable With PCS Connector, EMI Countermeasure Type (With Honda Tsushin Kogyo Connector)
Brand :
MISUMI
Caution
Product Description
Hood uses a small half-pitch connector
● Uses Honda Tsushin Kogyo PCS series half pitch connectors.
● Cable made by Keyence Corporation that is compatible with FA devices such as programmable displays etc.
· Does not fit with PCR connectors. Please be careful.
· Sheath peeling length can be designated as alteration service only for those with terminals or mark tubes.
· Specifying the length of the connector side ground cable is not supported.
· When using with Keyence Corporation programmable displays, you need to provide a custom number.
Wiring and Wire Color Page
>>Click here
Component Page
>>Click here
Specifications
| Specified Length (m) | ~ 0.9 | 1 ~ 4 | 4.1 ~ 50 |
| Tolerance | +20mm | +50mm | + 3% of Specified Length |
| Connector Type | Shape Specification Type | Outline Image Drawing (Unit: mm) | Cable Type | Number of Cores | Specified Length (m) |
| NPCS With EMI Countermeasure Metal Hood Honda Tsushin Kogyo Co., LTD. | S (Female) |  |   | 20 | 0.2 ~ 50 |
| 28 | |||||
| 36 | |||||
| 50 | |||||
| 68 | |||||
| 96 | |||||
| SS (Female / Female) |  | 20 | |||
| 28 | |||||
| 36 | |||||
| 50 | |||||
| 68 | |||||
| 96 | |||||
| ST (Female / Loose Wires) With Pin No. Insertion Mark Tube |  | 20 | Can be specified by 0.1m increments | ||
| 28 | |||||
| 36 | |||||
| 50 | |||||
| 68 | |||||
| 96 | |||||
| SY (Female / Y Terminal) With Pin No. Insertion Mark Tube |  | 20 | |||
| 28 | |||||
| 36 | |||||
| 50 | |||||
| 68 | |||||
| 96 |
| Connector Type | Shape Specification Type | Outline Image Drawing | Cable Type | Number of Cores | Specified Length (m) |
| NPCS With EMI Countermeasure Metal Hood Honda Tsushin Kogyo Co., LTD. | SD9P (PCS 20-core Female / D-sub 9-core Male) |  |   | 20 | 0.2 ~ 50 |
| SD9S (PCS 20-core Female / D-sub 9-core Female) |  | 20 | |||
| SD25P (PCS 20-core Female / D-sub 25-core Male) |  | 20 | |||
| Can be specified by 0.1 m increments | |||||
| SD25S (PCS 20-core Female / D-sub 25-core Female) |  | 20 | |||
| SMD6 (PCS 20-core Female / MiniDIN 6-core Male) |  |  | 20 | 0.2 ~ 15 | |
| SMD8 (PCS 20-core Female / MiniDIN 8-core Male) |  | 20 | |||
| Can be specified by 0.1 m increments | |||||
| SRJ (PCS 20-core Female / RJ11 Modular) |  |  | 20 |
·When using with Keyence Corporation programmable displays, you need to provide a custom number.
Overview
● PCS Series is a miniaturized, high density interface with diverse variations, and their pitch between contacts is designed to be 1.27 mm in order to support miniaturized electronics.
● Robust structure for interface
● Quick-lock with the metal spring lock
● Also has insertion error prevention accessory.
● Designed for smooth insertion / extraction even with large core numbers
● Quick-lock with the metal spring lock
● Also has insertion error prevention accessory.
● Designed for smooth insertion / extraction even with large core numbers
Specifications
| Rated Voltage | 250 VAC (r.m.s.) |
|---|---|
| Rated Current | 1 A |
| Insulation Resistance | 1,000 MΩ or more at 100 VDC |
| Withstand Voltage | 750 VAC (r.m.s.) (PCS Series) 500 VAC (r.m.s.) (PCS-XE Series) |
| Contact Resistance | 35 mΩ or less (not applicable for certain products) |

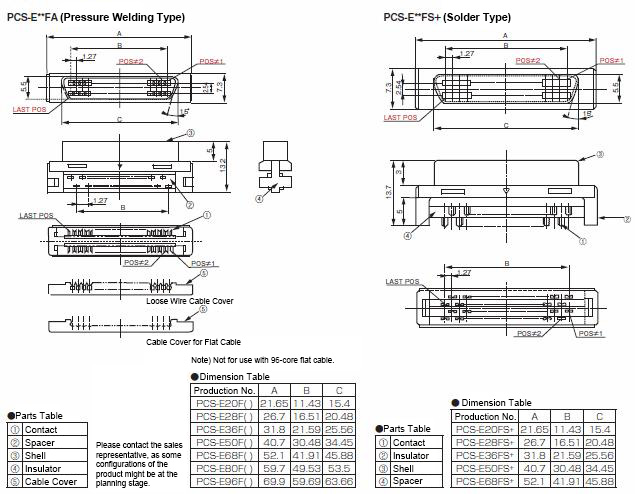

Dimensions / Contact Arrangement Diagram
