Generic Cable with Press-fit Connector

Brand :

MISUMI

Caution

Product Description

Generic Cable with Press-fit Connector
Cables with Rectangular Connectors are wiring components for automation machines. They offer a variety of types and cable lengths to choose from.
[Feature]
● Connector type and shape :
CN1 - Male,Female
CN2 - Male,Female, Y terminal
● Cable length : 0.2 to 50 m. (Can be specified by 0.1m increments)
[Application]
Cables with Rectangular Connectors support a wide variety industrial for control applications

● Cables with MIL socket connector (C-83503 compliant) that are widely used for applications such as programmable controllers and I / O cards.
● By taking advantage of the free alteration / custom number, customized connection changes and earth wire length specifications etc. can be performed.
● The combination of the MIL connector and other connectors' cables can be handled with the "Web Design Harness Plus."

· When the mark tube has no printed custom number specified, the connector pin arrangement number is printed. Be careful not to forget to put the custom number on the supported device.
· Sheath peeling length can be designated as alteration service only for those with terminals or mark tubes.
· The shield holds the lead wire.
· Male connectors are not manufactured for the shape specification models P / PP / PS / PY / PT, thus there is no configuration for 6-core or 14-core.
· One polarity guide key each left and right (total of 2) for 50 W, 60 W, and 64 W.
One in center model as well (Total 1).

Wiring and Wire Color Page >>Click here
Component Page >>Click here

Specifications

Generic Cable with Press-fit Connector:Related Image

Specified Length (m)	~ 0.9	1 ~ 4	4.1 ~ 50
Tolerance	+20mm	+50mm	+ 3% of Specified Length

* The tolerance of the specified length is as described above.

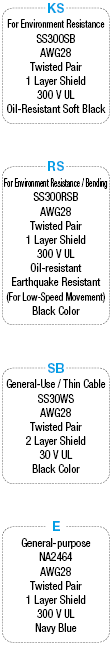

Connector Type	Shape Specification Type	Outline Image Drawing (Unit: mm)	Cable Type	Number of Cores	Specified Length (m)


HIFS Pressure Welding Type Connector Hirose Electric Co., Ltd	S (Female)			6	0.2 ~ 50 Can be specified by 0.1 m increments
				10
				14
				16
				20
				26
				30
				34
				40
				50
				50W
				60
				60W
				64
				64W
	P (Male for Relay) 6, 14-core not available			10
				16
				20
				26
				30
				34
				40
				50
				50W
				60
				60W
				64
				64W
	SS (Female / Female)			6
				10
				14
				16
				20
				26
				30
				34
				40
				50
				50W
				60
				60W
				64
				64W
	PP (Male for Relay / Male for Relay) 6, 14-core not available			10
				16
				20
				26
				30
				34
				40
				50
				50W
				60
				60W
				64
				64W
	PS (Male for Relay / Female) 6, 14-core not available			10
				16
				20
				26
				30
				34
				40
				50
50W
60
60W
64
64W

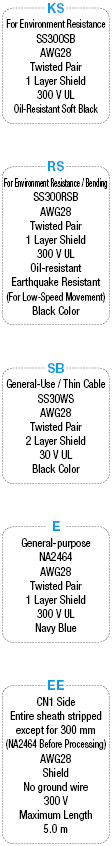

Connector Type	Shape Specification Type	Outline Image Drawing (Unit: mm)	Cable Type	Number of Cores	Specified Length (m)


HIFS Weld Type Connector Hirose Electric Co., Ltd	SY (Female / Y Terminal) With Pin No. Insertion Mark Tube			6	0.2 ~ 50
				10
				14
				16
				20
				26
				30
				34
				40
				50
				50W
				60
				60W
				64
				64W
	PY (Male for Relay / Y Terminal) With Pin No. Insertion Mark Tube 6, 14-core not available			10
				16
				20
				26
				30
				34
				40
				50
				50W
				60
				60W
				64	Can be specified by 0.1 m increments Only EE
				64W
	ST (Female / Loose Wires) With Pin No. Insertion Mark Tube			6
				10
				14
				16
				20
				26
				30
				30	0.5 ~ 5.0 m Can be specified by 0.1 m increments
				34
				40
				50
				50W
				60
				60W
				64
				64W
	PT (Male for Relay / Loose Wires) With Pin No. Insertion Mark Tube 6, 14-core not available			10
				16
				20
				26
				30
				34
				40
				50
				50W
				60
				60W
				64
				64W

(Note) Male connectors are not manufactured for the shape specification types P / PP / PS / PY / PT, thus there is no configuration for 6-core or 14-core.
One polarity guide key each left and right (total of 2) for 50W, 60W, and 64W. One in center type as well (Total 1).
