DC24V Cooling Fans

Economy series Double Ball Bearing DC24V Cooling Fans
·Product function: To forcibly discharge the heat out of a control cabinet that is dissipated by equipment of varying sizes when working in the cabinet, achieving the effect of temperature reduction and ensuring normal operation of theequipment

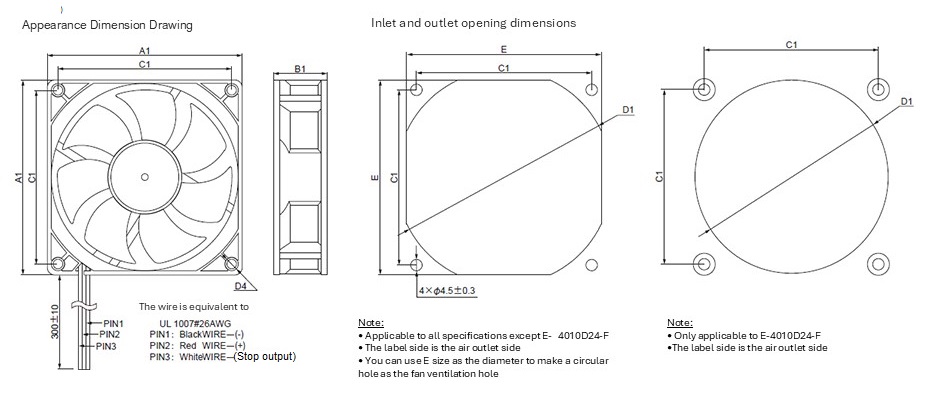

Note on accessory dimensions

Note: The appearance may vary slightly depending on the specifications and dimensions.



Part Number		Edge LengthA1 mm	Thickness B1 mm	Mounting Hole Distance C1 mm	Mounting hole diameter D4 mm	Opening size D1 mm	Opening size E mm	Wire Length mm	Usage environment ℃	Certificate
Fan Model	Accessories（Fan+Filter+Protection Cover）
E-4010D24-F	E-4010D24-F-SET	40	10	32	3.4	38	-	300	-10℃~70℃	CE
E-6025D24-F	E-6025D24-F-SET	60	25	50	4.5	63	57.7
E-8025D24-F	E-8025D24-F-SET	80	25	71.5		86.3	77
E-9225D24-F	E-9225D24-F-SET	92	25	82.5		102	88
E-9238D24-RF	E-9238D24-RF-SET	92	38	82.5		97	88
E-1225D24-SRF	E-1225D24-SRF-SET	120	25	105		127	115.6
E-1225D24-RF	E-1225D24-RF-SET	120	25	105		127	115.6
E-1238D24-SRF	E-1238D24-SRF-SET	120	38	105		128	115.3
E-1238D24-RF	E-1238D24-RF-SET	120	38	105		128	115.3

■Performance Parameters

Part Number		Rated Voltage V	Rated Current A	Rated speed RPM	Air Volume CFM	Static pressure mmH2O	Noise (MAX)dBA	Lock protection	Stop output	Reverse polarity protection
Fan Model	Accessories（Fan+Filter+Protection Cover）
E-4010D24-F	E-4010D24-F-SET	DC24	0.05	6600	7.2	3.5	33.6	-	-	Provided
E-6025D24-F	E-6025D24-F-SET		0.1	4500	24.3	4.6	37.7	-	-
E-8025D24-F	E-8025D24-F-SET		0.15	3600	45.5	5.8	37.5	-	-
E-9225D24-F	E-9225D24-F-SET		0.15	3000	52.5	3.67	39.3	-	-
E-9238D24-RF	E-9238D24-RF-SET		0.82	6500	133.0	24.24	65.6	Provided	-
E-1225D24-SRF	E-1225D24-SRF-SET		0.2	3750	107.5	7.6	51.5	Provided	Provided
E-1225D24-RF	E-1225D24-RF-SET		0.2	3750	107.5	7.6	51.5	Provided	-
E-1238D24-SRF	E-1238D24-SRF-SET		0.15	2600	95.2	5.58	41.0	Provided	Provided
E-1238D24-RF	E-1238D24-RF-SET		0.15	2600	95.2	5.58	41.0	Provided	-

■Fan Kit Accessories

Part Number	Filter					Protection Cover
Component	Edge Length A2 mm	Thickness B2 mm	Mounting Hole Distance C2 mm	Mounting hole inner diameter D5 mm	Material	Edge LengthA3 mm	Thickness B3 mm	Mounting Hole Distance C3 mm	Mounting hole inner diameter D2 mm	Outer diameter D3 mm	Material
E-4010D24-F-SET	42.8	6.2	32	3.2	Resin	40	4.5	32	4.2	29.2	Iron (Chrome Plated)
E-6025D24-F-SET	64.3	7	50	4.8		57.6	4.5	50	4.6	53
E-8025D24-F-SET	85.6	10	71.5	4.5		79.8	5	71.5	5	75.5
E-9225D24-F-SET	95.7	10	82.5	4.5		90.5	5	82.5	5	89.5
E-9238D24-RF-SET	95.7	10	82.5	4.5		90.5	5	82.5	5	89.5
E-1225D24-SRF-SET	125	10	105	5.7		113.5	5	105	5	115
E-1225D24-RF-SET	125	10	105	5.7		113.5	5	105	5	115
E-1238D24-SRF-SET	125	10	105	5.7		113.5	5	105	5	115
E-1238D24-RF-SET	125	10	105	5.7		113.5	5	105	5	115

Electrical Enclosure Cooling Fans Low cost, assured quality, rapidly cooling down your control cabinet
·Rated voltage DC24V, recommended operating voltage 12 to 24V, wide temperature range
·Some products come with the stall lock function to prevent overheat damage due to stall. Please check the Specification Table
·Some products come with the lock sensing output signal wires (3-wire products). Please check the Specification Table
·All products come with the reverse connection protection function, allowing normal use regardless of connection with straight polarity or reversed polarity.
·Main material is PBT

Note:
1. Always use within the recommended operating voltage range (DC12 to 24V)
2. Make reasonable configurations based on actual needs, referring to the airflow and static pressure data in the Specification Table.
