Switching Power Supply with Hood Enclosure Fixing Support
Brand :
MISUMI
Caution
Product Description
FEATURES
Fixing support for ESP10 high-power series enclosure
· Compatible with ESP10 series 200-600W.
· The product is available in package comprising 4 pieces.
· Fixing screws should be prepared separately.
Fixing support for ESP10 high-power series enclosure
· Compatible with ESP10 series 200-600W.
· The product is available in package comprising 4 pieces.
· Fixing screws should be prepared separately.
Specification Table
| Shape | Shape | Per Set | Applicable Power Supply |
| ESP10-C | MHS1-4P | 4 pcs | ESP10-200-24 |
| ESP10-350-24 | |||
| ESP10-450-24 | |||
| MHS2-4P | ESP10-600-24 |

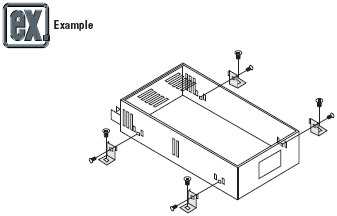

Example of Use

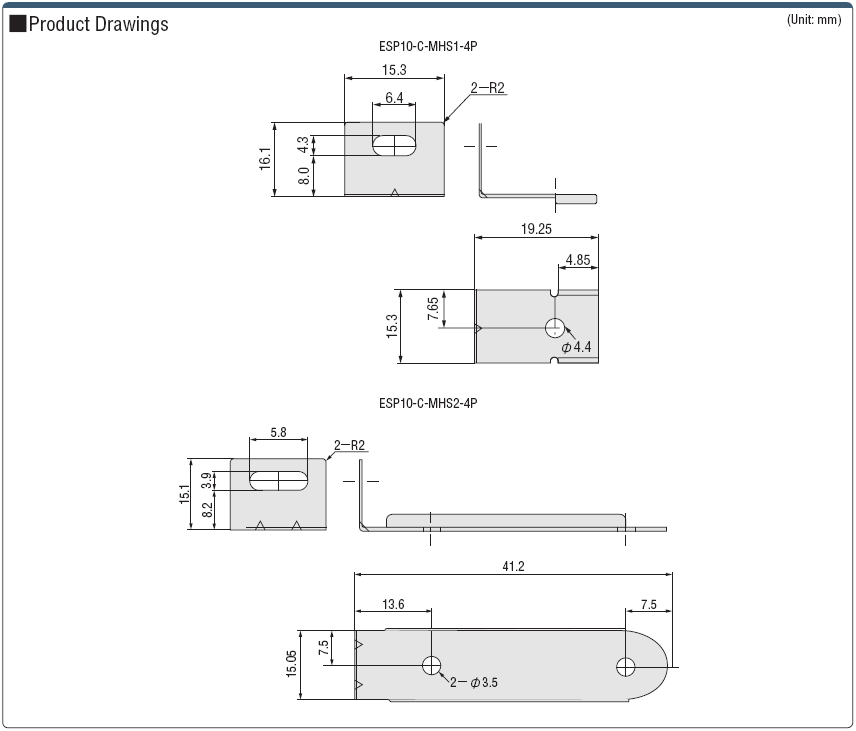

Product Drawings
