Fixing Multi-Core Cable ⋅ RVVP Series CCC/CE 300V Cable with Shield
Brand :
MISUMI
Caution
Product Description
- Fixing Multi-Core Cable ⋅ RVVP Series CCC/CE 300V Cable with Shield from MISUMI.
- The number of cores can be selected up to 16 cores.
- Sold in whole roll. (100 m)
- MISUMI may make design changes without notice resulting in color and flexibility variations.
- The wire core number is “2” when the core number/pair number is marked as 1P.
- The insulation color is the reference value and may differ from those of the material objects.
FEATURES Low-Cost CCC/CE Cable with Shield
● Certified by CCC and CE for domestic use or export.
● Cost is minimized without impairing the quality, offering discount for large quantity.
● Always available in stock, allowing same-day shipment.
● Pure bare copper wire braided shielding, with shielding density of more than 80%.
● RoHS compliant.
● Certified by CCC and CE for domestic use or export.
● Cost is minimized without impairing the quality, offering discount for large quantity.
● Always available in stock, allowing same-day shipment.
● Pure bare copper wire braided shielding, with shielding density of more than 80%.
● RoHS compliant.

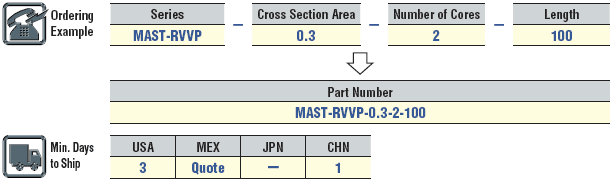

a.Cut-to-length orders: enter requested length in the Length section (up to 100m)
b.Whole roll orders: enter 100 in the Length section.
NOTE:1 roll＝100m
· MISUMI may make design changes without notice resulting in color and flexibility variations.
※ (1) Except for a full range of 0.3mm2 section-area models and 0.5mm2 section-area 40-core models, this product is not subject to CCC
(2)The rated voltage for 2.5mm2 section-area models of this product is changed to 300/300V. Please use this rated voltage as standard!
b.Whole roll orders: enter 100 in the Length section.
NOTE:1 roll＝100m
· MISUMI may make design changes without notice resulting in color and flexibility variations.
※ (1) Except for a full range of 0.3mm2 section-area models and 0.5mm2 section-area 40-core models, this product is not subject to CCC
(2)The rated voltage for 2.5mm2 section-area models of this product is changed to 300/300V. Please use this rated voltage as standard!
Specification Table
| Shape | Cross Section Area | Number of Cores | Length | AWG Size | Twisting Structure | Number of Wire Cores | Cable OD (mm) | Reference Weight kg/km | Electrical Properties | Conductor | Insulation | Wire Core OD (mm) | Sheath | |||||||
| Maximum Allowable Current A(30℃) | Conductor Resistance Ω/km (20℃) | Insulation Characteristic MΩ/km (70℃) | Maximum Voltage V/minute | Core Wire Structure pcs/mm | Outer Diameter Approx.(mm) | Electroplating | Thickness (mm) | Material | Thickness (mm) | Material | ||||||||||
| MAST-RVVP | 0.3 | 2 | 100 (Sold in whole roll) | 22 | Twisted | 2 | 5.4±0.3 | 40.3 | 3.5 | 64.1 or Less | Above 0.012 | 2000 | 16/0.15 | 0.75 | Not Provided | 0.5 | PVC | 1.7 | 0.6 | PVC |
| 3 | 3 | 5.7±0.3 | 47.1 | 0.6 | ||||||||||||||||
| 4 | 4 | 6.15±0.3 | 56.8 | 0.6 | ||||||||||||||||
| 5 | 5 | 6.65±0.3 | 66.8 | 0.6 | ||||||||||||||||
| 6 | 6 | 7.15±0.3 | 75.1 | 0.6 | ||||||||||||||||
| 8 | 8 | 8.3±0.3 | 107.9 | 0.8 | ||||||||||||||||
| 12 | 12 | 9.8±0.4 | 139.7 | 0.8 | ||||||||||||||||
| 16 | 16 | 10.7±0.4 | 172.2 | 0.8 | ||||||||||||||||
| 20 | 20 | 12.2±0.4 | 213.6 | 1.0 | ||||||||||||||||
| 40 | 40 | 16.4±0.6 | 424 | 1.2 | ||||||||||||||||
| 0.5 | 2 | 21 | 2 | 5.8±0.3 | 49.0 | 5 | 39 or Less | Above 0.012 | 2000 | 16/0.2 | 0.95 | 0.5 | 1.95 | 0.6 | ||||||
| 3 | 3 | 6.1±0.3 | 58.8 | 0.6 | ||||||||||||||||
| 4 | 4 | 6.6±0.3 | 71.2 | 0.6 | ||||||||||||||||
| 5 | 5 | 7.2±0.3 | 84.9 | 0.6 | ||||||||||||||||
| 6 | 6 | 7.8±0.3 | 96.7 | 0.6 | ||||||||||||||||
| 8 | 8 | 8.9±0.3 | 134.5 | 0.8 | ||||||||||||||||
| 12 | 12 | 10.6±0.4 | 181.7 | 0.8 | ||||||||||||||||
