Fixing Multi-Core Cable ⋅ RVVRF Series, CCC/CE 300/500V Power Cable - Unshielded
Brand :
MISUMI
Caution
Product Description
- Fixing Multi-Core Cable ⋅ RVVRF Series, CCC/CE 300/500V Cable without Shield from MISUMI.
- The number of cores can be selected up to 40 cores.
- The insulation color is the reference value and may differ from those of the material objects.
- Sold in whole roll. (100 m)
- Certified by CCC and CE for domestic use or export.
- Cost is minimized without impairing the quality.
- MISUMI may make design changes without notice resulting in color and flexibility variations.
FEATURES
●Certified by CCC and CE for domestic use or export.
● Cost is minimized without impairing the quality.
● Always available in stock, allowing same-day shipment.
●RoHS compliant.
●Certified by CCC and CE for domestic use or export.
● Cost is minimized without impairing the quality.
● Always available in stock, allowing same-day shipment.
●RoHS compliant.

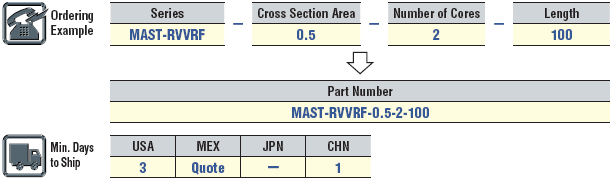

a.Cut-to-length orders: enter requested length in the Length section (up to 100m)
b.Whole roll orders: enter 100 in the Length section.
NOTE:1 roll＝100m
· MISUMI may make design changes without notice resulting in color and flexibility variations.
b.Whole roll orders: enter 100 in the Length section.
NOTE:1 roll＝100m
· MISUMI may make design changes without notice resulting in color and flexibility variations.
Specification Table
| Shape | Section Area (mm2) | Number of Cores | Length | AWG Size | Twisting Structure | Number of Wire Cores | Cable OD (mm) | Reference Weight kg/km | Electrical Properties | Conductor | Insulation | Wire Core OD (mm) | Sheath | |||||||
| Maximum allowable current A(30℃) | Conductor Resistance Ω/km (20℃) | Insulation Characteristic MΩ/km (70℃) | Maximum Voltage V/5 minutes | Core Wire Structure pcs/mm | Outer Diameter Approx.(mm) | Electroplating | Thickness (mm) | Material | Thickness (mm) | Material | ||||||||||
| MAST-RVVRF | 0.5 | 2 | 100 (Sold in whole roll) | 21 | Twisted | 2 | 5.2±0.3 | 37 | 5 | 39 or Less | Above 0.012 | 2000 | 16/0.2 | 0.95 | Not Provided | 0.5 | PVC | 1.95±0.1 | 0.6 | PVC |
| 3 | 3 | 5.5±0.3 | 43 | 0.6 | ||||||||||||||||
| 4 | 4 | 6.3±0.3 | 50 | 0.7 | ||||||||||||||||
| 10 | 10 | 10.0±0.4 | 140 | 1 | ||||||||||||||||
| 20 | 20 | 12.6±0.5 | 242 | 1.3 | ||||||||||||||||
| 40 | 40 | 17.4±0.6 | 440 | 1.4 | ||||||||||||||||
| 0.75 | 2 | 19 | 2 | 6.3±0.3 | 47 | 6.7 | 26 or Less | Above 0.011 | 2000 | 24/0.2 | 1.2 | 0.6 | 2.35±0.1 | 0.8 | ||||||
| 3 | 3 | 6.7±0.3 | 55 | 0.8 | ||||||||||||||||
| 4 | 4 | 7.6±0.3 | 83 | 0.8 | ||||||||||||||||
| 5 | 5 | 8.4±0.3 | 99 | 0.9 | ||||||||||||||||
| 6 | 6 | 9.2±0.4 | 108 | 0.9 | ||||||||||||||||
| 7 | 7 | 9.2±0.4 | 128 | 0.9 | ||||||||||||||||
| 8 | 8 | 10.1±0.4 | 150 | 1 | ||||||||||||||||
| 10 | 10 | 11.8±0.5 | 184 | 1 | ||||||||||||||||
| 12 | 12 | 12.5±0.5 | 221 | 1.1 | ||||||||||||||||
| 16 | 16 | 14.1±0.5 | 280 | 1.2 | ||||||||||||||||
| 20 | 20 | 15.6±0.5 | 350 | 1.3 | ||||||||||||||||
