MIL Spec Connector · EMS Series, Angle Plug
Brand :
MISUMI
Caution
Product Description
FEATURES MIL standard-compliant basic EMS connector
● MIL standard-compliant connectors of other brands can be connected with this series products.
●Angle plugs capable of connecting with panel mount receptacles and relay adapters.
●Does not support key position changes.
● MIL standard-compliant connectors of other brands can be connected with this series products.
●Angle plugs capable of connecting with panel mount receptacles and relay adapters.
●Does not support key position changes.
· Male and female angle plugs cannot be connected.

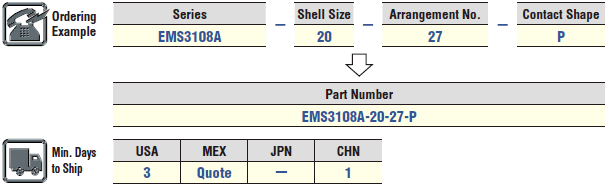

Specification Table
| Shape | Shell Size | Arrangement No. >>Click here | Contact Shape | Number of Cores | φA or Less (mm) |  (mm) |  (mm) | F or Less (mm) | G or Less (mm) | M Thread | Thread N-2A |
| EMS3108A Angle Plug ※Mating Components EMS3102A>>Click here EMS3100A >>Click here EMS3101A>>Click here | 18 | 1 | P Male S Female | 10 | 34.13 | 23.62 | 19.72 | 33.32 | 68.27 | 1-1/8-18UNEF | 1-20UNEF |
| 10 | 4 | ||||||||||
| 19 | 5 | ||||||||||
| 20 | 3 | 3 | 37.31 | 26.67 | 23.68 | 34.92 | 76.98 | 1-1/4-18UNEF | 1-3/16-18UNEF | ||
| 4 | 4 | ||||||||||
| 15 | 7 | ||||||||||
| 16 | 9 | ||||||||||
| 18 | 9 | ||||||||||
| 27 | 14 | ||||||||||
| 29 | 17 | ||||||||||
| 22 | 14 | 19 | 40.48 | 29.85 | 26.07 | 34.92 | 76.98 | 1-3/8-18UNEF | 1-3/16-18UNEF | ||
| 22 | 4 | ||||||||||
| 23 | 8 | ||||||||||
| 24 | 6 | 8 | 43.66 | 33.02 | 29.247 | 39.67 | 86.51 | 1-1/2-18UNEF | 1-7/16-18UNEF | ||
| 10 | 7 | ||||||||||
| 11 | 9 | ||||||||||
| 28 | 24 | ||||||||||
| 28 | 11 | 22 | 50.01 | 38.61 | 34.80 | 39.67 | 86.51 | 1-3/4-UNS | 1-7/16-18UNEF | ||
| 12 | 26 | ||||||||||
| 16 | 20 | ||||||||||
| 21 | 37 |
Product Drawings
