MIL Spec Connector · EMS Series Straight Plug

Brand :
MISUMI
Caution
Product Description
FEATURES MIL standard-compliant basic EMS connector
● MIL standard compliant connectors of other brands can be connected with this series products.
● Straight plugs capable of connecting with panel mount receptacles or relay adapters.
●Does not support key position changes.
● MIL standard compliant connectors of other brands can be connected with this series products.
● Straight plugs capable of connecting with panel mount receptacles or relay adapters.
●Does not support key position changes.

· Male and female straight plugs cannot be connected.
Specification Table


| Shape | Shell Size | Arrangement No. >>Click here | Contact Shape | Number of Cores | φA or Less (mm) | ![]() (mm) | ![]() (mm) | ![]() (mm) | E or Less (mm) | M Thread | Thread N-2A |
| EMS3106A Straight ※Mating Components EMS3102A>>Click here EMS3101A>>Click here EMS3100A>>Click here | 14S | 2 | P Male S Female | 4 | 29.36 | 17.15 | 13.37 | 13.49 | 42.87 | 7/8-20UNEF | 3/4-20UNEF |
| 6 | 6 | ||||||||||
| 16S | 1 | 7 | 31.75 | 20.45 | 16.54 | 13.49 | 42.87 | 1-20UNEF | 7/8-20UNEF | ||
| 4 | 2 | ||||||||||
| 18 | 1 | 10 | 34.13 | 23.62 | 19.72 | 18.26 | 52.37 | 1-1/8-18UNEF | 1-20UNEF | ||
| 10 | 4 | ||||||||||
| 19 | 10 | ||||||||||
| 20 | 3 | 3 | 37.31 | 26.67 | 23.68 | 18.26 | 55.57 | 1-1/4-18UNEF | 1-3/16-18UNEF | ||
| 4 | 4 | ||||||||||
| 15 | 7 | ||||||||||
| 16 | 9 | ||||||||||
| 18 | 9 | ||||||||||
| 27 | 14 | ||||||||||
| 29 | 17 | ||||||||||
| 22 | 14 | 19 | 40.48 | 29.85 | 26.07 | 18.26 | 55.57 | 1-3/8-18UNEF | 1-3/16-18UNEF | ||
| 22 | 4 | ||||||||||
| 23 | 8 | ||||||||||
| 24 | 6 | 8 | 43.66 | 33.02 | 29.247 | 18.26 | 58.72 | 1-1/2-18UNEF | 1-7/16-18UNEF | ||
| 10 | 7 | ||||||||||
| 11 | 9 | ||||||||||
| 28 | 24 | ||||||||||
| 28 | 11 | 22 | 50.01 | 38.61 | 34.80 | 18.26 | 58.72 | 1-3/4-UNS | 1-7/16-18UNEF | ||
| 12 | 26 | ||||||||||
| 16 | 20 | ||||||||||
| 21 | 37 |

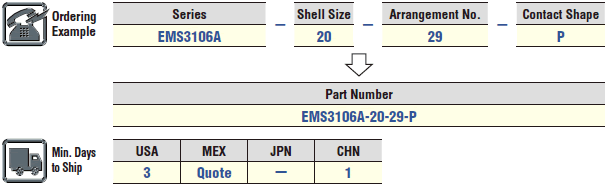

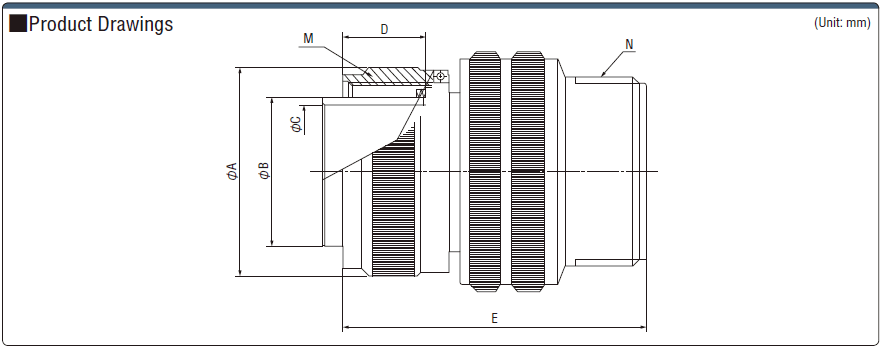

Product Drawings
