200 VAC Reversible Electromagnetic Switch Coil

Brand :
MISUMI

Caution

    Product Description

    An electromagnetic switch for 200 V AC. The open-close lifespan of this product is among the best in the world.


    ● Tedious component selection is not necessary.
    ● This CE Marking compliant product has passed certification testing.
    ● Terminal cover is standard equipment.
    ● World's Longest Switching Life EC60947-4-1 (JIS C 8201-4-1, JEM1038)
    Electrical life 2.5 million operations (Europe Company A, 2 million operations, Japan Company B 2 million operations)
    Mechanical life 25 million operations (Europe Company A, 16 million operations, Japan Company B 10 million operations)
    ● By removing the front cover, a round terminal (crimped terminal) can also be used.

    · Electromagnetic contactor and thermal relay are assembled by the customer.

    Specifications

    200 VAC Reversible Electromagnetic Switch Coil:Related Image

    Frame Size (AF)Coil VoltageAuxiliary ContactMotor Capacity
    (KW)    		Thermal Relay ModelSetting Range
    (A)    		Model
    6200 VAC1a0.05SMR-12-0.520.4 ~ 0.63KHK6R-AC200V-0.52
    0.1SMR-12-0.820.63 ~ 1KHK6R-AC200V-0.82
    0.2SMR-12-1.31 ~ 1.6KHK6R-AC200V-1.3
    0.4SMR-12-2.11.6 ~ 2.5KHK6R-AC200V-2.1
    0.75SMR-12-3.32.5 ~ 4KHK6R-AC200V-3.3
    1SMR-12-54 ~ 6KHK6R-AC200V-5
    1.5SMR-12-6.55 ~ 8KHK6R-AC200V-6.5
    1.5SMR-12-7.56 ~ 9KHK6R-AC200V-7.5
    2.2SMR-12-8.57 ~ 10KHK6R-AC200V-8.5
    91a1b0.05SMR-32-0.520.4 ~ 0.63KHK9R-AC200V-0.52
    0.1SMR-32-0.820.63 ~ 1KHK9R-AC200V-0.82
    0.2SMR-32-1.31 ~ 1.6KHK9R-AC200V-1.3
    0.4SMR-32-2.11.6 ~ 2.5KHK9R-AC200V-2.1
    0.75SMR-32-3.32.5 ~ 4KHK9R-AC200V-3.3
    1SMR-32-54 ~ 6KHK9R-AC200V-5
    1.5SMR-32-6.55 ~ 8KHK9R-AC200V-6.5
    1.5SMR-32-7.56 ~ 9KHK9R-AC200V-7.5
    2.2SMR-32-8.57 ~ 10KHK9R-AC200V-8.5
    3.7SMR-32-119 ~ 13KHK9R-AC200V-11
    3.7SMR-32-1512 ~ 18KHK9R-AC200V-15
    5.5SMR-32-1916 ~ 22KHK9R-AC200V-19
    5.5SMR-32-21.518 ~ 25KHK9R-AC200V-21.5
    7.5SMR-32-2722 ~ 32KHK9R-AC200V-27
    131a1b0.05SMR-32-0.520.4 ~ 0.63KHK12R-AC200V-0.52
    0.1SMR-32-0.820.63 ~ 1KHK12R-AC200V-0.82
    0.2SMR-32-1.31 ~ 1.6KHK12R-AC200V-1.3
    0.4SMR-32-2.11.6 ~ 2.5KHK12R-AC200V-2.1
    0.75SMR-32-3.32.5 ~ 4KHK12R-AC200V-3.3
    1SMR-32-54 ~ 6KHK12R-AC200V-5
    1.5SMR-32-6.55 ~ 8KHK12R-AC200V-6.5
    1.5SMR-32-7.56 ~ 9KHK12R-AC200V-7.5
    2.2SMR-32-8.57 ~ 10KHK12R-AC200V-8.5
    3.7SMR-32-119 ~ 13KHK12R-AC200V-11
    3.7SMR-32-1512 ~ 18KHK12R-AC200V-15
    5.5SMR-32-1916 ~ 22KHK12R-AC200V-19
    5.5SMR-32-21.518 ~ 25KHK12R-AC200V-21.5
    7.5SMR-32-2722 ~ 32KHK12R-AC200V-27
    18200 VAC1a1b0.05SMR-32-0.520.4 ~ 0.63KHK18R-AC200V-0.52
    0.1SMR-32-0.820.63 ~ 1KHK18R-AC200V-0.82
    0.2SMR-32-1.31 ~ 1.6KHK18R-AC200V-1.3
    0.4SMR-32-2.11.6 ~ 2.5KHK18R-AC200V-2.1
    0.75SMR-32-3.32.5 ~ 4KHK18R-AC200V-3.3
    1SMR-32-54 ~ 6KHK18R-AC200V-5
    1.5SMR-32-6.55 ~ 8KHK18R-AC200V-6.5
    1.5SMR-32-7.56 ~ 9KHK18R-AC200V-7.5
    2.2SMR-32-8.57 ~ 10KHK18R-AC200V-8.5
    3.7SMR-32-119 ~ 13KHK18R-AC200V-11
    3.7SMR-32-1512 ~ 18KHK18R-AC200V-15
    5.5SMR-32-1916 ~ 22KHK18R-AC200V-19
    5.5SMR-32-21.518 ~ 25KHK18R-AC200V-21.5
    7.5SMR-32-2722 ~ 32KHK18R-AC200V-27
    221a1b0.05SMR-32-0.520.4 ~ 0.63KHK22R-AC200V-0.52
    0.1SMR-32-0.820.63 ~ 1KHK22R-AC200V-0.82
    0.2SMR-32-1.31 ~ 1.6KHK22R-AC200V-1.3
    0.4SMR-32-2.11.6 ~ 2.5KHK22R-AC200V-2.1
    0.75SMR-32-3.32.5 ~ 4KHK22R-AC200V-3.3
    1SMR-32-54 ~ 6KHK22R-AC200V-5
    1.5SMR-32-6.55 ~ 8KHK22R-AC200V-6.5
    1.5SMR-32-7.56 ~ 9KHK22R-AC200V-7.5
    2.2SMR-32-8.57 ~ 10KHK22R-AC200V-8.5
    3.7SMR-32-119 ~ 13KHK22R-AC200V-11
    3.7SMR-32-1512 ~ 18KHK22R-AC200V-15
    5.5SMR-32-1916 ~ 22KHK22R-AC200V-19
    5.5SMR-32-21.518 ~ 25KHK22R-AC200V-21.5
    7.5SMR-32-2722 ~ 32KHK22R-AC200V-27
    321a1b0.05SMR-32-0.520.4 ~ 0.63KHK32R-AC200V-0.52
    0.1SMR-32-0.820.63 ~ 1KHK32R-AC200V-0.82
    0.2SMR-32-1.31 ~ 1.6KHK32R-AC200V-1.3
    0.4SMR-32-2.11.6 ~ 2.5KHK32R-AC200V-2.1
    0.75SMR-32-3.32.5 ~ 4KHK32R-AC200V-3.3
    1SMR-32-54 ~ 6KHK32R-AC200V-5
    1.5SMR-32-6.55 ~ 8KHK32R-AC200V-6.5
    1.5SMR-32-7.56 ~ 9KHK32R-AC200V-7.5
    2.2SMR-32-8.57 ~ 10KHK32R-AC200V-8.5
    3.7SMR-32-119 ~ 13KHK32R-AC200V-11
    3.7SMR-32-1512 ~ 18KHK32R-AC200V-15
    5.5SMR-32-1916 ~ 22KHK32R-AC200V-19
    5.5SMR-32-21.518 ~ 25KHK32R-AC200V-21.5
    7.5SMR-32-2722 ~ 32KHK32R-AC200V-27
    551a1b3.7SMR-63-15S12 ~ 18KHK50R-AC200V-15S
    5.5SMR-63-19S16 ~ 22KHK50R-AC200V-19S
    5.5SMR-63-21.5S18 ~ 25KHK50R-AC200V-21.5S
    7.5SMR-63-30S24 ~ 36KHK50R-AC200V-30S
    7.5SMR-63-34S28 ~ 40KHK50R-AC200V-34S
    11SMR-63-42S34 ~ 50KHK50R-AC200V-42S
    15SMR-63-55S45 ~ 65KHK50R-AC200V-55S
    651a1b3.7SMR-63-15S12 ~ 18KHK65R-AC200V-15S
    5.5SMR-63-19S16 ~ 22KHK65R-AC200V-19S
    5.5SMR-63-21.5S18 ~ 25KHK65R-AC200V-21.5S
    7.5SMR-63-30S24 ~ 36KHK65R-AC200V-30S
    7.5SMR-63-34S28 ~ 40KHK65R-AC200V-34S
    11SMR-63-42S34 ~ 50KHK65R-AC200V-42S
    15SMR-63-55S45 ~ 65KHK65R-AC200V-55S

     Rated VoltageRated Current
    Auxiliary Contact CapacityAC120V6A
    AC240V3A
    AC380V1.9A
    AC480V1.5A
    AC500V1.4A
    AC600V1.2A
    DC125V1.1A
    DC250V0.55A
    DC400V0.31A
    DC500V0.27A
    DC600V0.2A

    200 VAC, 100 VAC Electromagnetic Switch Specifications
    Frame Size18AF22AF40AF65AF
    Model KHK 6KHK 9KHK 12KHK 18KHK 22KHK 32KHK 50KHK 65
    Number of Phases 3333
    Rated Voltage 690V690V690V690V
    Rated Insulation Voltage 690V690V1000V1000V
    Rated Frequency 50 / 60 Hz50 / 60 Hz50 / 60 Hz50 / 60 Hz
    Rated Impulse Voltage 6 KV6 KV8 KV8 KV
    Switching Frequency (operations / hour)
    AC3 Grade    		 1800180018001800
    Mechanical Life (10K Times) 1500150012001200
    Electrical Life (10K Times) 250250200200
    AC Class 1A25252532405070100
    AC Class 3 200 / 240 VKW2.22.53.54.55.57.51518.5
     A911131822325565
    380/440VKW345.57.511152230
     A79121822325065
    500/550VKW347.57.51518.53033
     A67121320284360
    690VKW347.57.51518.53033
     A469918202835
    UL RatedContinuous CurrentA25252540405070100
    Single-phase110 ~ 120V 0.50.50.7512235
     220 ~ 240V 1.51.523351015
    Three-phase200 ~ 208V 22357.57.52025
     220 ~ 240V 3357.510102530
     440 ~ 480V 557.51015204050
     550 ~ 600V 7.57.5101520255060
    Coil Voltage ACWeightKg0.430.540.721.361.38
    Coil Voltage DCWeightKg0.60.680.941.611.63
    Coil Current220 VAC / 50 Hz0.04 A0.05 A0.06 A
    Coil Current220 VAC / 60 Hz0.03 A0.04 A0.05 A
    Coil Current110 VAC / 50 Hz0.08 A0.11 A0.12 A
    Coil Current110 VAC / 60 Hz0.06 A0.08 A0.09 A
    Clamping Voltage (Pickup)85 ~ 110% (50/60 Hz)
    Clamping Voltage (Dropout)30 ~ 60%

    ● Standard Usage Conditions
    Ambient TemperatureReference 20°C, -10°C ~ 40°C
    (Maximum 35°C daily average air temperature, maximum 25°C annual average air temperature)
    Maximum Board Internal Temperature55°C
    Take care, as operational characteristics of electromagnetic contacts and thermal relays can be affected by the ambient temperature.
    Relative Humidity45 ~ 85% RH, no condensation or freezing.
    Altitude2,000 m or lower
    Vibration10 ~ 55 Hz 19.6 m / s2 or lower
    Impact49 m / s2 or lower
    AtmosphereExcessive amount of dust, smoke, corrosive gases, flammable gas, moisture, or salt must not be present. Extended use in sealed conditions may lead to possible contact defects.

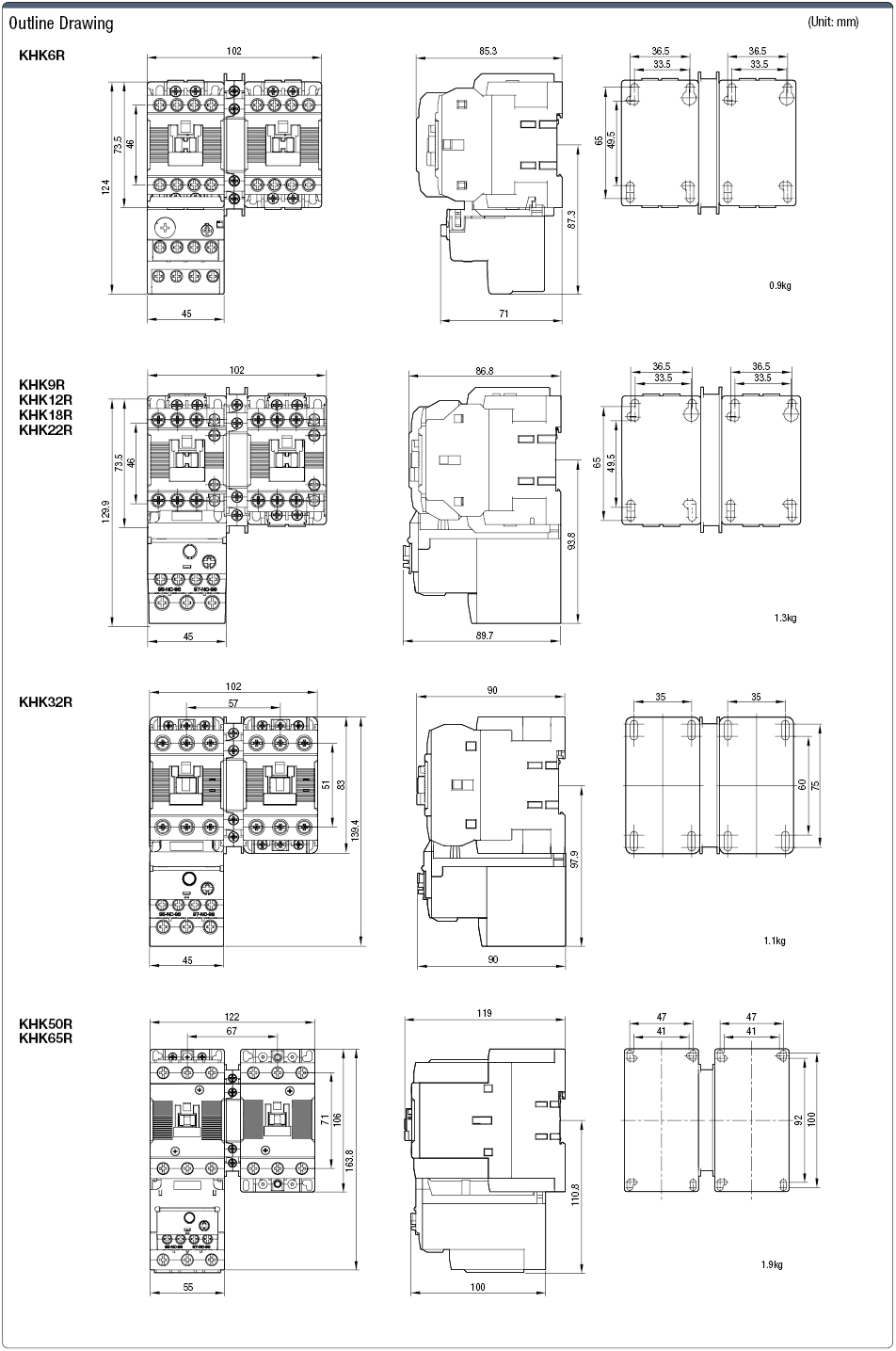

    Drawing

    200 VAC Reversible Electromagnetic Switch Coil:Related Image

    Electromagnetic Switch

    Electromagnetic Switch

    ● KHK Type
    Misumi Original Electromagnetic Switches
    Frame Size 18AF 22AF 40AF 65AF
    Model KHK6 KHK9 KHK12 KHK18 KHK22 KHK32 KHK50 KHK65
    Number of Phases 3 3 3 3
    Rated Voltage 690 V 690 V 690 V 690 V
    Rated Insulation Voltage 690 V 690 V 1,000 V 1,000 V
    Rated Frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz
    Rated Impulse Voltage 6 KV 6 KV 8 KV 8 KV
    Switching Frequency (times / hour), AC Class 3 1,800 1,800 1,800 1,800
    Mechanical Life (10,000 times) 1,500 1,500 1,200 1,200
    Electrical Life (10,000 times) 250 250 200 200
    AC - Class 1 A 25 25 25 32 40 50 70 100
    AC - Class 3 200 / 240 V KW 2.2 2.5 3.5 4.5 5.5 7.5 15 18.5
    A 9 11 13 18 22 32 55 65
    380 / 440 V KW 3 4 5.5 7.5 11 15 22 30
    A 7 9 12 18 22 32 50 65
    500 / 550 V KW 3 4 7.5 7.5 15 18.5 30 33
    A 6 7 12 13 20 28 43 60
    690 V KW 3 4 7.5 7.5 15 18.5 30 33
    A 4 6 9 9 18 20 28 35
    UL Rated, Continuous Current, A 25 25 25 40 40 50 70 100
    Single Phase 110 ~ 120 V 0.5 0.5 0.75 1 2 2 3 5
    220 ~ 240 V 1.5 1.5 2 3 3 5 10 15
    Three Phase 200 ~ 208 V 2 2 3 5 7.5 7.5 20 25
    220 ~ 240 V 3 3 5 7.5 10 10 25 30
    440 ~ 480 V 5 5 7.5 10 15 20 40 50
    550 ~ 600 V 7.5 7.5 10 15 20 25 50 60
    Coil Voltage AC Weight Kg 0.43 0.54 0.72 1.36 1.38
    Coil Voltage DC Weight, Kg 0.6 0.68 0.94 1.61 1.63
    ● Standard Operating Conditions
    Ambient Temperature Standard temperature at 20°C, -10°C ~ 40°C
    (Maximum Daily Average Ambient Temperature 35°C, Maximum Annual Average Ambient Temperature 25°C)
    Maximum Internal Panel Temperature 55°C
    Note that the operating properties of the electromagnetic connector and thermal relay are influenced by ambient temperature.
    Relative Humidity 45 ~ 85% RH, no condensation or freezing.
    Altitude 2,000 m or lower
    Vibration 10 ~ 55 Hz 19.6 m/s2 or lower
    Impact 49 m/s2 or lower
    Ambient Atmosphere The ambient atmosphere must not contain excessive dust, smoke, corrosive or combustible gas, moisture, or salt content.
    Further, prolonged operation while sealed may cause problems such as contact failure.
