Surge Absorption Unit
Brand :
MISUMI
Caution
Product Description
[Specifications]·Absorbs surges that occur when opening and closing. ·KHK6 to 65 can be used in common.
● Interchangeable from 6 to 65 KHK.
● Insulation Voltage 1000 VAC
● Impulse Withstand Voltage 8 KVAC
● Protection Class: IP20
※there is no polarity in this product.
Specifications
| Component Composition | Rated Voltage | Internal Component Specification | Weight | Model | |||
| V | R | C | |||||
| Varistor + CR | AC | 100 ~ 125V | 270 V | 100 Ω | 0.1 μF | 29 g | US-2 |
| Varistor + CR | 200 ~ 240 V | 470 V | US-3 | ||||
| Varistor + CR | DC | 24 ~ 48 V | 120 V | US-4 | |||
| Varistor | AC/DC Common | 24 ~ 48 V | 120 V | - | 0.47 μF | US-11 | |
| Varistor | 100 ~ 125V | 270 V | US-12 | ||||
| Varistor | 200 ~ 240 V | 470 V | US-13 | ||||

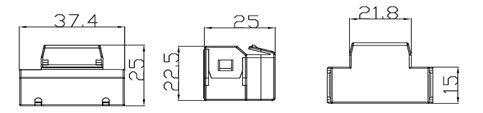

Drawing
