Motorized Rotary Stages Ball Screw Type, Position Repeatability ±0.005°

Caution
Product Description

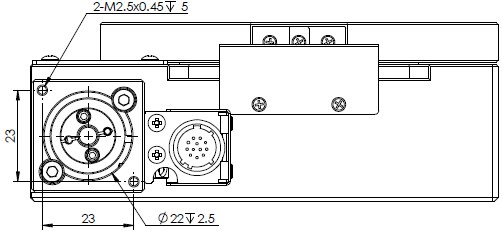

*: This hole cannot be used for mounting mating parts

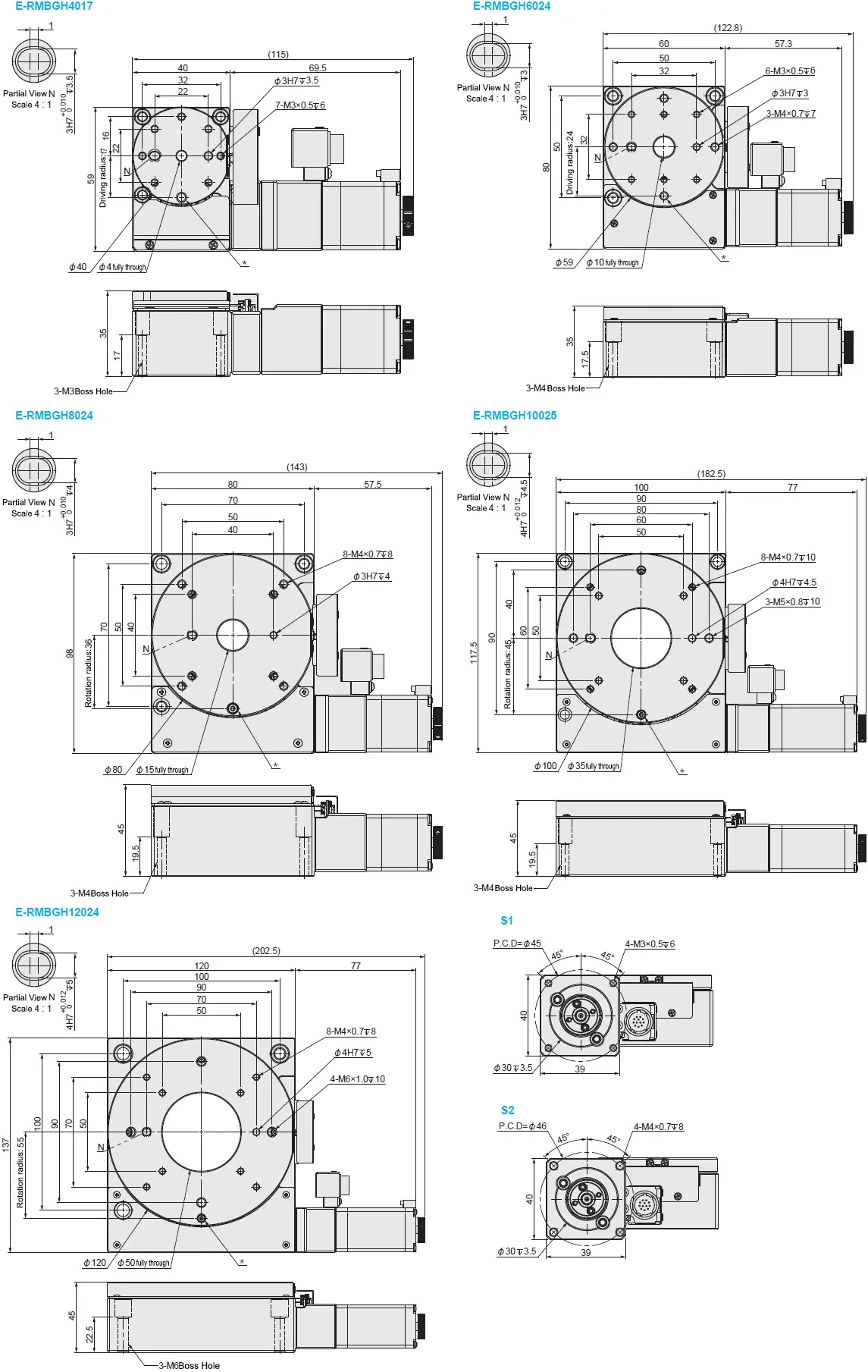

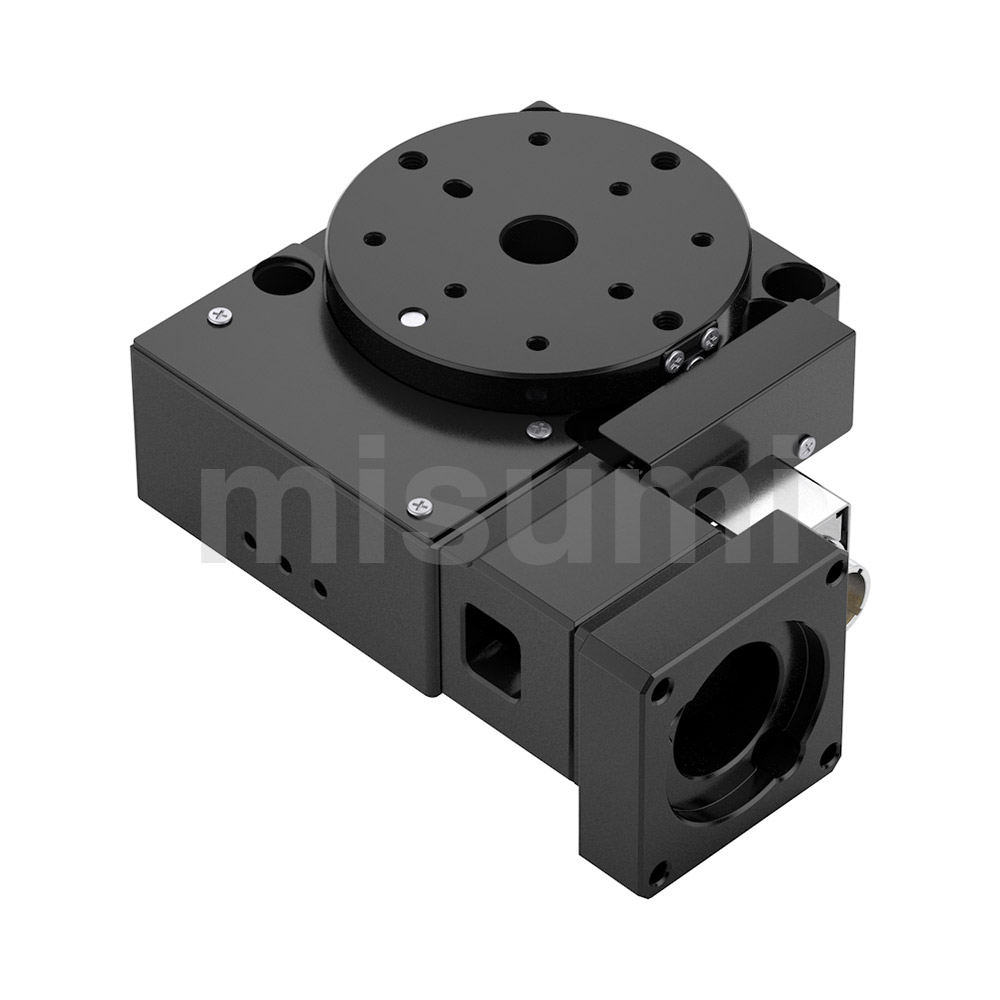

E-RMBGH4017-R-S3, E-RMBGH6024-R-S3, E-RMBGH8024-R-S3


E-RMBGH10025-R-S3, E-RMBGH12024-R-S3


Material: Aluminum Alloy
Surface Treatment: Black Anodized| Part Number | Slide Table Diameter (mm) | Cover PlatePosition | Motor | Driver | CableLength (m) | Mechanical Specifications | Accuracy Specifications | Sensor | |||||||||
Type | Shape | Movement (°) | Load Capacity (N) | Weight (kg) | Resolution (Pulse) | Maximum Speed (°/sec) | Repeat Positioning Accuracy | Invalid Operation | Parallel ism | Limit Sensor | Origin Sensor (ORG1) | ||||||
| E-RMBGH | Rotating shaft | 4017 | ⌀40 | R | No-marking (With standard stepper motor) S1 (With servo bracket PCD=45) S2 (With servo bracket PCD=46) S3 (With 28-frame stepper motor mounting bracket) | A (Single-axis pulse driver) N (No driver) | 2 (2 m cable) 4 (4 m cable) | ±8.5° | 39.2 | 0.5 | 0.0169° | 36 | ±0.005° | 0.005° | 50µm | Provided | Provided |
| 6024 | ⌀59 | ±12° | 58.8 | 0.7 | 0.0119° | 24.6 | |||||||||||
| 8024 | ⌀80 | ±12° | 78.4 | 1.4 | 0.0080° | 16 | 120µm | ||||||||||
| 10025 | ⌀100 | ±12.5° | 98 | 1.8 | 0.0064° | 12.8 | |||||||||||
| 12024 | ⌀120 | ±12° | 117.6 | 2.3 | 0.0052° | 10.5 | |||||||||||
Driver: The driver model used in this series: E-DR42C.
Cable: Cable models used in this series: HRS12-2M (2-meter cable) / HRS12-4M (4-meter cable).
Multi-axis combination: For inquiries regarding multi-axis combinations in this series, please contact: ts@misumi.com.vn.

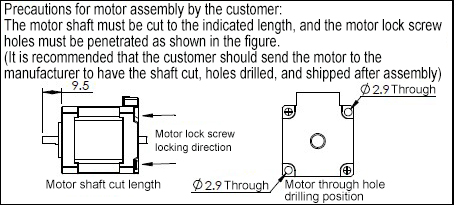

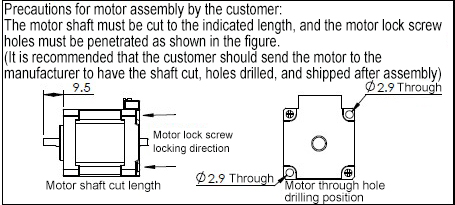

Motors S1 and S2 are not applicable for specification 4017.■ General Specifications
| E-RMBGH4017 | E-RMBGH6024 | E-RMBGH8024 | E-RMBGH10025 | E-RMBGH12024 | ||
| Feed Screw | Ball Screw ⌀6, Lead 1 mm | |||||
| Bearing | Angular Contact Ball Bearing Assembly | |||||
| Motor | Shape | 2-Phase Standard Stepper Motor 1.3 A/Phase | 2-Phase High Torque Stepper Motor 1.3 A/Phase | |||
| Step Angle | 1.8° | |||||
| Driver | Power Voltage | 24 to 36 V DC | ||||
| Output Current | 0.3 A to 2.2 A/phase (peak) | |||||
| Pulse Signal Voltage | 5VDC | |||||
| Pulse Input Method | Pulse + Direction or Dual Pulse | |||||
| Number of Subdivisions | 200 to 25600 | |||||
| Connector | Part Number | HR10A-10R-12P (Hirose) | ||||
| Receiving side part number | HR10A-10P-12S (Hirose) | |||||
| Sensor Substrate | Power Voltage | 24 V DC±10% | ||||
| Sensor Type | Miniature Photo Sensor RPI-0125 (ROHM) | |||||
| Control Output | NPN Open Collector Output | |||||
| Output Logic | During detection (shading): Output transistor OFF (non-conducting) | |||||

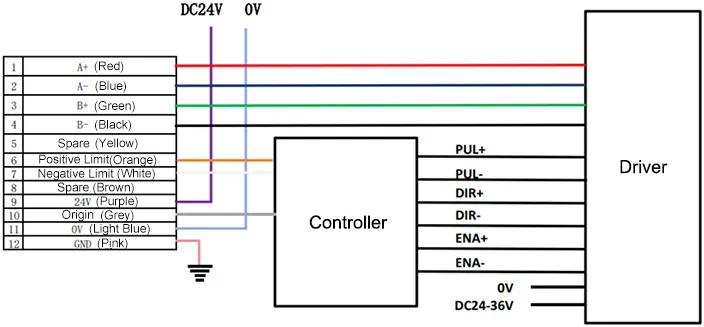

■ Connector Pin Arrangement

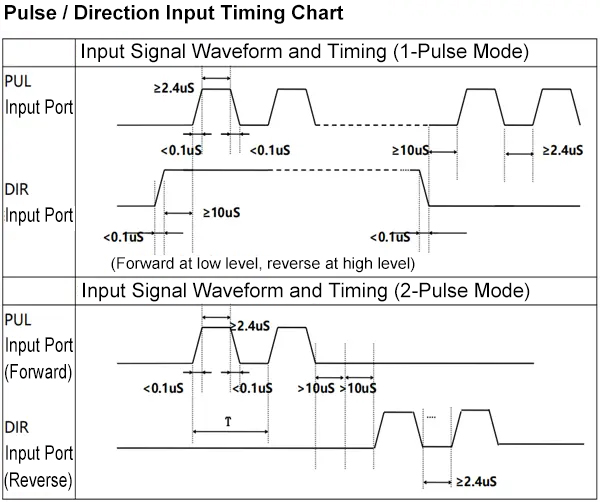

■Timing Diagram
Pulse Driver

Feature 2: Optimized structure and lower prices through local production.
Feature 3: Quick assembly and disassembly achieved by adding positioning holes to the slide table surface.
Feature 4: The surface of the main body is treated with black anodizing, which effectively prevents light reflection, making it especially suitable for use in the optical field.


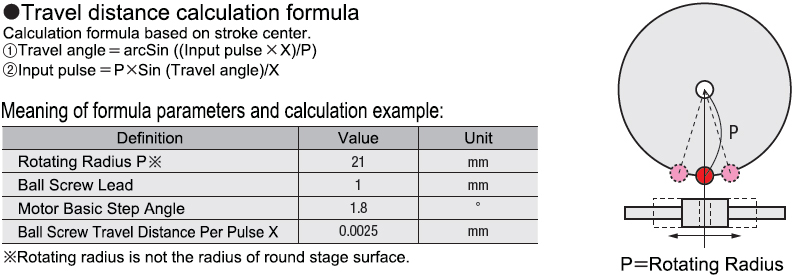

The value of [Ball screw travel per pulse X] in the table above is based on the driver subdivision setting of 400.
■ Slide Table Operating Environment
Operating environment: 10 to 50°C, 20 to 70%RH (non-condensing)
Recommended environment: 22±5°C , 20 to 70%RH (non-condensing)
Please avoid using the slide table in the following environments
(1) Dusty environments (especially metal powder)
(2) Environments with direct sunlight or heat radiation
(3) Near fire sources
(4) Environments with corrosive or flammable gases
(5) Environments with splashing water or oil
(6) Environments with strong vibration or impact
(7) Environments with organic solvents or high salt content
■About Slide Table Maintenance
There is no unified regular maintenance standard due to differences in grease types and usage environments. Depending on the drive conditions and the type of guide rail, please be sure to check the grease at least once a month.
Compatible drivers support dual pulse and pulse + direction control. For installation dimensions and user manual, please refer to: E-DR42C
