Cable Carriers, Semi-enclosed Type, Fully Enclosed Type

Brand :

MISUMI

Caution

Product Description

Product Overview

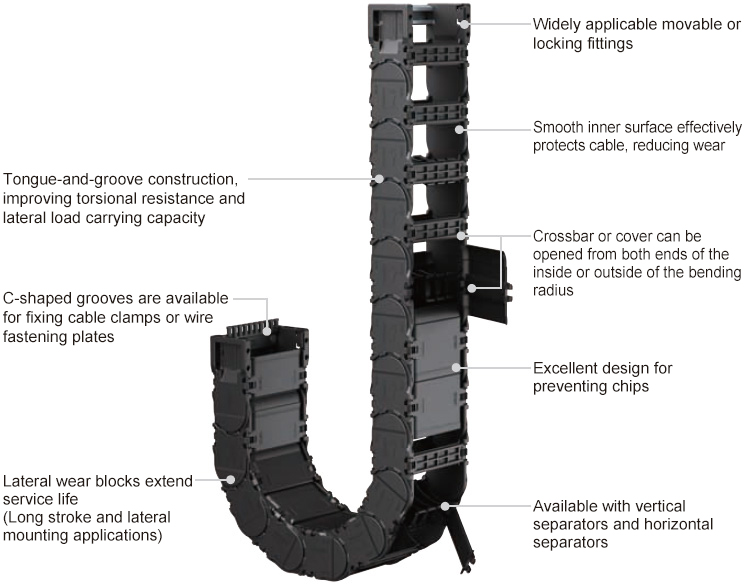

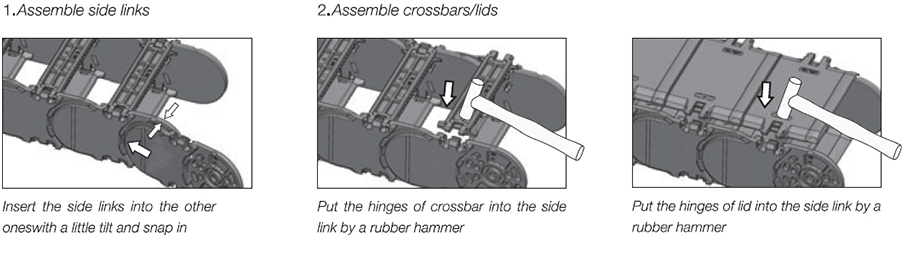

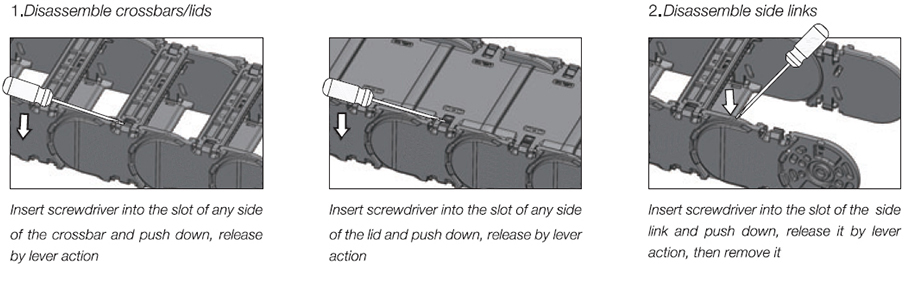

Four-piece structure, easy to assemble and disassemble
Crossbars and cover plates can be flipped nearly 180°
Medium load and strength
Expandable with clips, hoses can be independently installed on the outside of the cable carrier
Enables quick loading, saving assembly time

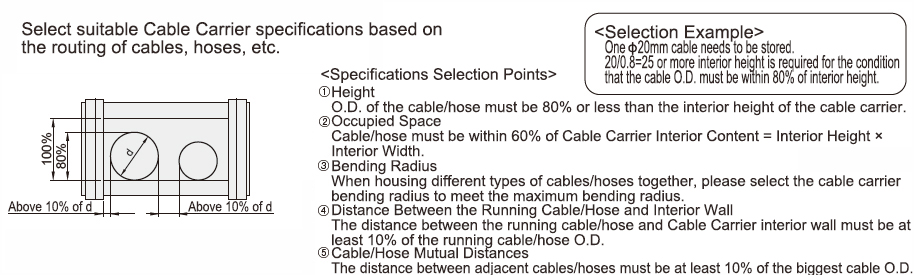

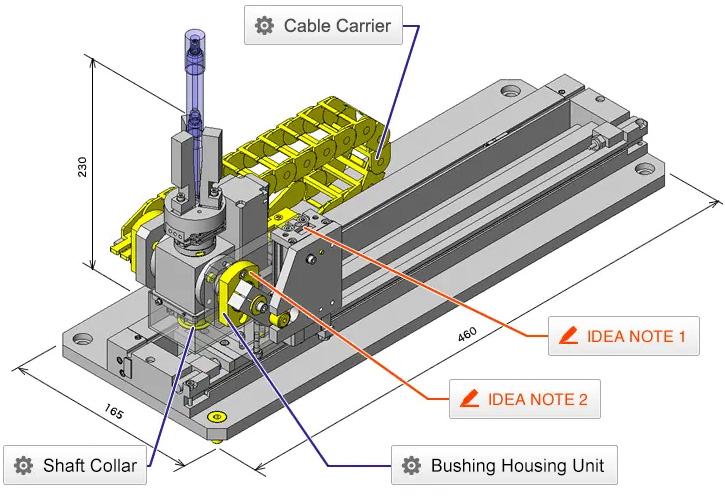

Select an example

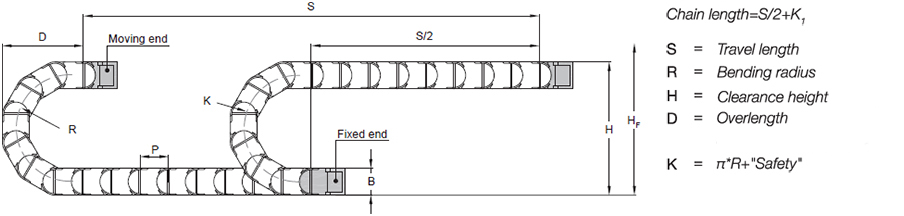

Dimensional Drawing

Dimensions / Appearance

Imported PA+Glass Fiber

Cross-Section Diagram

Inner Height 35	Inner Height 45

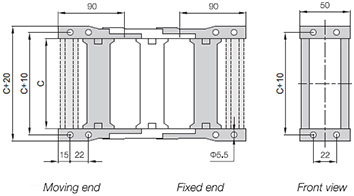

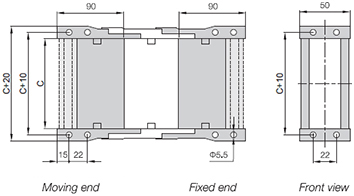

Joint Dimensional Drawing

Inner Height 35
Semi-enclosed Type	Fully Enclosed Type
		Dimensional Drawing of Separator Plates

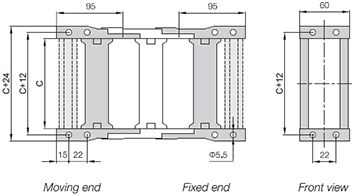

Inner Height 45
Semi-enclosed Type	Fully Enclosed Type
		Dimensional Drawing of Separator Plates

Technical Data

Speed/Acceleration MLa	max.10[m/s]/max.50[m/s²]
Speed/Acceleration MLb	max.3[m/s]/max.6[m/s²]
Gliding speed/Acceleration	max.5[m/s]/max.30[m/s²]
Permitted temperature	-40°C to 120°C
Flame Retardant Grade Flammability class	UL94 HB

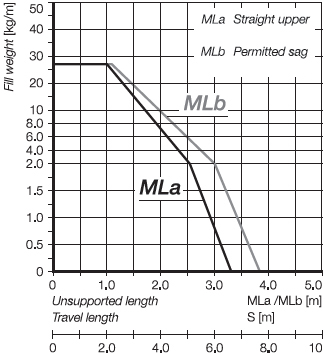

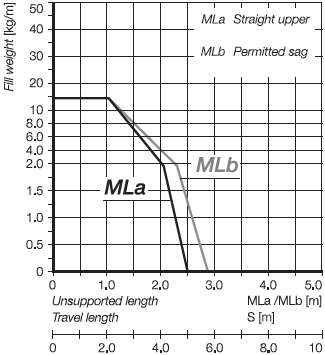

Overhead Load

Inner Height 35	Inner Height 45

Specifications Overview

Part Number		External height B	Inner width C	External Width W	Link Pitch P	Available bending radius R	Number of links	Separator	Separator Quantity	Installation Size (Corresponding Bending Radius)			Required space height HF	Weight Kg/m ≈
Type	Inner height A									H	D	K
Semi-enclosed Both sides can be opened E-MLC35	35	50	50	67	60	65 75 100 125 150 175 200 250	10 to 65 (600 mm ~ 3900 mm)	S35	4 to 65	180 200 250 300 350 400 450 550	150 160 185 210 235 260 285 335	325 360 435 515 595 670 750 905	H+40	1.15
			65	82										1.22
			75	92										1.28
			90	107										1.32
			100	117										1.40
			115	132										1.45
			125	142										1.52
			150	167										1.68
			175	192										1.75
			200	217										1.88
Semi-enclosed Both sides can be opened E-MLC45	45	60	50	71	70	75 100 125 150 175 200 250 300	10 to 65 (700 mm ~ 4550 mm)	S45	4 to 65	210 260 310 360 410 460 560 660	175 200 225 250 275 300 350 400	380 455 535 615 690 770 925 1085	H+40	1.55
			65	86										1.60
			75	96										1.65
			90	111										1.68
			100	121										1.75
			115	136										1.82
			125	146										1.86
			150	171										1.98
			175	196										2.05
			200	221										2.15
Fully enclosed Both sides can be opened E-MLT35	35	50	50	67	60	100 125 150 175 200 250	10 to 65 (600 mm ~ 3900 mm)	S35	4 to 65	250 300 350 400 450 550	185 210 235 260 285 335	435 515 595 670 750 905	H+40	1.15
			65	82										1.22
			75	92										1.28
			100	117										1.40
			125	142										1.52
			150	167										1.68
Fully enclosed Both sides can be opened E-MLT45	45	60	75	96	70	125 150 175 200 250 300	10 to 65 (700 mm ~ 4550 mm)	S45	4 to 65	310 360 410 460 560 660	225 250 275 300 350 400	535 615 690 770 925 1085	H+40	1.65
			100	121										1.75
			125	146										1.86
			150	171										1.98
