Rotary Shafts Straight

Rotary shaft is a high precision shaft product, which can be used in combination with bearing, roller, pulley or other bushing products. In addition to excellent dimensional and geometric tolerances, it offers a variety of alterations.

Type	D Tolerance	Material	Surface Treatment	D (mm)	L (mm)
E-SFHR	h8 (Grinding Rod)	General structural steel or carbon steel	Ferroferric Oxide Protective Film	2~50	15~1000
E-PSFHR			Electroless Nickel Plating
E-SSFHR		Austenitic stainless steel	-
E-SFR	g7 (Grinding Rod)	General structural steel or carbon steel	Ferroferric Oxide Protective Film
E-PSFR			Electroless Nickel Plating
E-SSFR		Austenitic stainless steel	-

If there are requirements for rust prevention, give priority to the products with surface treatment of electroless nickel plating and products made of austenitic stainless steel. For surface treatment and anti-rust method, please click Anti-Rust Method.

h8 (Grinding Rod)

Part Number			L 0.1mm increments
Type	Dh8
E-SFHR E-PSFHR E-SSFHR	3	0 -0.014	15.0～ 150.0
	4	0 -0.018	15.0～ 200.0
	5		15.0～ 250.0
	6		15.0~400.0
	8	0 -0.022	15.0~500.0
	10		15.0~600.0
	12	0 -0.027	15.0~700.0
	15		15.0~800.0
	17		30.0~900.0
	20	0 -0.033	30.0~1000.0
	25		50.0~1000.0
	30		60.0~1000.0
	35	0 -0.039	70.0~1000.0
	40		80.0~1000.0
	50		100.0~1000.0

g7 (Grinding Rod)

Part Number			L 0.1mm increments
Type	Dg7
E-SFR E-PSFR E-SSFR (D13, 16, 18 and 22 are not available for E-SSFR)	2	-0.003 -0.012	15.0～50.0
	2.5		15.0～50.0
	3		15.0 ～ 150.0
	4	-0.004 -0.016	15.0 ～ 200.0
	5		15.0 ～ 250.0
	6		20.0～ 300.0
	8	-0.005 -0.020	15.0～ 500.0
	10		15.0～ 600.0
	12	-0.006 -0.024	15.0 ～ 700.0
	13		15.0 ～ 700.0
	15		15.0～ 800.0
	16		15.0～ 900.0
	17		30.0～ 900.0
	18		30.0~900.0
	20	-0.007 -0.028	30.0～ 1000.0
	22		40.0～ 1000.0
	25		50.0～ 1000.0
	30		60.0～ 1000.0
	35	-0.009 -0.034	70.0～ 1000.0
	40		80.0～ 1000.0
	50		100.0～ 1000.0

Feature 1: Extensively applied in various precision equipment thanks to high precision dimensional tolerance and geometric tolerance.
Feature 2: The shaft is intended for rotating purposes such as transmitting power and conveying objects, and used in combination with bearing, roller and timing pulley.

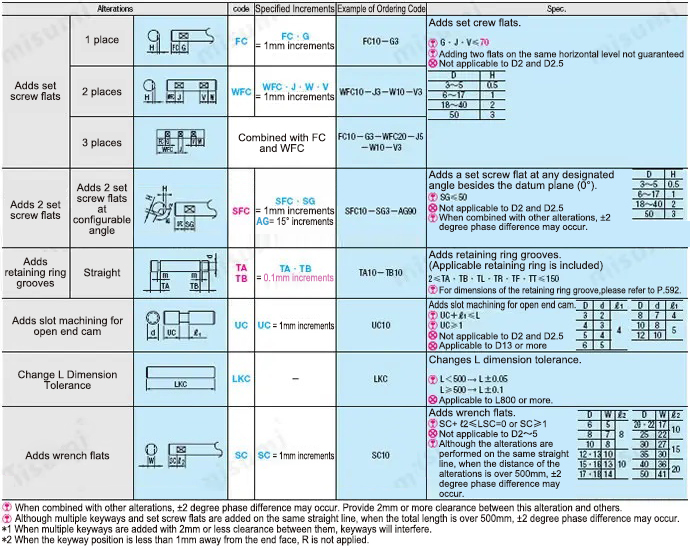

Feature 3: A variety of alterations are available to accommodate different environments.
Feature 4: The product has excellent anti-corrosion performance due to the surface treatment of electroless nickel plating and the use of austenitic stainless steel as the body material.

Rotary shaft selection method
STEP① Select the bearing support method
● Shaft end shape　～Please select tapped or retaining ring groove, etc. according to the fixing method～
