Rotary Shaft, Both End Double Step
Brand :
MISUMI
Caution
- Download Free! >> Economy Series Catalog (TH-EN-FY25) CLICK here
Product Description
[Features]
• Both end double step rotary shaft for use with bearings, rollers, pulleys and bushings.
• High-precision dimensional and geometric tolerances help maintain fit in precision equipment.
• Austenitic stainless steel option is preferred when rust prevention is required.
[Use]
• Used in flat belt roller conveyors, timing pulley drives, and bearing-coupling rotating structures.
Product Overview
A shaft is a high-precision shaft product that can be used in conjunction with bearings, rollers, pulleys, or other bushing products to transmit power and convey objects. It features excellent dimensional and geometric tolerances, and a variety of additional processing options are available.
Dimensional Drawing
Specifications Overview
| Type |  Material |  Surface Treatment | D(mm) | L(mm) |
| E-SFRJ | General structural steel or carbon steel | Ferroferric Oxide Protective Film | 6 to 30 | 20 to 796 |
| E-SSFRJ | Austenitic Stainless Steel | - |
If there are requirements for rust prevention, give priority to products made of austenitic stainless steel. Please click
Rust Prevention MethodsSpecifications Table
| Part Number | 0.1mm Increment | 1mm Increment | (Y) max. | |||||
 Type |  Dg7 |  L |  F・ T |  H・ Z |  G・ V |  P・ Q | ||
| E-SFRJ E-SSFRJ (D13, 16, 17, 18 and 22 are not available for E-SSFRJ) | 6 | -0.004 -0.016 | 20.0～296.0 | 2＜F≤P×5 2＜T≤Q×5 | 2≤H 2≤Z | 4～ 5 | 3 ～ 4 | 300 |
| 8 | -0.005 -0.020 | 20.0～396.0 | 4～ 7 | 3 ～ 6 | 400 | |||
| 10 | 20.0～496.0 | 4～ 9 | 3 ～ 8 | 500 | ||||
| 12 | -0.006 -0.024 | 25.0～596.0 | 6～11 | 5～10 | 600 | |||
| 13 | 25.0～596.0 | 6～12 | 5～11 | |||||
| 15 | 25.0～696.0 | 6～14 | 5～13 | 700 | ||||
| 16 | 25.0～796.0 | 6～15 | 5～14 | 800 | ||||
| 17 | 25.0～796.0 | 6～15 | 5～14 | 800 | ||||
| 18 | 25.0～796.0 | 6～17 | 5～16 | 800 | ||||
| 20 | -0.007 -0.028 | 30.0～796.0 | 6～19 | 5～18 | 800 | |||
| 22 | 30.0～796.0 | 6～21 | 5～20 | 800 | ||||
| 25 | 30.0～796.0 | 11～24 | 10～23 | 800 | ||||
| 30 | 30.0～796.0 | 11～29 | 10～28 | 800 | ||||
When D-G(V)≤2, G(V)-P(Q)≤2, chamfer C at the step is 0.2 or less. P＜G＜D, Q＜V＜DAlteration
Product Feature
Feature 1: With high-precision dimensional and geometric tolerances, it is widely used in various precision equipment.
Feature 2: Shafts used for rotational purposes such as transmitting power and conveying objects, used in conjunction with bearings, rollers, and timing pulleys.
Feature 3: Multiple additional processing options available to meet different usage environments.
Feature 4: Products made of austenitic stainless steel offer excellent corrosion resistance.
Feature 2: Shafts used for rotational purposes such as transmitting power and conveying objects, used in conjunction with bearings, rollers, and timing pulleys.
Feature 3: Multiple additional processing options available to meet different usage environments.
Feature 4: Products made of austenitic stainless steel offer excellent corrosion resistance.
Usage Method
| Example of Use |  |  |  |
| Recommended Applications | Flat Belt Roller Conveyor Mechanism The rollers are connected to drive the flat belt, enabling the transportation of objects. | Timing Pulley Drive Mechanism Connects the driven shaft to the timing pulley to achieve reverse transmission. | Bearing and Coupling Rotating Structure By connecting bearings and couplings, same-direction transmission is achieved. |
Precautions
Shaft Selection Method
STEP (1) Bearing Support Method Selection

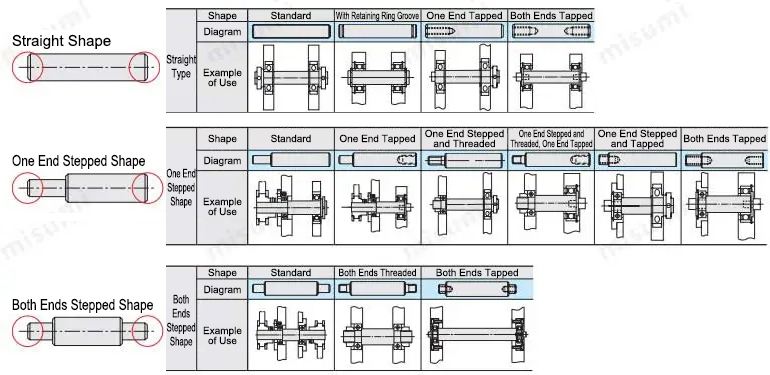

● Shaft End Shape ~ Please select internal thread or retaining ring groove, etc. according to the fixing method ~
STEP (1) Bearing Support Method Selection
● Shaft End Shape ~ Please select internal thread or retaining ring groove, etc. according to the fixing method ~
Example of Use
Equipment Name: Embedded Fixture
Function Description:
An insert assembly jig for embedding into rubber and aluminum workpieces, allowing the protruding part of the rubber to be inserted into the recessed part of another workpiece. The load can be adjusted using bolts and tightened with the roller.
The Role of the Shaft in Mechanisms
(1) The shaft is used as a fastening connector in mechanisms, bearing the pressure applied by the spring and connecting the roller to press the workpiece.
(2) Excellent roundness and straightness ensure even force distribution during use of assembly jigs, enhancing the overall stability of the fixture.
For details, click
Embedded Fixture
Function Description:
An insert assembly jig for embedding into rubber and aluminum workpieces, allowing the protruding part of the rubber to be inserted into the recessed part of another workpiece. The load can be adjusted using bolts and tightened with the roller.
The Role of the Shaft in Mechanisms
(1) The shaft is used as a fastening connector in mechanisms, bearing the pressure applied by the spring and connecting the roller to press the workpiece.
(2) Excellent roundness and straightness ensure even force distribution during use of assembly jigs, enhancing the overall stability of the fixture.
For details, click
Embedded FixtureApplication Industries
