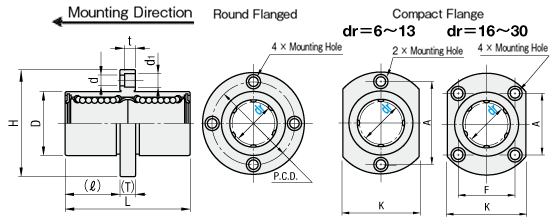

Flanged Linear Bushing - Standard, Center Flanged, Medium[RoHS Compliant]

	dr		D			L	(ℓ)	H	(T)	d	d1	t	P.C.D.	F	A	K	Eccentricity (Max.)	Balls Rows	* Perpendicularity	Basic Load Rating		Reference Mass (g)
			Surface Treatment	Surface Treatment
	Tolerance		Not Provided	Provided		Tolerance														C (Dynamic) N	Co (Static) N	Round Flange	Compact Flange
			Tolerance	Tolerance
6	+0.003 -0.013	12	+0.006 -0.015	+0.006 -0.020	29	±0.6	12	28	5	3.5	6	3.1	20	—	20	18	0.03	4	0.03	226	310	27	24
8		15			37		16	32					24	—	24	21				310	452	47	43
10		19	+0.006 -0.018	+0.006 -0.023	47		20.5	40	6	4.5	7.5	4.1	29	—	29	25				508	718	85	77
12		21						42					32	—	32	27				634	814	89	81
13		23						43					33	—	33	29				640	826	109	102
16		28			56		25	48					38	22	31	34		5		1164	1448	157	149
20	0.003 -0.015	32	+0.006 -0.021	+0.006 -0.027	65		28.5	54	8	5.5	9	5.1	43	24	36	38	0.04		0.04	1554	2068	232	219
25		40			83		37.5	62					51	32	40	46		6		1725	3068	481	452
30		45			90		40	74	10	6.6	11	6.1	60	35	49	51				2440	3974	560	494

* Perpendicularity of D to flange mounting surface
[ ! ] Anti-rust oil is applied at the time of delivery.
[ ! ] Flanged Type Height-Adjusting Spacers can be selected from here.
[ ! ] For shaft and housing tolerances, see "Recommended Tolerance of Shaft Diameter / Housing Diameter."

■Recommended Tolerance of Shaft Diameter / Housing Diameter

dr	Shaft Dia.	Housing Dia.
	g6 Tolerance		Tolerance
6	−0.004 −0.012	12	+0.024 +0.006
8	−0.005 −0.014	15
10		19	+0.027 +0.006
12	−0.006 −0.017	21
13		23
16		28
20	−0.007 −0.020	32	+0.031 +0.006
25		40
30		45

■Regular Maintenance
(1) For grease lubrication, apply grease to the ball rows within the linear bushings before use, then periodically apply grease during the use.
The grease has an effect of reducing friction by forming a layer between the balls and shaft rolling surfaces, preventing seizures.
Grease loss and deterioration will cause shorter life of linear guides.
(2) Recommended Grease: Lithium soap based grease
(3) Recommended Lubrication Intervals: Every 6 month
Recommended lubrication is that every 3 months when travel distance is extensive, or every 1000 km when travel distance exceeds 1000 km within the period.
(4) If large moment load (offset load) is to be applied, Short / Single Type Linear Bushings are not suitable.
Use of Double Type or Multiple Linear Bushings is recommended.

■Dust-Proofing Measures
Please be aware that if foreign objects or dusts get inside the linear bushing, it will interfere with the circulation of the steel balls and cause failures.
Please attach a dust cover or protection cover for harsh usage environments.

■Use of a hardened shaft with g6 tolerance is recommended for MISUMI Linear Bushings.
