Special Brass Oil Free Bushings Shouldered
Brand :
MISUMI
Caution
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part02 CLICK here
Product Description
Oil Free Bushings Shouldered are an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
● Inner Diameter Minimum/Maximum (mm.) : 50 and 30
● Outer Diameter Minimum/Maximum (mm.) : 9 and 40
● Overall Length Minimum/Maximum (mm.) : 10 and 50
● Material : Special brass
[Application]
Oil Free Bushings Shouldered are commonly used in various applications in factory automation systems
Product Overview of Oil Free Bushings
1. Oil Free Bushings has low maintenance frequency.
2. Oil Free Bushings more resistant to heavy loads than rolling bearings.
3. Oil Free Bushings can be used under severe conditions of "high" and "low" temperatures.
4. Oil Free Bushings are thin and space-saving, compared to rolling bearings.
5. Oil Free Bushings can be used for linear and rotary motions.
2. Oil Free Bushings more resistant to heavy loads than rolling bearings.
3. Oil Free Bushings can be used under severe conditions of "high" and "low" temperatures.
4. Oil Free Bushings are thin and space-saving, compared to rolling bearings.
5. Oil Free Bushings can be used for linear and rotary motions.
Product Features of Oil Free Bushings
1. Oil Free Bushings, Specification of special brass alloy substrate saturated with lubricant.
2. Oil Free Bushings, Excellent resistance to abrasion and sintering when lubricated with lubricant and grease.
3. Oil Free Bushings, Ideal for working conditions of high speed and light load when supplied with oil.
2. Oil Free Bushings, Excellent resistance to abrasion and sintering when lubricated with lubricant and grease.
3. Oil Free Bushings, Ideal for working conditions of high speed and light load when supplied with oil.
Dimensional Drawing of Oil Free Bushings
Dimensional Drawing (Unit: mm)
It is recommended that lubrication be performed regularly according to the material properties.
Fixing Method: It is recommended to fix the bushing by pressing it in.
Recommended Mating Shaft f8 or g6
Material: special brass
It is recommended that lubrication be performed regularly according to the material properties.Fixing Method: It is recommended to fix the bushing by pressing it in.Recommended Mating Shaft f8 or g6
Material: special brassSpecification Table of Oil Free Bushings
| Part Number |  L | Dr6 | Wall Thickness (N) | H | t | *Housing Diameter | ||||||||||
 Type |  dE7 | Reference Dimension | Tolerance (H7) | |||||||||||||
| E-SHFZ | 5 | +0.032 +0.020 | 10 | 12 | 9 | 2 | 14 | 2 | 9 | +0.015 0 | ||||||
| 6 | 10 | 12 | 15 | 10 | 16 | 10 | ||||||||||
| 8 | +0.040 +0.025 | 10 | 12 | 15 | 20 | 12 | 20 | 12 | +0.018 0 | |||||||
| 10 | 10 | 12 | 15 | 20 | 14 | 22 | 14 | |||||||||
| 12 | +0.050 +0.032 | 10 | 12 | 15 | 20 | 25 | 30 | 18 | 3 | 25 | 3 | 18 | ||||
| 13 | 12 | 15 | 20 | 19 | 26 | 19 | +0.021 0 | |||||||||
| 15 | 10 | 12 | 15 | 20 | 25 | 21 | 28 | 21 | ||||||||
| 16 | 12 | 15 | 20 | 25 | 30 | 22 | 29 | 22 | ||||||||
| 20 | +0.061 +0.040 | 15 | 20 | 25 | 30 | 40 | 30 | 5 | 40 | 5 | 30 | |||||
| 25 | 30 | 40 | 50 | 35 | 45 | 35 | +0.025 0 | |||||||||
| 30 | 30 | 40 | 50 | 40 | 50 | 40 | ||||||||||
| *The values for the housing diameter are recommended dimensions. | ||||||||||||||||
Usage Method of Oil Free Bushings
Specifications Overview of Oil Free Bushings
Example Use of Oil Free Bushings
Oil Free Bushings, Lifting mechanism without seizure (avoiding seizure of guide and achieving uniform load distribution)
Dimensional Drawing
(Unit: mm)
It is recommended that lubrication be performed regularly according to the material properties.
Fixing Method: It is recommended to fix the bushing by pressing it in.
Recommended Mating Shaft f8 or g6
Material: special brass
It is recommended that lubrication be performed regularly according to the material properties.Fixing Method: It is recommended to fix the bushing by pressing it in.Recommended Mating Shaft f8 or g6 Material: special brassSpecification Table
| Part Number | L | Dr6 | Wall Thickness (N) | H | t | *Housing Diameter | ||||||||||
| Type | dE7 | Reference Dimension | Tolerance (H7) | |||||||||||||
| E-SHFZ | 5 | +0.032 +0.020 | 10 | 12 | 9 | 2 | 14 | 2 | 9 | +0.015 0 | ||||||
| 6 | 10 | 12 | 15 | 10 | 16 | 10 | ||||||||||
| 8 | +0.040 +0.025 | 10 | 12 | 15 | 20 | 12 | 20 | 12 | +0.018 0 | |||||||
| 10 | 10 | 12 | 15 | 20 | 14 | 22 | 14 | |||||||||
| 12 | +0.050 +0.032 | 10 | 12 | 15 | 20 | 25 | 30 | 18 | 3 | 25 | 3 | 18 | ||||
| 13 | 12 | 15 | 20 | 19 | 26 | 19 | +0.021 0 | |||||||||
| 15 | 10 | 12 | 15 | 20 | 25 | 21 | 28 | 21 | ||||||||
| 16 | 12 | 15 | 20 | 25 | 30 | 22 | 29 | 22 | ||||||||
| 20 | +0.061 +0.040 | 15 | 20 | 25 | 30 | 40 | 30 | 5 | 40 | 5 | 30 | |||||
| 25 | 30 | 40 | 50 | 35 | 45 | 35 | +0.025 0 | |||||||||
| 30 | 30 | 40 | 50 | 40 | 50 | 40 | ||||||||||
| *The values for the housing diameter are recommended dimensions. | ||||||||||||||||

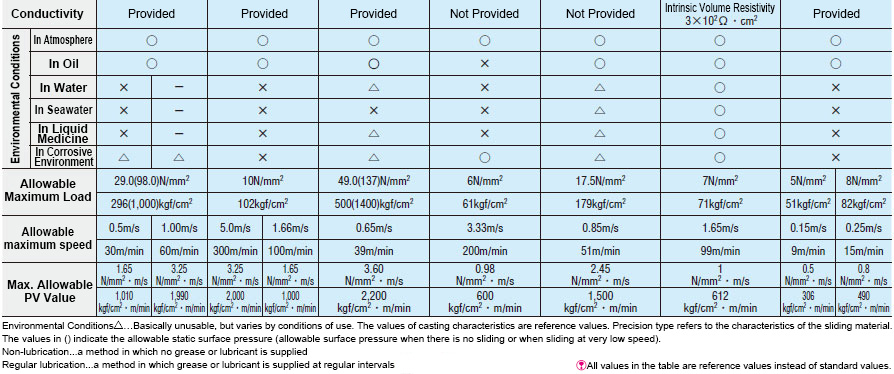

Material Properties
