Photoelectric Sensors Square Type
Brand :
MISUMI
Caution
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part12 CLICK here
Product Description
Economy series Square Type Photo Microsensors
Photoelectric Sensors are an economy item, The price is cheaper than the MISUMI standard product. They offer a wide variety of shape to choose from.
[Feature]
● Shape : Compact
● Detection Distance (mm.) : 15,100,300 and 2000
● Sensing modes : Diffuse-reflective, Mirror-reflective and Through-beam
● Output Mode : NPN and PNP
[Application]
Photoelectric Sensors are commonly used in industrial applications for example conveyor belts, assembly lines and so on
Product Overview
Product Comparison
The detection distance is based on a white background as the standard. When the detected object is deep black, the detection distance is reduced by more than 70%. Please note and consider selecting a BGS type sensor.
*1: The mounting bracket are included.
*2: The reflector and mounting bracket are included.

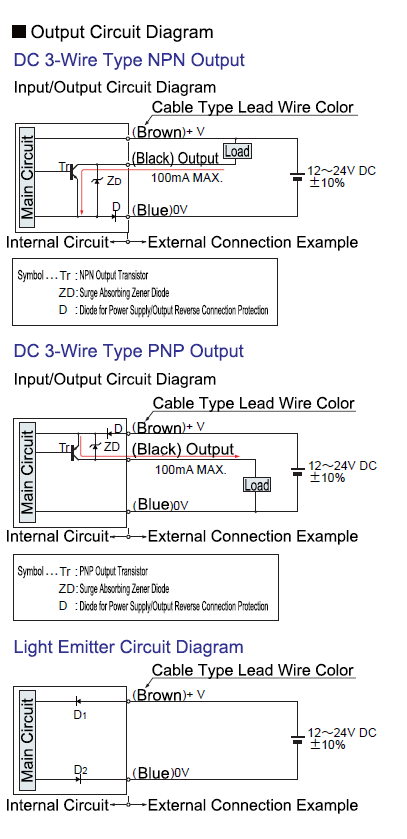

■ Photoelectric Sensors Comparison of MISUMI Standard Product and Economy Series
| MISUMI Standard Product MZ-T | Economy Series E-MSMT61N-2M | ||
| Output Format | NPN | NPN | |
| Detection Distance (mm) | 25m | 15m | |
| Response Time | 500μs or less | 5 to 10μs or less | |
| Consumed Current | Light Emitter | 8mA or less | 20mA or less |
| Light Receiver | 11mA or less | 10mA or less | |
| Projected Light Source | Red LED | Red LED | |
| RoHS10 | Compliant | Non-compliant | |

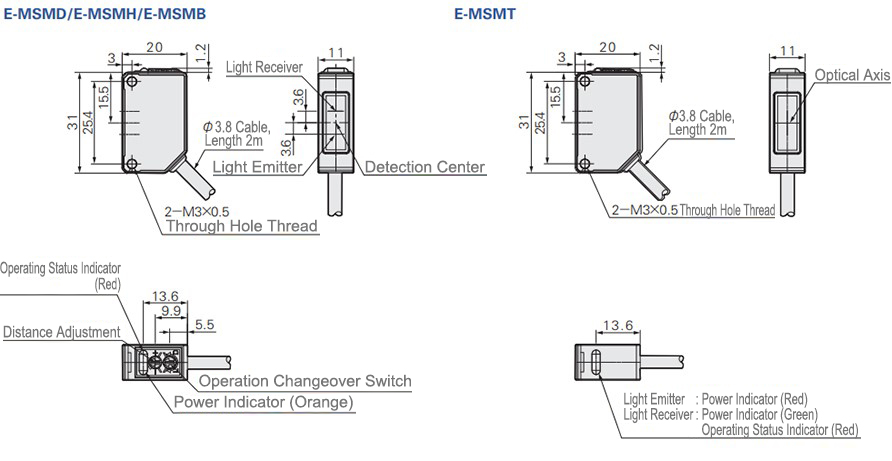

Dimensional Drawing
Specification Overview
Specification Table
The detection distance is based on a white background as the standard. When the detected object is deep black, the detection distance is reduced by more than 70%. Please note and consider selecting a BGS type sensor.
| Part number | Detection Method | Shape | Light source | Detection Range | Output | Adjustment Method | |
| NPN Type | PNP Type | ||||||
| E-MSMD61N-2M | E-MSMD81P-2M | Diffuse Reflective Type |  | Infrared Light | 100 mm | NO/NC | Knob Type |
| E-MSMH91N-2M | E-MSMH91P-2M | 300 mm | |||||
| E-MSMD62N-2M | E-MSMD82P-2M | 1000 mm | |||||
| E-MSMB62N-2M | E-MSMB82P-2M | Retroreflective |  | Red Light | 300 to 3000 mm | ||
| E-MSMT61N-2M | E-MSMT81P-2M | Through-beam Type |  | Infrared Light | 15000 mm | ||
*1: The mounting bracket are included.
*2: The reflector and mounting bracket are included.
Product Feature
Precautions
This product is intended for use in industrial environments
Please note that excessive stretching of the wire may cause breakage
Please perform wiring with the power turned off
Note: Incorrect wiring may damage the sensor
Please use the power supply voltage within the rated range
Please ensure the power supply ground terminal is grounded
Please note that excessive stretching of the wire may cause breakage
Please perform wiring with the power turned off
Note: Incorrect wiring may damage the sensor
Please use the power supply voltage within the rated range
Please ensure the power supply ground terminal is grounded
