Cable Carriers Low Particle Generation, Low Noise, Inner Height 30~50mm (Seperator Attachable)

Brand :

MISUMI

Caution

Please note: One crossbar is provided for every two links
Download Free! >> Economy Series Catalog (TH-EN-FY25) CLICK here

Product Description

Cable Carriers - Low Particle Generaion, Low Noise
Cable carriers are essential equipment used in automation machines to effectively organize and prevent the tangling and twisting of cables. They provide a wide range of sizes to choose from.
[Feature]
- Inner Width Minimum / Maximum (mm.) : 30 and 100
- Outer Width Minimum / Maximum (mm.) : 46 and 116
- Bending Radius (mm.) : 55, 75, 100, 125 and 150
- Number of links (Pcs.) : can select between 10 and 65
- Material: PA+Glass Fiber
[Application]
It is used in automation machines to organize and prevent issues from the cable tangling and twisting.

Economy Low Particle Generation, Low Noise Cable Carrier

Low Noise Sensitive Environment High-quality

- Low particle generation ideal for sensitive environments

- Available in various widths

- Superior noise reduction for quieter operations

- High-quality PA+Glass Fiber material

- Suitable for various custom applications

Economy Low Particle Generation, Low Noise Cable Carrier

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

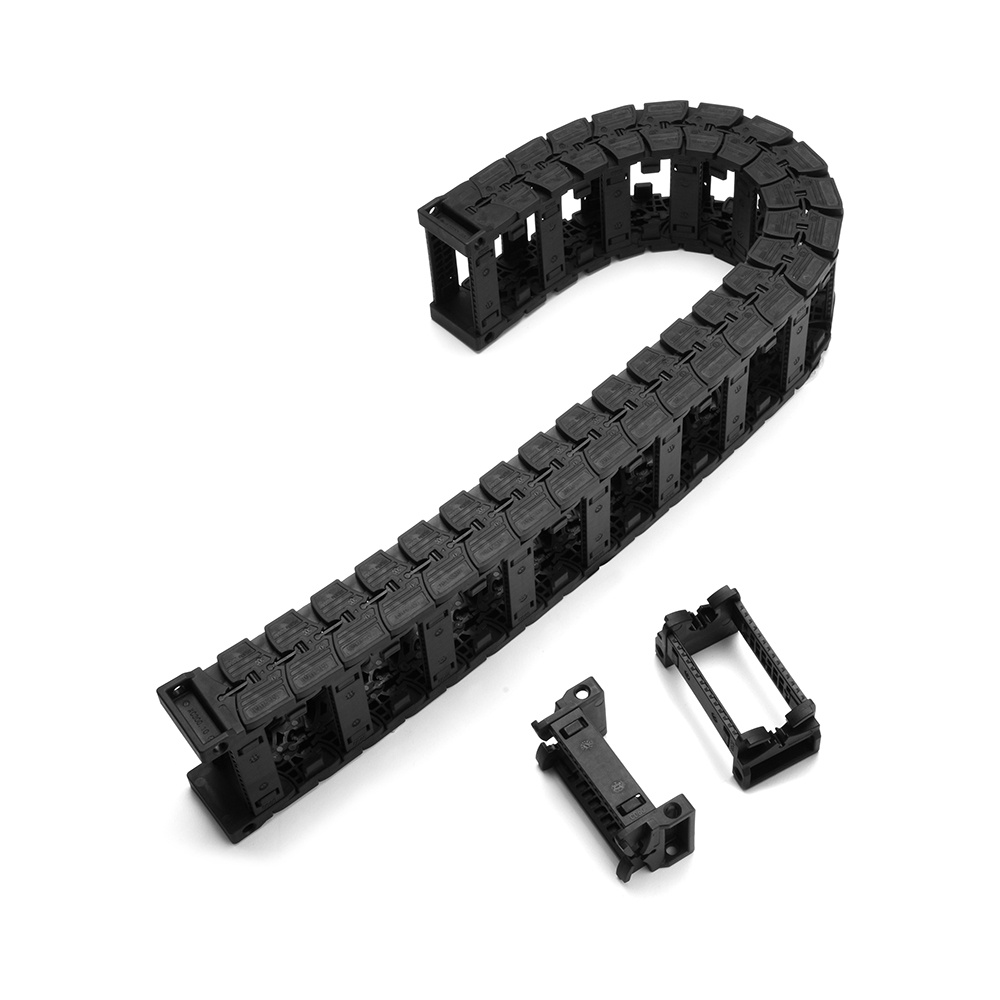

Product Overview

A cable carrier that prevents cables or air tubes connected to moving parts of equipment from becoming entangled during twisting or stretching.
Special link structure provides low dust generation and low noise features. More suitable for use in noise-sensitive equipment.

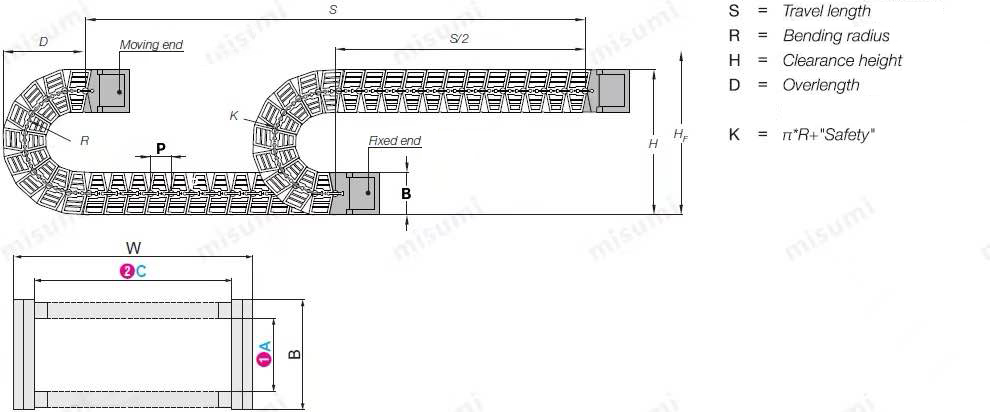

Dimensional Drawing

Cross-sectional view of chain link

Connector Dimensional Drawing

Inner height 22
	Material: PA + glass fiber

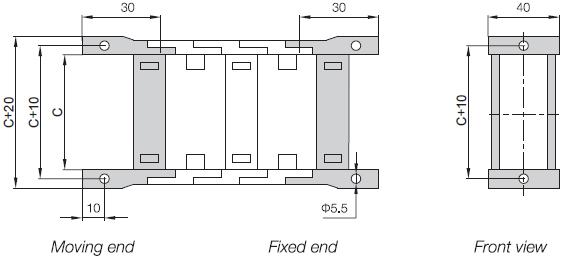

Inner height 30
	Material: PA + glass fiber

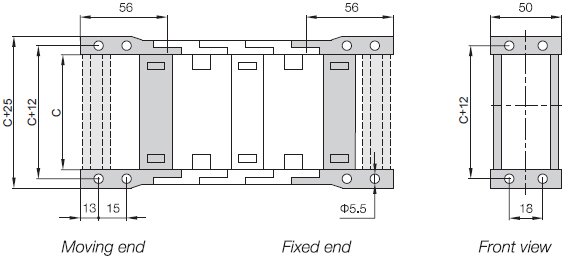

Inner height 40
	Material: PA + glass fiber

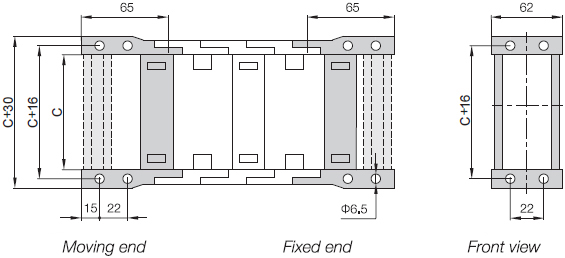

Inner height 50
	Material: PA + glass fiber

Technical specifications
Speed/Acceleration MLa	max. 20 [m/s] / max. 100 [m/s²]
Speed/Acceleration MLb	max. 3 [m/s] / max. 6 [m/s²]
Permitted Temperature	-40°C to 120°C
Flammability Class	UL94 HB

Load
Inner height 22

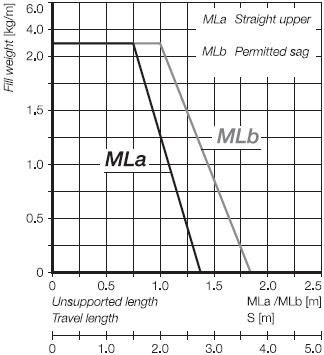

Inner height 30

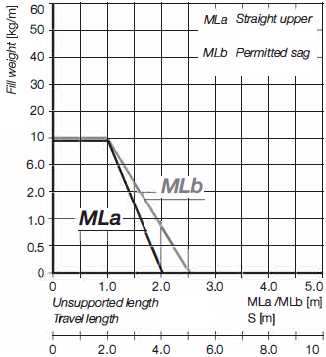

Inner height 40

Inner height 50

Specification Table

Type		Outer Height B	Inner Width C	Outer Width W	Pitch P	Available Bending Radius R	Number of chain links	Optional Accessories for Installation				Installation Dimensions (corresponding to bending radius)			Required Space Height H_F	Weight Kg/m ≈

Type	Inner Height A							Connector comb plate	Number of connector comb plates	Separator	Number of Separators	H	D	K

E-MXA (can be opened inwards or outwards)	22	27	20	32	20	45 50 75	10 to 65	-	-	S22	4 to 65	117 127 177	79 84 109	185 200 280	H+40	0.28
			30	42												0.29
			40	52												0.3
			50	62												0.35
			60	72												0.38
	30	40	20	36	25	55 75 100 125 150	10 to 65	Z30	2–10	S30	4 to 65	150 190 240 290 340	100 120 145 170 195	225 290 365 445 525	H+40	0.69
			25	41												0.72
			30	46												0.75
			40	56												0.77
			50	66												0.8
			60	76												0.83
			70	86												0.85
			75	91												0.86
			80	96												0.88
			90	106												0.9
			100	116												0.92
			120	136												0.95
			125	141												0.96
			140	156												0.99
			150	166												1.02
			175	191												1.12
	40	50	30	50	28	60 75 100 125 150	10 to 65	Z40	2–10	S40	4 to 65	170 200 250 300 350	113 128 153 178 203	245 295 375 450 530	H+40	1.25
			40	60												1.3
			50	70												1.35
			60	80												1.39
			70	90												1.42
			75	95												1.45
			80	100												1.48
			90	110												1.5
			100	120												1.55
			120	140												1.64
			125	145												1.66
			140	160												1.72
			150	170												1.78
			175	195												1.88
	50	62	30	54	30	75 100 125 150 200	10 to 65	-	-	S50	4 to 65	212 262 312 362 462	136 161 186 211 261	300 375 455 535 690	H+40	1.65
			40	64												1.69
			50	74												1.72
			60	84												1.78
			70	94												1.81
			75	99												1.84
			80	104												1.88
			90	114												1.91
			100	124												1.95
			120	144												1.98
			125	149												2.01
			140	164												2.1
			150	174												2.15
			175	199												2.25

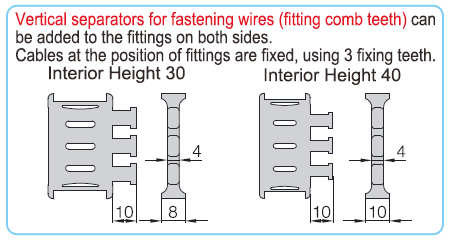

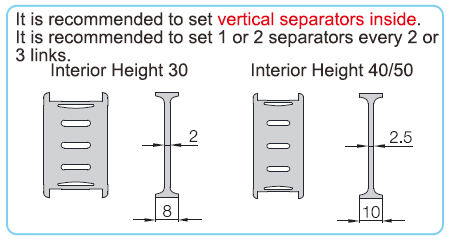

Connector comb plates and separator plates can be added when selecting products. For details on the quantity of connector comb plates and separator plates, please refer to the MISUMI sales website.

Product Features

Material: PA + glass fiber
Inner height: 22 mm, 30 mm, 40 mm, 50 mm

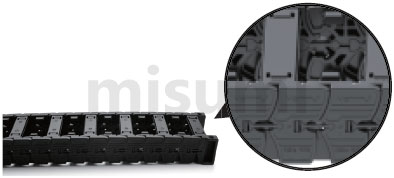

Features: The links are connected by elastic pieces, reducing friction and lowering noise

Noise	Noise reduced by 40% compared to MISUMI standard type
Cleanroom Class	ISO Class 4

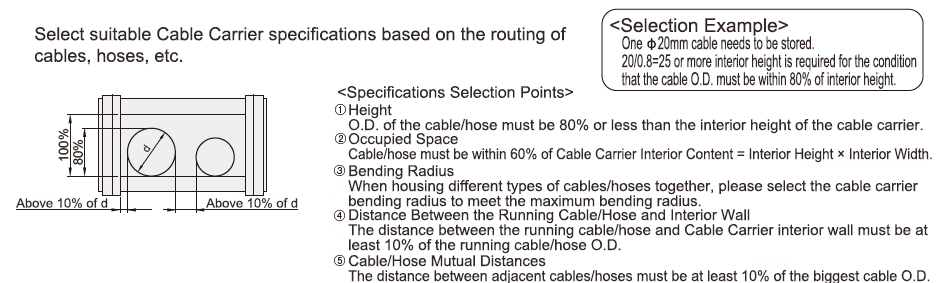

Precautions

If this is a brand-new design, the number of chain links in the cable carrier may be insufficient. It is recommended to select 1 or 2 extra links as spares and make adjustments (removal) when installing the equipment.
Check whether the cable comes into excessive contact with the inner or outer sides of the cable carrier throughout the entire travel range.

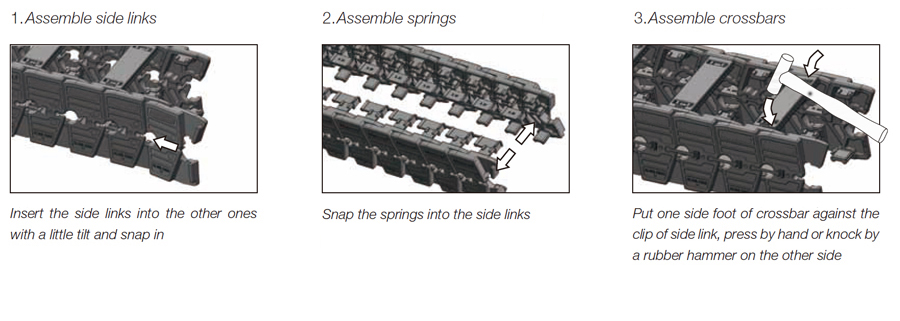

● Assembly of the quiet cable carrier
Drag chain cable protection chain

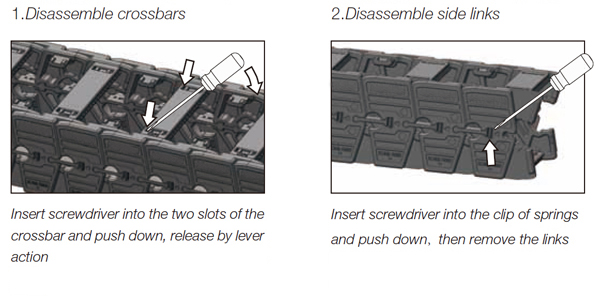

● Disassembly of the quiet cable carrier
Drag chain cable protection chain

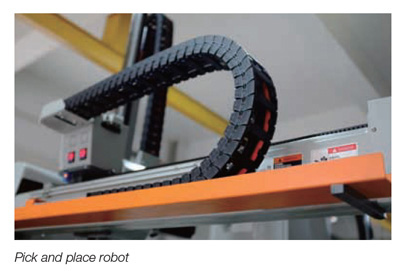

Example of Use

Economy TRVVPS drag chain cable, 5 million cycles, twisted pair shielded type, 300 V	Economy TRVV drag chain cable, 5 million cycles, 300 V	Economy TRVVP drag chain cable, 5 million cycles, shielded type, 300 V	Economy sensor signal transmission, 30 V unshielded, fixed cable
