Proximity Sensors Square Body

Brand :

MISUMI

Caution

Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part12 CLICK here

Product Description

Proximity Sensors Square Body
These Proximity Sensors are an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
● Shape : Sqaure
● Detection Direction : Front Type
● Detection Distance (mm.): 5
● Output Method : NPN (Can select between Normally Open and Normally Closed)
● Wire Length (m.): 2
[Application]
It is an important component in the automation system ,its primary function is to detect objects without requiring any physical contact.

Economy Proximity Sensors

NPN Output Compact Square Design High Protection Rating

- Available in Normally Open (NO) and Normally Closed (NC) configurations. Flexible integration into existing systems, simplifying the design and installation process.

- Space-saving square body design. Specific dimensions provided.

- Operates within specified voltage range. Allows for a wide range of power supply options, with a specified maximum load current.

- IP67 rated for dust and water resistance. Durable and reliable in challenging conditions, reducing maintenance costs and downtime.

- Response time of 0.5ms. Quick switching frequency of 500Hz.

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

Product Overview

A proximity switch is a type of position switch that operates without mechanical direct contact with moving parts. When an object approaches the sensing surface of the switch within the operating distance, the switch can be activated without mechanical contact or applying any pressure, thereby driving DC electrical devices or providing control commands to computer (PLC) systems. A proximity switch is a type of switch sensor (i.e., a contactless switch). It has the characteristics of both limit switches and micro switches, as well as sensing capabilities. It operates reliably, has stable performance, fast frequency response, long service life, strong anti-interference ability, and features such as waterproofing, shock resistance, and corrosion resistance.

Product Overview

Product Comparison

Model		MISUMI Standard Product EMX4	Economy Series C-Q17
Detection Distance		4mm	5mm
Output Format		NPN N.O. (Normally Open)	NPN N.O. (Normally Open)/NPN N.C. (Normally Closed)
Sensor Part Dimensions	Sensor Size	27mm x 12mm x 12mm	29.4mm x 17mm x 17mm
	Mounting Holes	φ3.2	2 x φ3.4
Power Supply		DC 3-wire	DC 3-wire
Rated Operating Voltage		12/24VDC (10 to 30VDC) Allowable ripple rate 3% p-p or below	12/24VDC (10 to 30VDC) Allowable ripple rate 10% p-p or below
Voltage Drop		1V or less	2.5V or less
Switch Hysteresis		Approx. 20% or less	15% or less
Operating Ambient Temperature		-10 to +50°C	-25 to +70°C
Temperature Characteristics		Within ±20% (for operation distance at +23°C)	Within ±10% (for operation at +25°C)
Protection Rating		IP67	IP67
Case Material		Polycarbonate	ABS

[ ! ] For other detailed specifications, see the standards table below.

Dimensional Drawing

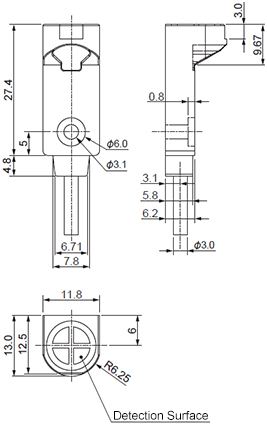

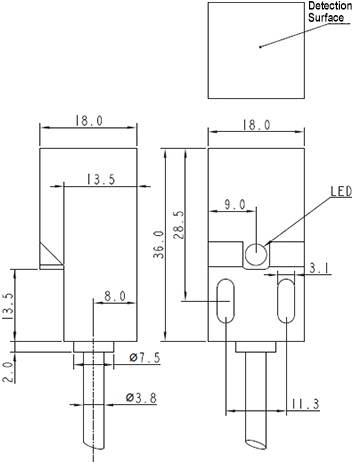

Detection distance 4 mm E-MSMQ23N/E-MSMQ23P	Detection distance 5 mm E-Q17	Detection distance 8 mm E-MSMQL17N/E-MSMQL17P (Oblong hole mounting)

Specification Table

Part Number

Output Type

Operating
Mode

Sensing
Distance

Mounting Method

Operating
Voltage

Protection
Rating

Operating
Temperature

Short-circuit
Protection

Overload
Current

Sensing Surface
Material

Wire Length

C—Q17—N01

DC 3-wire (NPN)

Front Detection Type

5 mm

Shielded Type

10 to 30 V DC

IP67

-25°C to +70°C

YES

220 mA

ABS

2 m

C—Q17—N02

E-Q17-P01

3-wire Linear (PNP)

E-MSMQ23N

DC 3-wire (NPN)

4 mm

Unshielded

200 mA

E-MSMQ23P

3-wire Linear (PNP)

E-MSMQL17N

DC 3-wire (NPN)

8 mm

E-MSMQL17P

3-wire Linear (PNP)

	Front Detection Type
	Operating Mode
Part Number	NO	NC	NO
	C-Q17-N01 (NPN) E-Q17-P01 (PNP)	C-Q17-N02 (NPN)	E-MSMQ23N (NPN) E-MSMQ23P (PNP)	E-MSMQL17N (NPN) E-MSMQL17P (PNP)
Sensing Distance	5 mm		4 mm	8 mm
Operating Voltage	10 to 30 V DC
Permissible Pulse Voltage	< 10%
No-Load Current	< 10 mA
Overload Current	200 mA		100 mA	200 mA
Leakage Current	< 0.01 mA
Voltage Drop	< 2.5 V
Switching Frequency	500HZ
Response Time	0.5 ms
Switch Hysteresis	< 15%(Sr)
Repeatability	< 1.0%(Sr)
Protection Rating	IP67
Operating Temperature	-25°C to +70°C
Temperature Drift	< 10%(Sr)
Short Circuit Protection	YES
Sensing Surface Material	ABS
Wire Length	2 m

Product Features

D: Reverse power polarity protection diode
T_r: NPN output transistor
Z_D: Surge absorption Zener diode

Wiring Diagram

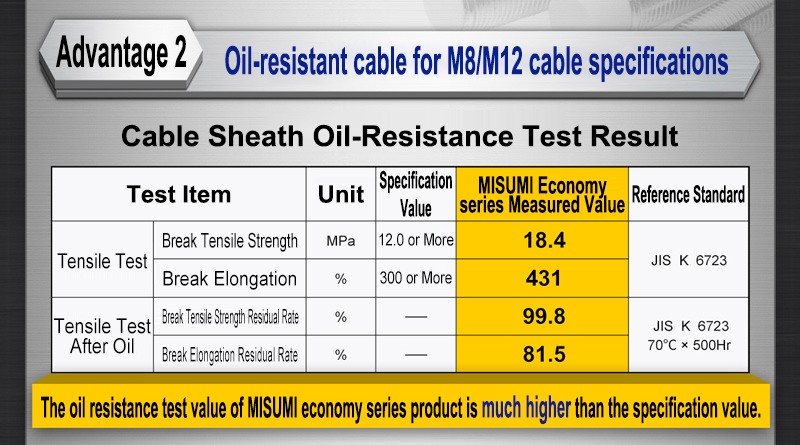

Product Feature

Standard testing equipment, quality guaranteed

Precautions

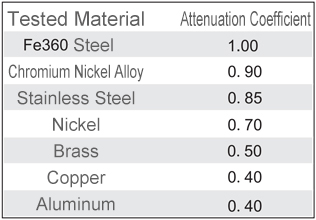

Sensor Attenuation Coefficient
Precautions
