Urethane Pushers Threaded Stud Type with Hex Nut
Brand :
MISUMI
Caution
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part09 CLICK here
Product Description
・ Product type: Urethane Pushers Threaded Stud Type with Hex Nut, C-UNCH series.
・ Bolts with polyurethane coating on the front end provide cushioning, reduce vibration, and noise, and protect the workpiece from damage.
・ Mounting Screw Size: M3, M4, M5, M6, M8, M10, M12
・ Screw length [mm]: 10, 15, 16, 20, 25, 30, 35, 40, 50, 60, 70
・ Urethane hardness: Shore A90
・ This is an economy item; The price is cheaper than the MISUMI standard product.
Product Overview
The bolts with polyurethane coating on the front end can buffer, reduce vibration and noise, and protect the workpiece from damage.

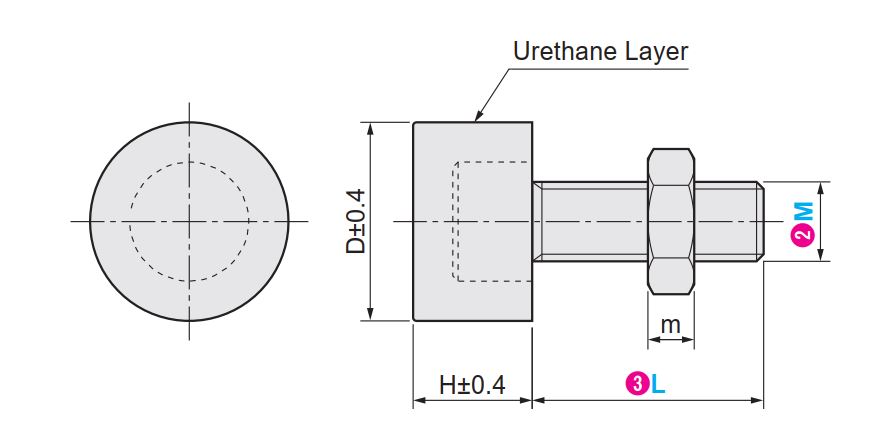

Dimensional Drawing
| Type | Stopper | Bolt |  Accessories (hexagonal nut) | Bolt M | Thread Length L | ||
 Material |  Hardness | Color | Material | Material | |||
| C-UNCH | Urethane | Shore A90 | Green | Stainless Steel | Stainless Steel | M3~12 | 10~70 |
Material color is subject to the actual product.Urethane is integrally molded on the metal core head.
The bolts are standard coarse thread bolts, full-threadSpecification Table
 | Part Number | |||
 Type· M | - |  L | ||
| C-UNCH6 | - | 20 | ||
| Part Number | L Selection | D | H | m | ||||||||||
| Type | M (Coarse Thread) | |||||||||||||
| C-UNCH | 3 | 10 | 16 | 7.5 | 6 | 2.3 | ||||||||
| 4 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 10 | 7 | 3 | ||||
| 5 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 12.5 | 9 | 3.8 | ||||
| 6 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 15 | 10 | 4.8 | ||||
| 8 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 20 | 13 | 6.3 | ||||
| 10 | 30 | 35 | 40 | 50 | 60 | 70 | 25 | 15 | 7.8 | |||||
| 12 | 30 | 35 | 40 | 50 | 30 | 18 | 9.8 | |||||||
The actual product determines the material color. Polyurethane sintered onto bolt head.Product Features
Feature 1: Stopper Bolts length is optional, and it is equipped with a nut for easy adjustment of the installation position.
Feature 2: Stainless steel Stopper Bolts and nuts are applicable to a wide range of environments.
Feature 3: The urethane coating on the front end can actually act as a buffer, and reduce the noise generated when Stopper Bolts impacting on the workpiece.
Feature 2: Stainless steel Stopper Bolts and nuts are applicable to a wide range of environments.
Feature 3: The urethane coating on the front end can actually act as a buffer, and reduce the noise generated when Stopper Bolts impacting on the workpiece.
Precautions
This product is suitable for the installation length adjustment. If the product needed to be fastened to the workpiece surface by thread, please use fixed urethane coated bolt
(Economy series) Urethane coated Stopper Bolts, Male thread fixed type
(Economy series) Urethane coated Stopper Bolts, Female thread fixed type
(Economy series) Urethane coated Stopper Bolts, Male thread fixed type
(Economy series) Urethane coated Stopper Bolts, Female thread fixed type
Example of Use
| Example Use① | Role |
 | In mechanisms of linear motion, it cooperates with buffer to play an auxiliary buffering role. It can also be used alone. |
Related Industries
| Electronic | Automotive | |
 |  | |
| Smart phone | Semiconductor | |
 |  |
Related Products
| (Economy series) Urethane coated Stopper Bolts Male thread fixed type | (Economy series) Urethane coated Stopper Bolts Female thread fixed type | (Economy series) Urethane Coated Stopper Bolts, Standard Flat Type |
 |  |  |
| Typical model: C-USLH12 | Typical model: C-URLH12 | Typical model: C-TMBB6-20 |
| Advantages: strong impact resistance, wrench groove for easy installation. Special structure, urethane coated, not easy to fall off | Advantages: strong impact resistance, wrench groove for easy installation. Special structure, urethane coated, not easy to fall off | Advantages: based on high quality raw materials and special processes, urethane is more wear-resistant and not easy to fall off. |
