Product Description

Timing Belts T5
It is a trapezoidal tooth profile timing belt. This belt always uses for regular torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: T5 (trapezoidal tooth profile)
• Tooth Pitch: 5 mm.
• Belt Width: 10, 15, 20, 25 and 50 mm.
• Circumference Length Shortest/Longest: 185 mm. and 1630 mm.
• Belt Operating Temperature Range: 0 to 80℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine

Economy T5 Timing Belt

Quiet OperationWidth OptionsChloroprene Material

- With a wide range of belt widths and lengths, you can select the perfect belt for your specific equipment needs.

- The glass fiber reinforced core provides exceptional strength and tensile strength, preventing belt elongation and slippage, resulting in consistent power transmission.

- The accurately designed trapezoidal tooth profile guarantees smooth and efficient power transmission, minimizing noise and vibration for optimal performance.

- Engineered to function reliably in temperatures ranging from 0°C to 80°C, these belts offer versatility across various operating conditions.

- The smooth tooth profile contributes to minimal noise generation, creating a quieter working environment.

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

Product Overview

Usually, timing pulleys and timing belt are widely used to design mechanisms for transmitting rotational power generated by motors.
Driving and transmission are realized through the engagement between the teeth of timing pulleys and timing belts.

Dimensional Drawing

■ Material

Material
①Main Body	②Core Wire
Chloroprene Rubber	Glass Fiber

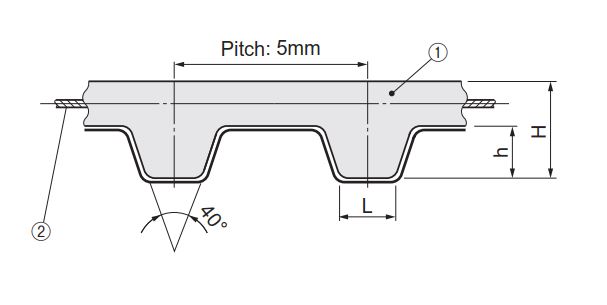

Dimensional Drawing of MISUMI Economic Type Toothed Timing Belt

Specification Table

Types	Nominal Width	Pitch (mm)	H	h	L	Unit weight g/m (Width：10mm)

T5	100 (10mm) 150 (15mm) 200 (20mm) 250 (25mm)	5	2.2	1.2	1.8	20

Operating Temperature 0 to 80℃

Belt circumference length is core wire length

The model number on the back of the product is the supplier model.

For the transmission capacity and design method of economy series timing belt, please refer to the national standard (GB) design manual.

Weight is a theoretical value for reference only, which may be different from that of the actual product.

■ Specification Table
Type T5 (Tooth pitch: 5mm)

Part Number		Belt Nominal Width	Number of Teeth	Belt Circumference Length (mm)
Type	Belt Number	Belt Nominal Width	Number of Teeth	Belt Circumference Length (mm)
C-TTBN	150T5	100 (10mm) 150 (15mm) 200 (20mm) 250 (25mm)	30	150
	160T5		32	160
	165T5		33	165
	185T5		37	185
	190T5		38	190
	200T5		40	200
	205T5		41	205
	210T5		42	210
	215T5		43	215
	220T5		44	220
	225T5		45	225
	240T5		48	240
	245T5		49	245
	250T5		50	250
	255T5		51	255
	260T5		52	260
	270T5		54	270
	275T5		55	275
	280T5		56	280
	290T5		58	290
	295T5		59	295
	300T5		60	300
	305T5		61	305
	310T5		62	310
	320T5		64	320
	325T5		65	325
	330T5		66	330
	335T5		67	335
	340T5		68	340
	350T5		70	350
	355T5		71	355
	360T5		72	360
	365T5		73	365
	370T5		74	370
	375T5		75	375
	390T5		78	390
	395T5		79	395
	400T5		80	400
	410T5		82	410
	420T5		84	420
	425T5		85	425
	435T5		87	435
	440T5		88	440
	445T5		89	445
	450T5		90	450
	455T5		91	455
	460T5		92	460
	470T5		94	470
	475T5		95	475
	480T5		96	480
	490T5		98	490
	500T5		100	500
	510T5		102	510
	525T5		105	525
	530T5		106	530
	545T5		109	545
	550T5		110	550
	560T5		112	560
	565T5		113	565
	575T5		115	575
	590T5		118	590
	600T5		120	600
	605T5		121	605
	610T5		122	610
620T5	124	620
625T5	125	625
630T5	126	630
635T5	127	635
650T5	130	650
660T5	132	660
675T5	135	675
690T5	138	690
700T5	140	700
710T5	142	710
720T5	144	720
725T5	145	725
740T5	148	740
750T5	150	750
780T5	156	780
785T5	157	785
800T5	160	800
810T5	162	810
815T5	163	815
840T5	168	840
850T5	170	850
860T5	172	860
880T5	176	880
900T5	180	900
910T5	182	910
930T5	186	930
940T5	188	940
990T5	198	990
1000T5	200	1000
1020T5	204	1020
1075T5	215	1075
1100T5	220	1100
1140T5	228	1140
1200T5	240	1200
1210T5	242	1210
1215T5	243	1215
1350T5	270	1350
1380T5	276	1380
1500T5	300	1500
1550T5	310	1550
1630T5	326	1630
1800T5	360	1800

Product Features

		■ S type circular tooth profile rubber timing belt (S2M/S3M/S5M/S8M/S14M) Feature 1: Reasonable semi-circular arc tooth profile design can provide higher torque to adapt to high load transmission. Feature 2: Reduce the noise generated by high-speed operation. Feature 3: Tooth peak changes under force, ensuring a longer life than conventional circular tooth profile teeth. Feature 4: Have certain conductivity Feature 5: Operating Temperature Range: -30 to 90℃.
		■ P type circular tooth profile rubber timing belt (P5M/P8M) Feature 1: Reasonable semi-circular arc tooth profile design can provide higher torque to adapt to high load transmission. Feature 2: Special concave tooth peak design, better reducing noise generated by high-speed operation. Feature 3: Tooth peak changes under force, ensuring greater accuracy than conventional circular tooth profile teeth. Feature 4: Have certain conductivity Feature 5: Operating Temperature Range: -25 to 80℃.
		■ Trapezoidal tooth profile rubber timing belt (MXL/XL/H/T5/T10) Feature 1: Suitable for light load transmission, standard torque driving. Feature 2: Tooth rubber uses chloroprene to protect core wire, providing excellent bending fatigue resistance, heat resistance, oil resistance Feature 3: Ideal choice of economical and maintenance-free alternative to traditional transmission method. Feature 4: Have certain conductivity Feature 5: Operating Temperature Range: -30 to 90℃ (MXL/XL/H) , 0 to 80℃ (T5/T10)

Example of Use

Usage Method Example Drawing	Instructions for use of timing wheel and timing belt
	① Driving (The driven wheel is driven by the driving wheel for transmission)
	② Transmission (Used for repeated motion with the object not rotating and high requirements on positioning accuracy)

Usage Method Example Drawing	Instructions for use of timing wheel and timing belt
	③ Conveyance (Plates are conveyed by two timing toothed belts)
	④ Traction transmission (Workpieces are clamped and transmitted by the belt)

Usage Method

■ Installation method for timing belt transmission
①	Turn off the power supply, remove the protective cover, loosen the motor assembly bolts, move the motor so that the belt is loose enough. The belt can be removed without prying. Never try to pry the belt down.
②	Remove the old belt and check for abnormal wear. Excessive wear may mean that there are problems in the design or maintenance of the transmission device.
③	Choose the right belt to replace.
④	To clean the belt and pulley, wipe with a cloth dipped in a small amount of non-volatile liquid. Soaking in detergent or scrubbing the belt with detergent is not advisable. To remove grease, it is also undesirable to wipe with sandpaper or scratch with a sharp object. The belt must be kept dry before installation and use.
⑤	Check the pulley for abnormal wear or cracks. If the wear is excessive, the pulley must be replaced.
⑥	Check whether the pulley is linearly symmetrical. Linear symmetry of the pulley is essential for the operation of the timing belt, especially the timing belt transmission device. Asymmetry of the pulley is shown as follows:

⑦	Check the remaining transmission device components, such as bearings and bushings, for symmetry, durability, lubrication and other conditions.
⑧	Install a new belt on the pulley. Never pry or use too much force.
⑨	Tighten to narrow the center distance of the transmission device until the tension tester detects that the belt tension is appropriate. Turn the driving wheel several times with your hands. Re-test tension.
⑩	Tighten the assembly bolts of the motor and correct the torque. Since any change in the center distance of the transmission device during operation will result in poor belt performance, it is important to ensure that all transmission components have been tightened.
⑪	Start the device and observe the belt performance to see if there is abnormal vibration, and listen carefully if there is abnormal noise. It is best to turn off the machine and check the conditions of the bearing and motor. If it feels too hot to the touch, the belt may be too tight, the bearing may be asymmetrical, or the lubrication may be incorrect.

Precautions

① Do not bend the timing belt by force.
It is strictly forbidden to bend the belt, which easily causes breakage

Do not use in direct contact with water, solvent, oil, acid, alkali, UV, ozone, etc.

③ Please avoid using or keeping at extreme high or low temperatures beyond the operating temperature range, or in humid environments.
④ During installation and maintenance, be sure to cut off the power supply and confirm that the machine is completely stopped before proceeding.
⑤ When there may be impurities, be sure to set the guard.
