Cable Carriers Flap Open-Close

Cable carrier/cable protection chain can prevent cables or air tubes connected to the moving parts of equipment from twisting, stretching, and entanglement due to movement.

(1) This product features a two-piece structure, compact size, and lightweight design, making it suitable for low-load, narrow spaces.
(2) The crossbar can be opened along the inner or outer diameter for easy assembly and disassembly.
(3) Material: Imported PA + glass fiber

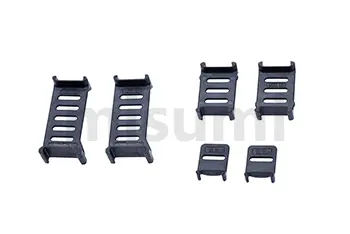

※For specifications with an internal height of 15 mm or more, partition plates can be optionally selected (the connector and chain links are assembled together, partition plates are packaged separately, and need to be assembled according to usage requirements)
If you wish to purchase more than 100 partition plates separately, please purchase the following model:
Inner height 15 mm model: C-M15.1S Inner height 20 mm model: C-M20.1S Inner height 32 mm model: C-M32.1S

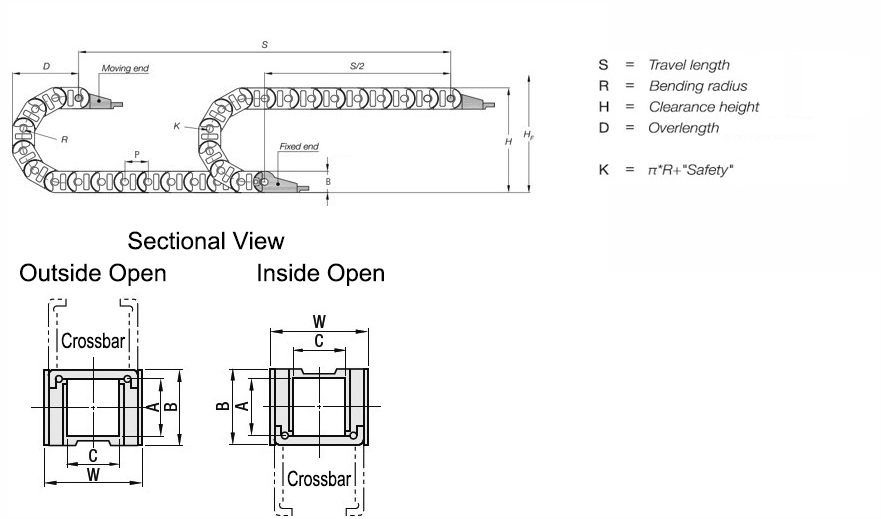

Part Number		B	C	W	P	R	Number of links	Type of Separator	Number of Spacers	Cable Insertion Side	Installation Size (Corresponding Bending Radius)			Required space height HF	E	Number of Connector Teeth
Type	A										H	D	K
	Inner height	External height	Inner width	External Width	Link Pitch	Bending Radius
C-MPU (Open outside the crossbar)	10	14	10	17	20	18 28 38	10 to 65	S10	4 to 65	Outer Periphery	50 70 90	45 55 65	100 130 160	H+10	－	1
			15	22												2
			20	27											－	2
			30	37											22	3
			40	47											32	4
	15	19	10	18		28 38 48		S15	4 to 65		75 95 115	58 68 78	130 160 195	H+15	－	1
			15	23											－	2
			20	28											－	2
			30	38											22	3
			40	48											32	4
			50	58											42	5
	20	25	15	26	30	38 48 75 100		S20			101 121 175 225	81 91 118 143	180 215 300 375	H+20	－	2
			25	36											10	3
			40	51											23	4
			50	61											35	5
			60	71											48	6
			70	81											54	7
			80	91											65	8
	32	39	15	26		50 60 75 100		S32			139 159 189 239	100 110 125 150	220 250 300 375	H+25	－	2
			25	36											－	3
			40	51											25	4
			50	61											37	5
			60	71											48	6
			80	91											65	8
C-MPD (Open inside the crossbar)	10	14	10	17	20	18 28 38		S10	4 to 65	Inner Circumference	50 70 90	45 55 65	100 130 160	H+10	－	1
			15	22											－	2
			20	27											－	2
			30	37											22	3
			40	47											32	4
	15	19	10	18		28 38 48		S15	4 to 65		75 95 115	58 68 78	130 160 195	H+15	－	1
			15	23											－	2
			20	28											－	2
			30	38											22	3
			40	48											32	4
			50	58											42	5
	20	25	15	26	30	38 48 75 100		S20			101 121 175 225	81 91 118 143	180 215 300 375	H+20	－	2
			25	36											10	3
			40	51											23	4
			50	61											35	5
			60	71											48	6
			70	81											54	7
			80	91											65	8
	32	39	15	26		50 60 75 100		S32			139 159 189 239	100 110 125 150	220 250 300 375	H+25	－	2
			25	36											－	3
			40	51											25	4
			50	61											37	5
			60	71											48	6
			80	91											65	8

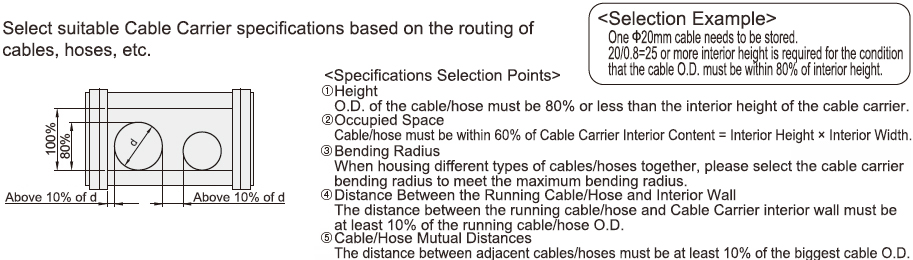

Divider plates can be added when selecting products. For details on the number of divider plates, please refer to the MISUMI sales website.

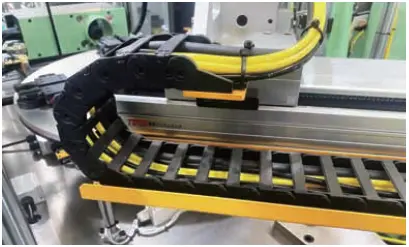

Mainly used in the electronics and semiconductor industries
Can be used with MISUMI motion/drag chain cables
