Timing Pulleys S5M

Brand :

MISUMI

Caution

This product [Timing Pulley] has scheduled to discontinue on 14042025. However, we will continue to sell until stock ran out.
Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part05 CLICK here

Product Description

Timing Pulleys S5M
Timing Pulleys are an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
● Belt Width Used (mm.) : 10, 15 and 20
● Applicable with Belt Type : S5M
● Number of Teeth Minimum/Maximum : 14 and 36
● Shaft Bore Diameter Minimum/Maximum (mm.) : 5 to 30
● Shaft Bore Specs. : Can select between Round Hole, Round Hole + Tap and New JIS keyway + Tap
● Material : Aluminum Alloy
● Surface treatment : Clear Anodized
[Application]
Timing pulleys are frequently utilized in systems that incorporate timing belts to regulate and govern the movement of the machinery.

Economy S5M Timing Pulley

Timing pulleysAluminum pulleysPower transmission

- Wide range of teeth counts available.

- Aluminum construction for durability and lightweight

- Clear anodized surface for enhanced corrosion resistance

- Chamfered screw holes for easy on-site assembly and reduced time

- Suitable for medium-precision reciprocating and conveyance systems

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

Product Overview

Usually, timing pulleys, timing idlers and timing belts are widely used to design mechanisms for transmitting rotational power generated by motors.
Driving and transmission are realized through the engagement between the teeth of Timing Pulley, timing idlers and timing belts.

Dimensional Drawing

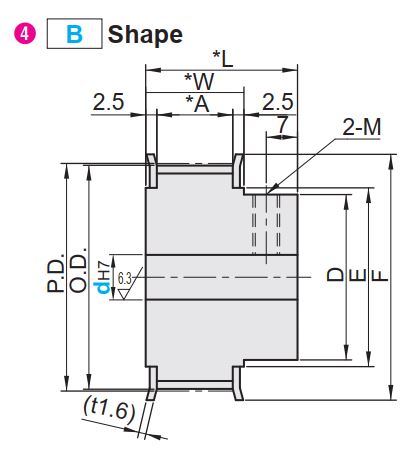

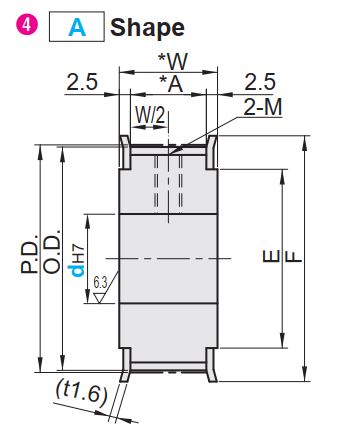

■Standard Tooth Profile	■Pulley Shape
The tooth groove size varies slightly with the number of teeth (Tooth pitch: 3.0 mm)

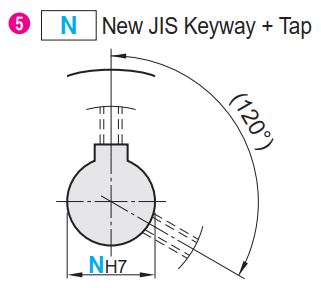

■Shaft Hole Spec.

Without thread hole	For Shape A pulley, the tapped holes are set around 120° to avoid interference with the tooth top	Detailed Dimensions of Keyway The positions of keyway and teeth are not fixed. When purchasing the new JIS keyway hole + threaded hole with a shaft hole diameter of 10 and a keyway width of 4.0 mm (height 1.8 mm), please specify NK10.

Threaded Hole size table
(Shaft hole specifications: P·N·C)

dH7 Shaft Hole ID	M （Coarse Thread）	Recommended Fixing Screw Model
12	M4	M4×3
13~17	M5	M5×4
18～30	M6	M6×5
31～45	M8	M8×6
46～65	M10	M10×8

Specification Overview

Timing Pulley Material		Surface Treatment
Pulley	Flange

Aluminum Alloy	Aluminum Alloy	Clear Anodized

Specification Table

Part Number			Timing Pulley Shape	Shaft Hole Specs. P Hole Dia. d	P.D.	O.D.	F	E
Type	Number of Teeth	Belt Type
C－HTPA	14	S5M100	A	5·6·6.35·8·10	22.28	21.32	26	16
		S5M150		10
	15	S5M100		5·6·8·10	23.87	22.91	28	18
		S5M150		8·10
	16	S5M100		5·6·6.35·8·10·12	25.46	24.5	32	20
		S5M150		8·10·12
		S5M250		10
	18	S5M100		6.35·8·10·12	28.65	27.69	33	22
		S5M150		8·10·12
	19	S5M100		6·8·10	30.24	29.28	36	24
	20			6·6.35·8·10· 12·13·14·15	31.83	30.87	36	24
		S5M150		6·6.35·8·10·11· 12·12.7·14·15
		S5M250		15
	22	S5M100		8·10·12	35.01	34.05	40	27
		S5M150		8·10·12·15
	24	S5M100		8·10·12·20	38.2	37.24	45	30
		S5M150		8·10·12·14·15
		S5M250		15
	25	S5M100		8·10·12·17	39.79	38.83	45	30
		S5M150		8·10·12·14· 15·18·20
	26	S5M100		8·10·14	41.38	40.42	48	35
		S5M150		8·10·12·14

Part Number			Timing Pulley Shape	Shaft Hole Specs. P Hole Dia. d	P.D.	O.D.	F	E
Type	Number of Teeth	Belt Type
C－HTPA	28	S5M100	A	8·10·12·14	44.56	43.6	48	35
		S5M150		8·10·12·12.7
		S5M250		15
	30	S5M100		10·12	47.75	46.79	52	36
		S5M150		10·12·15
	40	S5M100		10	63.66	62.7	67	50
		S5M150		20
	50	S5M100		12	79.58	78.62	87	67
		S5M150		25

Part Number			Timing Pulley Shape	Shaft Hole Specs.H Hole Dia.d	P.D.	O.D.	F	E
Type	Number of Teeth	Belt Type	Timing Pulley Shape	Shaft Hole Specs.H Hole Dia.d	P.D.	O.D.	F	E
C－HTPA	14	S5M100	A	6.35·10·12	22.28	21.32	26	16
	16			12	25.46	24.5	32	20
	20			16	31.83	30.87	36	24
	20	S5M150		10	31.83	30.87	36	24
	22	S5M100		16·21	35.01	34.05	40	27
	26	S5M100		23	41.38	40.42	48	35
	30	S5M150		32	47.75	46.79	52	36
	50	S5M250		42	79.58	78.62	87	67
	60	S5M100		60	95.49	94.53	99	80

Part Number			Timing Pulley Shape	Shaft Hole Specs.H Hole Dia.d	P.D.	O.D.	F	E
Type	Number of Teeth	Belt Type
C－HTPA	20	S5M150	B	14	31.83	30.87	36	24
	30			10·16	47.75	46.79	52	36

Detailed specifications are available on the official website

Part Number			Timing Pulley Shape	Shaft Hole Specs.N Hole Dia.d	P.D.	O.D.	F	E
Type	Number of Teeth	Belt Type
C－HTPA	14	S5M100	A	8、10、NK10	22.28	21.32	26	16
		S5M150		10
	15	S5M100		8、10、NK10	33.87	22.91	28	18
		S5M150		8、NK10
	16	S5M100		8、10、11、12、NK10	25.46	24.5	32	20
		S5M150		8、10、11、12、NK10
		S5M250		12
	18	S5M100		8、10、11、12、NK10	28.65	27.69	33	22
		S5M150		8、10、11、12、NK10
		S5M250		12
	19	S5M100		8、10、11、12、14、NK10	30.24	29.28	36	24
		S5M150		10、12、14、15
		S5M250		15
	20	S5M100		8、10、11、12、13、14、15、16、NK10	31.83	30.87	36	24
		S5M150		8、10、11、12、13、14、15、16、NK10
		S5M250		12、14、15、16、NK10
	22	S5M100		8、10、11、12、14、15、16、NK10	35.01	34.05	40	27
		S5M150		8、10、11、12、13、14、15、16、17、18、NK10
		S5M250		12、14、15、17、18
	24	S5M100		8、10、11、12、14、15、17、19、20、NK10	38.2	37.24	45	30
		S5M150		8、10、11、12、13、14、15、16、18、19、20、NK10
		S5M250		12、14、15、16、17、19、20
	25	S5M100		8、10、12、14、15、16、18、19	39.79	38.83	45	30
		S5M150		8、10、11、12、14、15、16、17、18、19、20、NK10
		S5M250		10、12、14、15、16、19、20
	26	S5M100		8、10、12、14、15、16、20、NK10	41.38	40.42	48	35
		S5M150		8、10、11、12、14、15、16、18、19、20、22、NK10
		S5M250		12、14、15、16、20、22
	28	S5M100		8、10、12、14、16、20、NK10	44.56	43.6	48	35
		S5M150		8、10、11、12、14、15、16、17、18、19、20、22、NK10
		S5M250		12、14、15、16、18、20
	30	S5M100		10、12、14、15、16、20、NK10	47.75	46.79	52	36
		S5M150		10、12、14、15、16、17、18、19、20、22、24、25、26、NK10
		S5M250		12、14、15、16、17、18、19、20、22、25
	32	S5M100		10、12、14、15、28	50.93	49.97	55	40
		S5M150		10、12、14、15、16、17、18、19、20、22、25、NK10
		S5M250		12、14、15、16、19、20、NK10
	34	S5M100		15	54.11	53.15	61	45
		S5M150		14、15、20、30
		S5M250		20
	36	S5M100		14、18	57.3	56.34	61	45
		S5M150		10、12、14、15、16、20
		S5M250		15、16、17、20、22、25、30
	40	S5M100		10、12、14、16、NK10	63.66	62.7	67	50
		S5M150		10、12、14、15、16、19、20、22、24、30、35
		S5M250		14、15、16、18、20、22、25
	44	S5M100		16	70.03	69.07	74	58
		S5M150		12、15
		S5M250		20、40
	48	S5M100		16	76.39	75.43	83	63
		S5M150		12、14、40
		S5M250		20

Part Number			Timing Pulley Shape	Shaft Hole Specs.N Hole Dia.d	P.D.	O.D.	F	E
Type	Number of Teeth	Belt Type
C－HTPA	50	S5M150	A	12、15、17、20	79.58	78.62	87	67
		S5M250		20、24、32、35
	60	S5M150		12、22、40	95.49	94.53	99	80
		S5M250		20、25、35
	72	S5M150		15、19、55	114.59	113.63	119	100
		S5M250		25、30、55

Part Number			Timing Pulley Shape	Shaft Hole Specs.P Hole Dia.d	P.D.	O.D.	D	F	E
Type	Number of Teeth	Belt Type
C－HTPA	14	S5M100	B	5·6.35·8	22.28	21.32	14	26	16
		S5M150		8
	15	S5M100		8	23.87	22.91	15	28	18
		S5M150		8
	16	S5M100		5·6.35·8·10	25.46	24.5	17	32	20
		S5M150		8
	18	S5M100		8·10	28.65	27.69	19	33	22
		S5M150		8
	20	S5M100		8·10·11	31.83	30.87	19	36	24
		S5M150		8·10
	22	S5M100		8·14	35.01	34.05	24	40	27
		S5M150		8·12.7·14
	24	S5M100		8	38.2	37.24	27	45	30
		S5M150		8·12·14
	25	S5M100		10	39.79	38.83	27	45	30
		S5M150		8
	28	S5M100		8	44.56	43.6	32	48	35
		S5M150		8
	30	S5M100		12	47.75	46.79	33	52	36
		S5M150		12·14
	36	S5M100		10	57.3	56.34	40	61	45

Part Number			Timing Pulley Shape	Shaft Hole Specs.N Hole Dia.d	P.D.	O.D.	D	F	E
Type	Number of Teeth	Belt Type
C－HTPA	16	S5M100	B	8	25.46	24.5	17	32	20
	18			8·10	28.65	27.69	19	33	22
	20			8·10	31.83	30.87	19	36	24
		S5M150		11·12
	22	S5M100		10·12	35.01	34.05	24	40	27
		S5M150		12
	24	S5M100		12·13	38.2	37.24	27	45	30
		S5M150		10·12·14
	25	S5M100		10·12·14·15	39.79	38.83	27	45	30
		S5M150		14·15
		S5M250		14
	26	S5M100		8·12·14·16·17	41.38	40.42	31	48	35
		S5M150		14
		S5M250		14
	28	S5M100		14·15·16	44.45	43.6	32	48	35
		S5M150		14
		S5M250		14
	30	S5M100		12·14·15·16	47.75	46.79	33	52	36
		S5M150		12·14·15·16
		S5M250		14
	32	S5M100		12·14·15·16· 18·19·20	50.93	49.97	37	55	40
		S5M150		14·19·20
		S5M250		20
	34	S5M150		19·25	54.11	53.15	40	61	45
		S5M250		14
	36	S5M100		14	57.3	56.34	40	61	45
		S5M150		15·20·25
		S5M250		15
	40	S5M150		15	63.66	62.7	47	67	50
	44			15	70.03	69.07	50	74	58
	50			25	70.58	78.62	63	87	67
		S5M250		25

Detailed specifications are available on the official website

Product Features

■ Differentiation and use of Misumi economy pulleys and Misumi standard products/customer exmaple of use

	New Products	Existing Products
Example of use
Precautions	Generally used in reciprocating and conveyance mechanisms that do not have high requirements on positioning accuracy.	Generally used in mechanisms that frequently rotate forwardly and reversely and have requirements on positioning accuracy and backlash.
Repetitive positioning accuracy (reference value)	Medium precision (±0.1)	High precision (±0.05)

■Easier on-site assembly
·MISUMI Economy series timing pulley is chamfered at the shaft hole and tapped hole for easy installation, reducing assembly time by 27% compared to the timing pulley not chamfered
MISUMI Timing Pulley Assembly Time

※Generic products on the market are similar products randomly purchased by our company from online or offline markets
※The test result are obtained through testing by our company, which are for reference only

■Longer Timing Belt Life
·MISUMI Economy series timing pulley, with deburring treatment at the threaded hole, is not easy to wear the timing belt, and the price is cheap while increasing the lifetime of the timing belt.

Belt condition after the test of timing belt pulley without chamfer on the threaded hole:

there are obvious wear marks left by the pulley tooth threaded hole on the belt tooth surface.

【Test Condition】
Belt Specification: S5M
Belt Width: 150mm
Number of teeth of
drive side pulley: 20
Number of teeth of
driven side pulley: 60
Rotational speed: 3000rpm
Tension (N): 160N
Test time: 24H

※Problems of generic products on the market

Precautions

Timing PulleyTiming Pulley For hole specifications P (round hole + threaded hole) or N (round hole + keyway hole), the fixing screws are not included, and you may purchase them from MISUMI according to the recommended fixing screw models.

Timing PulleyThere may be no surface treatment in the shaft hole.

Timing PulleyThe positions of keyway and tooth are not fixed.

Usage Method

Usage Method Example Drawing	Usage Method of Timing Wheel and Timing Belt
	①Driving The driven wheel is driven by the driving wheel for transmission
	②Linear driving Reciprocating motion is carried out through the self-end timing toothed belt.

Usage Method Example Drawing	Usage Method of Timing Wheel and Timing Belt
	③Conveyance Plates are conveyed by two timing toothed belts
	④Traction transmission Workpieces are clamped and transmitted by the belt

Timing Pulleys S Type, suitable for MISUMI Standard Timing Belts and Economy Series Timing Belts.

Example of Use

Example drawing of a workpiece reversal transfer mechanism designed using MISUMI timing pulley

■Mechanism name
Workpiece reversal transfer mechanism

■ Mechanism function
Rotates the workpiece on the conveyor belt by 90 degrees and transfers it to the next process.
At this time, the clamping mechanism rotates 180 degrees and does not change the direction of the workpiece relative to the conveying direction at the same time during transfer.

■Role of the Timing Pulley
The transmission of the timing pulley and the timing belt changes the placement direction of the workpiece while transferring the workpiece. (Applicable to S specification and GT specification timing pulleys)

Application Industries

Semiconductor	Automotive	Smart Phones

Medical	Electronic & Electrical	Robotics
