Mounting Plates For Aluminum Frames
Brand :
MISUMI
Caution
- European standard economic type new products, with different sizes, can only be used in combination with European standard economic type profiles starting with L.
- Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part17 CLICK here
Product Description
Mounting Plates or Foot Bases For Aluminum Profile is an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
● Applicable Aluminum Profile No. : 8 and 10
● Applicable Aluminum Profile Size : 3060, 6060, 4080, 4590, 8080, 9090, 50100 and 100100
● Material : Aluminum Alloy
● Surface treatment : Not Provided
[Application]
Mounting Plates or Foot Bases are commonly used in industrial machinery to install with aluminum profiles
Product Overview
Economy series Special Foot Bases for Aluminum Extrusions profiles Suitable for the connection of anchor and casters. Available in many specifications, it can be matched with various sizes of profiles, which is durable.

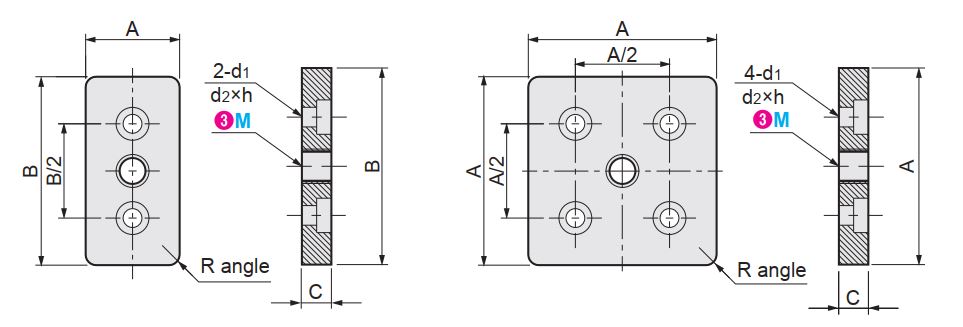

Dimensional Drawing
Material: Aluminum Alloy
Surface Treatment: NoneSpecifications Table

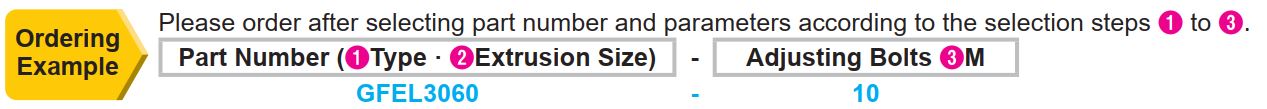

| Part Number | Adjusting bolt  M | A | B | C | M | d1 | d2 | h | Bolt used | ||
 Type |  Section of profile | Bolt | Quantity | ||||||||
| GFEL | 3060 | 10 | 30 | 60 | 12.3 | 10 | 8.7 | 12.9 | 7 | 8-16 | 2 |
| 6060 | 12 | 60 | - | 12.1 | 12 | 13.1 | 8 | 4 | |||
| 4080 | 40 | 80 | 8.9 | 14 | 8.3 | 2 | |||||
| 4590 | 45 | 90 | 15 | 13 | 18 | 7 | 12-25 | ||||
| 8080 | 80 | - | 12.1 | 9 | 14 | 8.3 | 8-20 | 4 | |||
| 9090 | 16 | 90 | 15 | 16 | 13 | 20 | 10 | 12-25 | |||
| 50100 | 50 | 100 | 2 | ||||||||
| 100100 | 20 | 100 | 20 | 20 | 4 | ||||||
Product Features
① European standard profile product, which is different from JIS standard products.
② Foot Bases for Aluminum Extrusions are Suitable for the connection of anchor and casters.
② Foot Bases for Aluminum Extrusions are Suitable for the connection of anchor and casters.
Precautions
① This product of is a special accessory for European standard profiles, which cannot be used with JIS standard profile products.
② Foot Bases for Aluminum Extrusions with the profile shall be provided separately.
② Foot Bases for Aluminum Extrusions with the profile shall be provided separately.
Example of Use
