Slot Covers 2m For Aluminum Frames

Brand :

MISUMI

Caution

European standard economic type new products, with different sizes, can only be used in combination with European standard economic type profiles starting with L.
Download Free! >>Economy Series Catalog ver2023 (TH-EN)_Part17 CLICK here

Product Description

・ Flat sealing groove strip for slot of Aluminum Frames.
・ This is an economy item; The price is cheaper than the MISUMI standard product.
・ The overall length of slot covers is 2 m.
・ Color of Flat sealing slot cover: Black (LMCSB), Grey (LMCSG)
・ Applicable Aluminum Frame Profile Groove Width: 6 mm, 8 mm, 10 mm
・ Material of Flat sealing slot Covers is made of PVC.

Product Overview of Slot Covers

Slot Covers is an accessory for MISUMI European standard profiles, which is mainly used in the profile and can play a dust-proof and protective role in the profile frame.

Product Feature of Slot Covers

Slot Covers is easy to install, and the material is generally more PVC. At present, MISUMI has Slot Coverss corresponding to groove widths of 6mm, 8mm and 10mm.

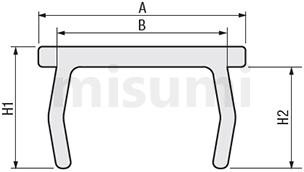

Dimensional Drawing of Slot Covers

See the dimensional drawing as follows : Unit (mm)

TYPE	Groove Width	Packing Specification	A	B	H1	H2
LMCSB (Black)	6	2m	7.2	6	4.0	3.3
	8		10.2	8.4	6.0	5.1
	10		12.2	10.4	6.0	5.1
LMCSG (Grey)	6		7.2	6	4.0	3.3
	8		10.2	8.4	6.0	5.1
	10		12.2	10.4	6.0	5.1

Specifications Overview of Slot Covers

Specification table information is as follows :

type	Material	Surface Treatment
LMCSB	PVC	-
LMCSG	PVC	-

Example Use of Slot Covers

■ Slot Covers Profiles assembling example
Figure 1
Gaskets
