Post-Assembly Steel Ball Elastic Nut For Aluminum Frames With Slot Width of 10 mm
Brand :
MISUMI
Caution
- Economic type new products, with different sizes, can only be used in combination with Economic type frames starting with L.
Product Description
Ball Spring T- Nut or Insertion Spring Nuts For Aluminum Frames
It is a fastener for aluminum Frames. It includes a ball spring stopper for preventing the nut from slipping off when inserted into the vertical direction
[Features]
• Post Assembly: Mountable from slots after assembly
• Suitable for: Aluminum Frames 4545 series (slot width 10 mm.)
• Can support bolt size : M5, M6 and M8
• Material: Carbon Steel Nickel-plated , anti-rust
[Applications]
Suitable for use with bolt and aluminum Frames 4545 series (slot width 10 mm.)., for assembling machine components
■ Elastic Nuts
■ Elastic Nuts
Product Overview of Nuts
The post-mounted steel ball elastic Nuts for aluminum frames is widely used for fastening and connection of aluminum frames; it is made of commonly used domestic carbon steel material, and the surface is nickel-plated, which isbeautiful and anti-rust, suitable for tightening and connection between European standard aluminum alloy profiles and brackets. Easy assembly, cost-effective choice.
Note: Not all frames are suitable for this product. The height of the profile groove needs to be between the height of the Nuts and the height of the steel ball before it can be used in combination.
If the height in the profile groove is high, consider using an elastic Nuts. (Typical series specifications: LNTRNM series)
Note: Not all frames are suitable for this product. The height of the profile groove needs to be between the height of the Nuts and the height of the steel ball before it can be used in combination.
If the height in the profile groove is high, consider using an elastic Nuts. (Typical series specifications: LNTRNM series)

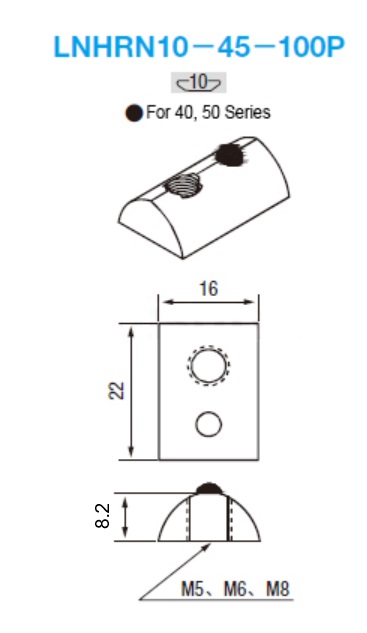

Dimensional Drawing of Nuts
Specifications Overview of Nuts
Part number ( Type· Slot width series) | － |  M | － |  Packed sales |
| LNHRN10－45 | － | 5 | － | 100P |
■ Elastic Nuts
| Part Number | M | Packed sales | |
| Type | Slot width series | ||
| LNHRN | 10-45 | 5 | 100P (100 pcs/pack) |
| 6 | |||
| 8 | |||
Product Feature of Nuts
Nuts Mainly made of carbon steel, the surface is nickel-plated, which is beautiful and anti-rust.
It is suitable for the later transformation of the profile frame. Without dismantling the assembled frame, it can be inserted from the profile groove for fastening and installation, and the change is convenient.
Because of the elastic steel ball, it can be fixed in the profile groove, and it can be installed even in the vertical situation, which is convenient.
It is suitable for the later transformation of the profile frame. Without dismantling the assembled frame, it can be inserted from the profile groove for fastening and installation, and the change is convenient.
Because of the elastic steel ball, it can be fixed in the profile groove, and it can be installed even in the vertical situation, which is convenient.
Example Use of Nuts
■Profiles assembling example
