Recessed Handle, Resin Type

Name: Recessed Handle, Resin Type
Brand: MISUMI
Availability: PreOrder

Compare This Product

Brand :

MISUMI

From :

฿ 138.00/Unit
Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

Recessed handle using resin. Recessed handle that can be purchased at a low price.

■Screw mount

■Single-action mount

■Screw mount

Part name	Material	Surface treatment
main body	ABS resin and polycarbonate	-
Spacer	Steel	Trivalent chromate
Spring washer
Cross-head round head screw

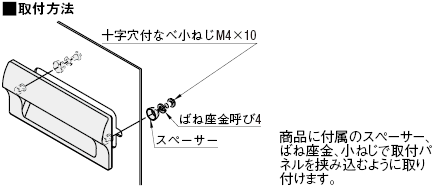

Includes cross-recessed pan-head screws M4 × 10 and spring lock washers of nominal 4.

■Single-action mount
Material: ABS resin and polycarbonate

Standard table

Model

UWAUP70—B

UWAUOT110—W

Model			S	W	A	J	T₁	T₂	T₃	P	X	Z	Compatible plate thickness	JPY unit price
Type	L	Handle Color												1 to 20 pcs.
UWAUP	70	B (Black) W (Ivory white)	43	38	17	19	10.5	3	9	58	48	25	0.5 to 3.2	285
	90		63	44	21.5	22	11		11	78	68	31		320
	110		82	50	24.4	26		3.5		96	90	36		360
	140		109	64	34	33	11.5			126	116	48		420

Model			S	W	A	T₁	T₂	X	Z				JPY unit price
Type	L	Handle Color	S	W	A	T₁	T₂	X	Compatible plate thickness 0.8	Compatible plate thickness 1.0 to 1.2	Compatible plate thickness 1.5 to 2.0	Compatible plate thickness 2.3	1 to 20 pcs.
UWAUOT	70	B (Black) W (Ivory white)	43	38	18.5	10.5	3	46	28.7	29	29.4	30.8	265
	90		63	44	22.9	11	3	66	34.7	35	35.4	36.8	295
	110		83	50	26.8	11.5	3.5	88	40.7	41	41.4	42.8	325
	140		109	64	37.8	11.5	3.5	114	54.7	55	55.4	56.8	355
