Panel Clamp for Aluminum Frames

Dimensional Drawing of Panel Mounts

Specification Table of Panel Mounts

Product Overview of Panel Mounts

It is inserted into the frame groove when installing the Panel Mounts.
It is only compatible with joint bracket connections.

■ Panel Mounts Product type

Overview

This method involves fitting the Panel Mounts into the groove of the frame. This method
is recommended for those who value design, as it does not require drilling holes in the Panel Mounts or fastening with screws. It can only be used when assembling with
screw joints, center joints, single joints, first-in double joints, and last-in double joints.

■ Installation method

The Panel Mounts size must be determined so that the fastening members do not interfere with the Panel Mounts.
(1) Fasten the three frames with blind joint parts.
(2) Insert the Panel Mounts into the frame groove.
(3) Cut the Panel Mounts clamp or inverted groove cover to the frame size and insert it into the gap.

Insert the Panel Mounts clamp into the 6 series gap.



Parts Selection Method of Panel Mounts

①Aluminum frame: Additional machining for blind joints (single joint: wrench hole machining)
②Aluminum frame: Additional machining for blind joints (single joint: D hole machining)
③Blind joint
④Panel Mounts: Additional machining for cutouts

Thickness3mm (5 series)
5mm (6/8/8-45 series)

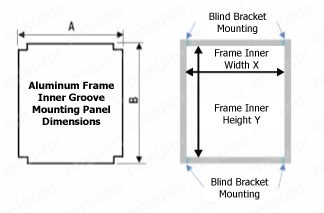

Size
1mm clearance on each side.
Panel Mounts vertical width (A) = Frame inner dimension (X) + Frame groove inner depth - Clearance (1mm x 2)
Panel Mounts horizontal width (B) = Frame inner dimension (L2) + Frame groove inner depth - Clearance (1mm x 2)



Groove Internal Depth

5 Series	6 Series	8 Series	8-45 Series
6mm x 2	9mm x 2	12.5mm x 2	13mm x 2

Alterations	Aluminum frame blind joint cutout
Code	F□□・E□□・J□□・K□□
Spec.	We provide a relief cut for the blind joint of the aluminum frame. [ ! ]No allowance is taken into account for expansion and contraction of the plate due to temperature differences. [ ! ]The longitudinal direction of the cutout is always on the A dimension side. [ ! ]Only applicable to T=3 and 5 How to specifyFS 6 Frame type Joint Type Notch position (from the diagram above) [ ! ]Only applicable to standard size

Joint-specific cutout shape	Simple joint kit	Single joint kit Screw joint kit		Pre-assembled double joint kit		Center joint	Post-insertion double joint
		Single joint kit standard type	Single joint kit narrow type, screw joint kit	Panel Mounts Standard Type	Eccentric nut type
	(Example 1) (Example 2) In example 2, no cutout in the Panel Mounts is required.		[ ! ]The illustration shows a single joint kit narrow type.			(Example 1) (Example 2)

⑤ Panel Mounts clamp (post-insertion Panel Mounts hold/Panel Mounts hold clamp also acceptable)
Length: ① Frame inside vertical -1mm, ② Frame inside horizontal -17mm (-1mm if corners are cut at 45 degrees)
Thickness: Select a Panel Mounts clamp with a thickness equal to the frame groove width minus the Panel Mounts thickness.
Additional work: Corners cut at 45 degrees (you can also cut them yourself with scissors, etc.)

Insert the Panel Mounts clamp into the 6 series gap.

How to Use: The Panel Mounts can be
easily cut with scissors or a cutter . Cutting the corners at a 45-degree angle will improve the appearance.

<After assembly>



Select the Panel Mounts clamp model based on the thickness of the aluminum frame and Panel Mounts.

*If you use the post-insertion Panel Mounts hold and Panel Mounts hold clamp instead of the Panel Mounts clamp, you can attach the Panel Mounts after assembling the frame.
*The plate or Panel Mounts can be inserted by turning the groove cover resin soft on the other side and inserting it inside the groove.
