L-Shaped Finishing Angle Mounting Plate / Bracket -Custom Dimensions Type- LAFSF
Brand :
MISUMI
Caution
Product Description
L-shaped angles do not require assembling or precision compared to two plates, which contributes to a reduction in man-hours.
| Part Number | [ M ]Material | [ S ]Surface Treatment | |
| Type | Material Symbol | ||
| LAFSF | SS | SS400 | - |
| SSB | Black Oxide | ||
| SSM | Electroless Nickel Plating | ||
| AS | A6063 | - | |
| ASW | Anodize (Clear) | ||
| ASB | Anodize (Black) | ||
| SU | SUS304 | - | |
| Long A, B sides | Perpendicularity K |
| 10~80 | 0.05 or less |
| 80.5~130 | 0.10 or less |
More Information

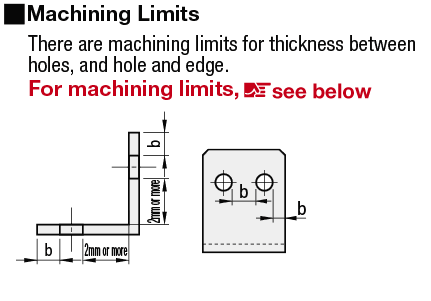

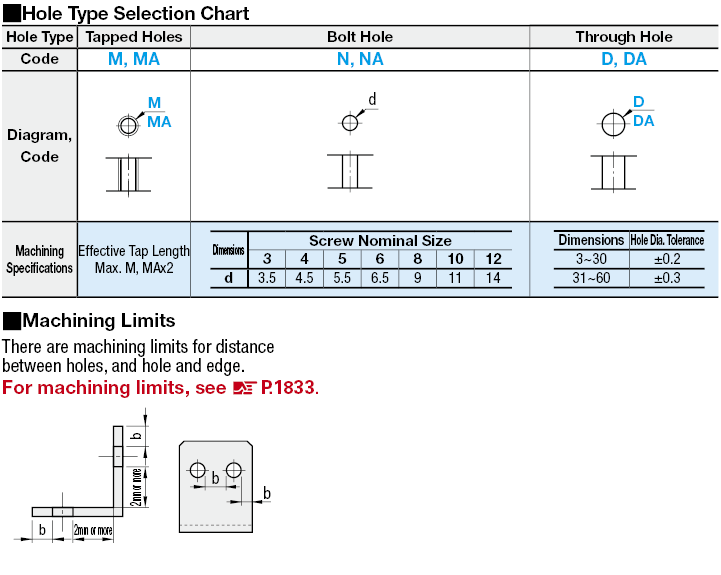

There are machining limits for thickness between holes, and hole and edge.
For machining limits, see Click here
For machining limits, see Click here
