Floating Joints Integrated Type - Round / Compact Type - Tapped
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
A floating joint that can be used even if there is no distance between the cylinder and the operated object.

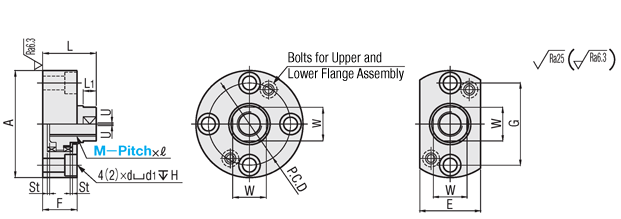

● Tapped type
Round
Compact Type
[!] Do not insert screws deeper than the depth of tapped holes. Otherwise, malfunction may occur.
[ ! ] If the load continues in one direction, it may be difficult to absorb core misalignment.
[ ! ] St is the thrust clearance on which spring force is exerted.
[!] The floating part has a structure that prevents it from turning. Turning it is not recommended.
[ ! ] If the load continues in one direction, it may be difficult to absorb core misalignment.
[ ! ] St is the thrust clearance on which spring force is exerted.
[!] The floating part has a structure that prevents it from turning. Turning it is not recommended.
Screws | Type | [M] Material | [S] Surface Treatment | [H]Surface Hardness | Spring [M] Material | |
Round | Compact Type | |||||
Tapped | FJCR | FJCC | S45C Equivalent | Black Oxide | 40 to 45HRC | Spring Steel |
| FJCRT | FJCCT | Salt-bath Nitriding | 500HV or more | Stainless Steel Spring Steel | ||
| FJCRS | FJCCS | SUS440C Equivalent | — | 40 to 45HRC | ||
| FJCRSS | FJCCSS | SUS304 | — | — | ||
[ ! ] Salt-bath Nitriding may cause uneven color, which doesn't affect mechanical function.
Specifications/Overview
■Comparison with Conventional Type
■ Structure Diagram
■ Structure Diagram
■ Features
1. The distance between cylinder and operated object can be made short.
2. Large allowable eccentricity absorbs misalignment.
3. Deep tapped hole allows wide-ranging adjustment.
4. Compact Type is designed for space-saving.
1. The distance between cylinder and operated object can be made short.
2. Large allowable eccentricity absorbs misalignment.
3. Deep tapped hole allows wide-ranging adjustment.
4. Compact Type is designed for space-saving.
