Aluminum Frame 8-90 Series/slot width 10/90x90x45mm, Parallel Surfacing
Brand :
MISUMI
Caution
- Additional freight and delivery charge are added to items longer than 2000.5mm
- Due to Air shipment restrictions, the maximum allowable cargo length is not over than 2,600 mm. If the item exceeds 2600mm, the lead time will be approximately 1.5 months. Please contact MISUMI for more information.
Product Description
Aluminum Frame Series 8-45, L shape with parallel surfacing 90 x 90 x 45mm. The top and bottom surfaces are milled. Can be used for linear guides, etc.
Surface treatment is not applied to cut surfaces and additional machining parts.
[ ! ]Milled surfaces and cut surfaces are not anodized.
■8-45 Series
Aluminum Extrusions with 10mm Slot Width. Applicable to M8 Screws.

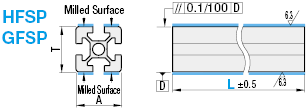

[ ! ]For detailed dimensions and shapes EXCEPT the slots on the milled surface, A and T dimensions, please refer to the drawing of the product of the below Part Number without "P".
((Ex.) HFSP8-4545 > Ref. fig. HFS8-4545(P.707))

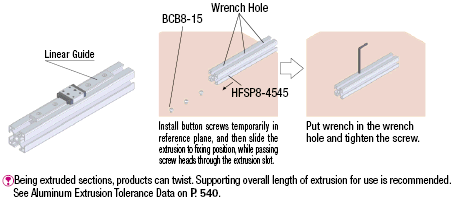

Example
