8-100 Series Aluminum Frame - 100x100mm, 10mm Slot Width
Brand :
MISUMI
Caution
- Additional freight and delivery charge are added to items longer than 2000.5mm
- Due to Air shipment restrictions, the maximum allowable cargo length is not over than 2,600 mm. If the item exceeds 2600mm, the lead time will be approximately 1.5 months. Please contact MISUMI for more information.
- Download Free! >> Economy Series Catalog (TH-EN-FY25) CLICK here
Product Description
Aluminum Frame 8-100 Series/slot width 10/100x100mm
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
● Shape : Square
● Slot width : 10 mm.
● Cross-section : 100x100 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.

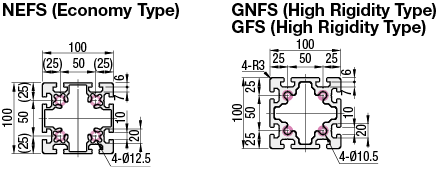

Dimensional Drawing of Aluminum Frames
GFS (high rigidity type)
| 8-45 Series Aluminum Frames |
 |
■The 8-45 series has
a groove width of 10±0.36mm and is suitable for M8 bolts.
[ ! ]Aluminum Frames, No surface treatment is applied to cut surfaces or additionally machined areas.
[ ! ]If an end tap is specified, it will be machined in the red circle.
a groove width of 10±0.36mm and is suitable for M8 bolts.
[ ! ]Aluminum Frames, No surface treatment is applied to cut surfaces or additionally machined areas.
[ ! ]If an end tap is specified, it will be machined in the red circle.
For dimensional tolerances, Aluminum Frames, There are no tolerance regulations for fixed length frames.

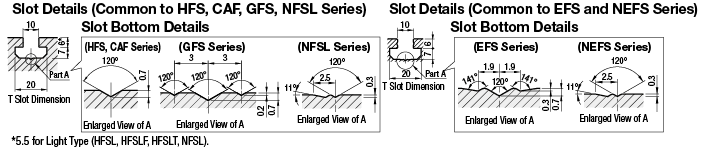

Groove details (HFS/CAF/GFS)
Groove details (EFS)
Groove bottom details
Groove bottom details
(HFS/CAF type)
(GFS type)
(EFS type)
Enlarged view of part A
Enlarged view of part A
Enlarged view of part A
Specified Length Aluminum Frames Specifications Table (Additional Processing: Possible)
| Model Aluminum Frames | − | L |
| GFS8−100100 | − | 800 |
| type | Material | Surface Treatment | Model | L specified in 0.5mm increments | Mass kg/m | Cross-sectional area mm 2 | Moment of inertia mm 4 | |
| ℓx | ℓy | |||||||
| GFS | A6061SS-T6 equivalent | White anodized aluminum | GFS8-100100 | 50 to 4000 | 10.68 | 3957 | 465.8× 104 | 465.8× 104 |
Fixed Length Aluminum Frames Specifications Table (Effective Length 4000mm)
[ ! ]Aluminum Frames, Fixed-length frames have a format with K at the beginning of the format code for each frame.| Model Aluminum Frames | − | L |
| KGFS8−100100 | − | 4000 |
| type | Material | Surface Treatment | Model | Lmm (No tolerance specified *1 ) | Cross-sectional area mm 2 | Moment of inertia mm 4 | |
| ℓx | ℓy | ||||||
| GFS | A6061SS-T6 equivalent | White anodized aluminum | K G F S 8 －1 0 0 1 0 0 | 4 0 0 0 | 3957 | 465.8× 104 | 465.8× 104 |
The actual size, including the gripping allowance, is 4000 mm or more (it will be several tens of mm longer).
The fixed-length frame is a frame that the customer cuts to their own use, so the exact length cannot bespecified.
[ ! ]Aluminum Frames, A heat resistance temperature of up to 70°C is recommended. Continuing temperatures above 100°C will cause bendingdue to the load.
However, temporary high temperatures such as steam can tolerate up to 100°C.
Alterations of Aluminum Frames (Specified Length Only, Fixed Length Not Possible)
[ ! ]Aluminum Frames, By using the various alterations listed below, MISUMI's specified length aluminum frames can be assembled withgreater flexibility.
Some frames cannot be applied depending on the type and size. Please check the price list on each alteration page tosee if it is applicable.
Aluminum Frames, Items marked with "-" in the price list cannot be applied.
Some frames cannot be applied depending on the type and size. Please check the price list on each alteration page tosee if it is applicable.
Aluminum Frames, Items marked with "-" in the price list cannot be applied.
| classification | Additional Work name | Alteration code example | How to Use | Content |
|---|---|---|---|---|
| End face tapping | End face tap (center hole) | LTP/RTP/TPW LHP/RHP/HPW |  | The frame is tapped. LTP/RTP/TPW: M12 depth 36mm LHP/RHP/HPW: M8 depth 15mm (with helical insert inserted) Aluminum Frames, This processing is required for blind joints ( screw joints / simple joints ). |
| Change cutting method | High-precision cutting | SC |  | Aluminum Frames, The tolerance of the overall length L has been changed from L±0.5 to L±0.2, allowing for high-precision cutting. *Only applicable to L≦1500 |
| Wrench Drilling | Fixed position wrench hole | LCH/LCV/LCP RCH/RCV/RCP |  | Aluminum Frames, This additional processing is required to drill a wrench hole (φ8) in accordance with the position of the tap onthe end face of the mating frame when fastening a blind joint that assembles frames into an L shape. Blind joints that require this processing ( screw joints / single joints / tapping joints ) |
Hole position shifted by the thickness of the frame cap | FL FR |  | Aluminum Frames, The hole position for the additional fixed position wrench hole is moved by the thickness of the frame cap (3mm). This prevents the frame cap from protruding when assembled at a corner. | |
| Wrench holes at specified positions | AH/BH/CH/DH/EH AV/BV/CV/DV/EV AP/BP/CP/DP/EP |  | Aluminum Frames, This is an additional process to drill a wrench hole (φ8) at any position. It can be used when fastening blindjoints at locations other than the frame end. ・ Up to five holes can be drilled in each of the horizontal, vertical, and cross directions. [!] If you require six or more wrench holes, please contact our catalog non-standard product service . | |
| Counterbore Drilling | Specified position counterbored hole | Z8-XA○○ Z12-YA○○ |  | Aluminum Frames, This is an additional process to drill a counterbore hole (select from Z6, Z8, or Z12) at any position. Z6: Through hole φ6.5, counterbore φ11, Z8: Through hole φ9, counterbore φ14, Z12: Through hole φ13,counterbore φ19 . Up to five holes can be drilled in one direction. For frames with multiple rows of grooves on one surface, counterbore holes will be machined in all grooves. [ ! ]Aluminum Frames, If you require more than six counterbore holes or to change the direction of the counterbore holes, please contact our non-standard product service . |
| Drilling holes specifically for blind joints | D hole | LDH/LDV RDH/RDV |  | Drill the holes required for fastening a single joint. ( Single joint ) |
| S hole | LSH/LSV RSH/RSV |  | Drills holes required for fastening first-in-place double joints ( first-in-place double joints ) . | |
| M hole | LMH/LMV RMH/RMV |  | Drills holes required for connecting post-assembly double joints and center joints. ( Post-assembly double joints / center joints ) | |
| Other processing | GFS series end face tap | LTS/RTS/TSW |  | Aluminum Frames, Tap holes are made in the frame. This is necessary when using a high-rigidity plate-type frame cap. ( High-rigidity plate ) |
| C-chamfered end | CW |  | The outer periphery of the frame end face is chamfered. | |
| Sticking stickers | ZZZ |  | Aluminum Frames, A sticker printed with the catalog number etc. is attached to the aluminum frame. There are restrictions on the number of characters etc., but it is also possible to print the customer's serialnumber and unit number. |
8-45 Series Related Parts of Aluminum Frames
■Aluminum frame accessories
| Product name | bracket | Blind Joint | nut | Frame cap | Groove cover | Conductive washer |
|---|---|---|---|---|---|---|
photograph |  |  |  |  |  |  |
Product page |
■Aluminum Frames, List of compatible frame caps
Frame model number | Compatible frame caps | |||||
Product Type | color | Thickness | Model number | Number of uses | ||
| The same applies to the GFS8-100100 Aluminum Frames, fixed-length frame (model number starting with K). |  | Bolt mounting (high rigidity plate type) requires special additional processing. | silver color | 2 | 1 | |
Selection Support Information of Aluminum Frames
■Frame connection methodsFrame of Aluminum Frames
connection methods can be broadly divided into the following two types.
connection methods can be broadly divided into the following two types.
bracket | Blind Joint | ||
Connection example |  |  | |
Features | - Connects outside the frame - Can be moved to any position - Not aesthetically pleasing | ・Connects inside the frame ・Aesthetically pleasing ・Requires processing of the frame |
■Aluminum Frames, Additional tapping of end faces (8-45 series □100)
Center section (4 holes) (no corners)
Center section (4 holes) (no corners)
type | Size and Position | left | Right side | both sides | cross section | |
GFS GNFS | M12 depth 36 | LTP | RTP | TPW | ||
M8 depth 15 (helisert inserted) | LHP | RHP | HPW | |||
Tap position |  |  |  |  | ||
■How to think about the allowable guideline load (deflection) for Aluminum Frames
[!]Aluminum Frames, The allowable guideline load is the load that causes the frame to deflect within 1 mm per 1000 mm of length.
Deflection exceeding this will not cause damage, but it should be considered the maximum practical deflection.(The allowable guideline deflection is proportional to the length. For example, 500 mm = 0.5 mm, 2000 mm = 2 mm.)Please refer to
the Aluminum Frames strength guideline table or the simplified deflection calculation table/deflection calculation formula for your reference.
[!]Aluminum Frames, The allowable guideline load is the load that causes the frame to deflect within 1 mm per 1000 mm of length.
Deflection exceeding this will not cause damage, but it should be considered the maximum practical deflection.(The allowable guideline deflection is proportional to the length. For example, 500 mm = 0.5 mm, 2000 mm = 2 mm.)Please refer to
the Aluminum Frames strength guideline table or the simplified deflection calculation table/deflection calculation formula for your reference.
