6 Series Aluminum Frame - 100x100mm, 8mm Slot Width

Brand :

MISUMI

Caution

Additional freight and delivery charge are added to items longer than 2000.5mm
Due to Air shipment restrictions, the maximum allowable cargo length is not over than 2,600 mm. If the item exceeds 2600mm, the lead time will be approximately 1.5 months. Please contact MISUMI for more information.
Download Free! >> Economy Series Catalog (TH-EN-FY25) CLICK here

Product Description

Aluminum Frame 6 Series/slot width 8/100x100 mm.
Aluminum profile is a device used to build machine structures. It is available in various sizes, cross-sectional shapes, and with different types of surface treatments to choose from.
[Feature]
● Shape : Square
● Slot width :8 mm.
● Cross-section rectangle : 100 x 100 mm.
number of slot width x length = 4 X 4 slots
number of slotted surfaces = 4 sides
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.

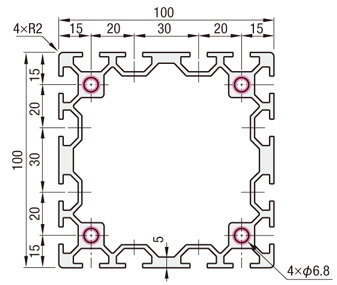

Dimensional Drawing of Aluminum Frames

HFS (standard type)
Aluminum Frame 6 Series, Square, 100 x 100 mm, 3 or More Rows of Grooves, 4-Side Grooves: Related Images

6 Series

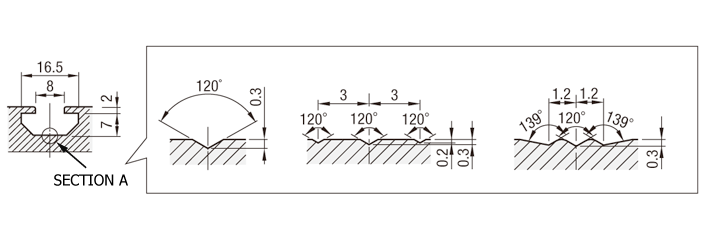

Groove details
(common to all series)Groove bottom details
(HFS/CAF type)(GFS type)(EFS type)T-slot dimensionsEnlarged view of part AEnlarged view of part AEnlarged view of part A Aluminum Frame 6 Series, Square, 100 x 100 mm, 3 or More Rows of Grooves, 4-Side Grooves: Related Images

■Aluminum Frames, The 6 Series is an aluminum extrusion with a groove width of 8 mm. Suitable for M6 bolts.
[ ! ]Aluminum Frames, The cut surfaces and additionally machined areas are not surface treated.
[ ! ]If you request additional tapped holes, the processing will be performed in the red circled areas on the aluminumextrusion outline drawing.

Specified Length Aluminum Frames Specifications Table (Additional Processing: Possible)

Model Aluminum Frames	−	L
HFS6-100100	−	800

type	Material	Surface Treatment	Model	L specified in 0.5mm increments	Mass kg/m	Cross-sectional area mm ²	Moment of inertia mm ⁴
type	Material	Surface Treatment	Model	L specified in 0.5mm increments	Mass kg/m	Cross-sectional area mm ²	ℓx	ℓy
HFS	A6005CSS-T5	White anodized aluminum	HFS6-100100	5 0 to 4 0 0 0	5.52	2043	265.2× ¹⁰⁴	265.2× ¹⁰⁴
HFS	A6005CSS-T5	Black anodized aluminum	H F S B 6 - 1 0 0 1 0 0	5 0 to 4 0 0 0	5.52	2043	265.2× ¹⁰⁴	265.2× ¹⁰⁴

[ ! ]Aluminum Frames, If your desired specifications are not available, such as no anodizing or a length of 4000 mm or more, please contact us for our non-standard catalog service. We will provide you with a quote, including whether or not we can manufacture theproduct.

Fixed Length Aluminum Frames Specifications Table (Effective Length 4000mm)

[ ! ]Aluminum Frames, Fixed-length frames have a format with K at the beginning of the format code for each frame.

Model Aluminum Frames	−	L
KHFSB6−100100	−	4000

type	Material	Surface Treatment	Model	Lmm	Cross-sectional area mm ²	Moment of inertia mm ⁴
type	Material	Surface Treatment	Model	Lmm	Cross-sectional area mm ²	ℓx	ℓy
HFS	A6005CSS-T5	White anodized aluminum	K H F S 6 －1 0 0 1 0 0	4 0 0 0	2043	265.2× ¹⁰⁴	265.2× ¹⁰⁴
HFS	A6005CSS-T5	Black anodized aluminum	K H F S B 6 －1 0 0 1 0 0	4 0 0 0	2043	265.2× ¹⁰⁴	265.2× ¹⁰⁴

[ ! ]Aluminum Frames, An effective length of 4000 mm means that the actual usable length of the frame is 4000 mm or more.
The actual length including the gripping allowance will be 4000 mm or more (it will be several tens of mm longer).
As fixed-length frames are frames that are cut by the customer, the exact length cannot be specified.

Alterations of Aluminum Frames (Specified Length Only, Fixed Length Not Possible)

[ ! ]Aluminum Frames, By using the various alterations listed below, MISUMI's specified length aluminum frames can be assembled withgreater flexibility.
Some frames cannot be applied depending on the type and size. Please check the price list on each alteration page tosee if it is applicable.
Items marked with "-" in the price list cannot be applied.

classification	Additional Work name	Alteration code example	Content
End face tapping	End face tap (center hole)	LTP/RTP/TPW LHP/RHP/HPW	Tap the frame. 　LTP/RTP/TPW: M8 depth 24mm 　LHP/RHP/HPW: M5 depth 10mm Blind joints ( screw joints / simple joints ) that require this tapping
Change cutting method	High-precision cutting	SC	Aluminum Frames, The tolerance of the overall length L has been changed from L±0.5 to L±0.2, allowing for high-precision cutting. *Only applicable to L≦1500
Change cutting method	45 degree cut	L□T45 R□T45	Aluminum Frames, The cut is made at a 45-degree angle. 45-degree cuts cannot be specified in the same direction with other alterations. Example: HFS6-3030-500- L TP- LAT45 ⇒ ✖ (alterations in the same direction (left)) HFS6-3030-500- L TP- RAT45 ⇒ 〇 (separate alterations on left and right) [ ! ]If you would like to cut at an angle other than 45 degrees, please contact our catalog non-standard product service .
Wrench Drilling	Fixed position wrench hole	LCH/LCV/LCP RCH/RCV/RCP	Aluminum Frames, This is an additional process to drill a wrench hole to match the position of the end face tap of the matingframe when fastening a blind joint that assembles frames into an L shape. ・The wrench hole d dimension can be selected from X5 or X8. If not specified, the d dimension will be 8. Blind joints that require this process ( screw joints / single joints / tapping joints )
	Hole position shifted by the thickness of the frame cap	FL FR	Aluminum Frames, The hole position for the additional fixed position wrench hole is moved by the thickness of the frame cap (4mm). This prevents the frame cap from protruding when assembled at a corner.
	Wrench holes at specified positions	AH/BH/CH/DH/EH AV/BV/CV/DV/EV AP/BP/CP/DP/EP	Aluminum Frames, This is an additional process that allows you to drill wrench holes at any desired position. It can be used whenfastening blind joints other than at the frame end. ・The wrench hole d dimension can be selected from X5 or X8. If no specification is made, the d dimension willbe 8. ・Up to five holes can be drilled in each of the horizontal, vertical, and cross directions. [ ! ] If you require six or more wrench holes, please contact our catalog non-standard product service .
Counterbore Drilling	Specified position counterbored hole	Z6-XA○○ Z8-YA○○	Aluminum Frames, This is an additional process to drill a counterbore hole (selectable from Z6 or Z8) at any position. ・Z6: Through hole φ6.5, counterbore hole φ11, Z8: Through hole φ9, counterbore hole φ14 ・Up to five holes can be drilled in one direction. ・For frames with multiple rows of grooves on one surface, counterbore holes will be machined in all grooves. [ ! ]Aluminum Frames, If you require more than six counterbore holes or to change the direction of the counterbore holes, please contact our non-standard product service .
Drilling holes specifically for blind joints	S hole	LSH RSH	Drills holes required for fastening first-in-place double joints ( first-in-place double joints ) .
Drilling holes specifically for blind joints	M hole	LMH RMH	Drills holes required for connecting post-assembly double joints and center joints. ( Post-assembly double joints / center joints )
Other processing	C-chamfered end	CW	The outer periphery of the frame end face is chamfered.
Other processing	Sticking stickers	ZZZ	Aluminum Frames, A sticker printed with the catalog number etc. is attached to the aluminum frame. There are restrictions on the number of characters etc., but it is also possible to print the customer's serialnumber and unit number.
