Electromagnet Holders - Standard / Low Profile / Super Low Profile

Compare This Product

Volume Discount

Brand :

From :

฿ 3,458.00/Unit
Qty :
Days to Ship :

---
Total Price :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

[Features]·You can choose standard, low-profile, or ultra-low profile types. ·An electromagnetic holder with a coil around the attraction part of the main body. (Polarity optional) · Use in gripping parts of industrial robots, etc., and for vacuum and transportation of small workpieces. ·Electrical control can be applied to turn on/off the magnetic force and its remote control. ·A rectifier is required as a power supply. Select a rectifier with the corresponding voltage. (Compatible rectifier: MGEC)

	[ M ]Material	[ S ]Surface Treatment
Body	SS400	Electroless Nickel Plating
Plastic Part	Epoxy Resin	-

Specifications

Part Number

MGE20

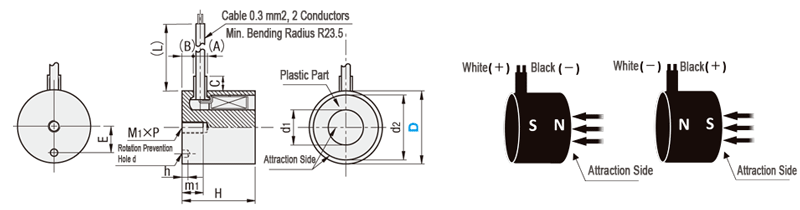

Part Number		H	d₁	d₂	(A)	(B)	C	M₁xP	Effective Screw Depth	Rotation Prevention Hole		E	(L)	Voltage (V)	Current (A)	Max. Attraction Force N {kgf}	Mass (g)
Type	D	H	d₁	d₂	(A)	(B)	C	M₁xP	m₁	d	h	E	(L)	Voltage (V)	Current (A)	Max. Attraction Force N {kgf}	Mass (g)
MGE	20	28	8	17.4	5.5	3.25	4	4x0.7	8	-	-	-	700	24	0.06	28 {2.8}	70
	30	40	13	27	7.2	6	10	6x1.0	12	4	3	10	700	24	0.17	180 {18}	200
	40	40	16	35	7.2	6	10	6x1.0	12	4	3	15	700	24	0.24	300 {30}	350
	50	50	24	44.4	7.2	4.5	10	8x1.25	15	5	4	18	700	90	0.11	600 {60}	700
	60	60	31	52.7	7.2	3	15	10x1.5	20	5	4	20	700	90	0.20	1,200 {120}	1200
MGES	20	20	6	17	5.5	1.5	12	4x0.7	5	-	-	-	200	24	0.07	10 {1}	40
	30	20	13	27	5.5	2	15	6x1.0	10	3	2	10	200	24	0.08	100 {10}	80
	40	20	17	34	5.5	2	15	6x1.0	10	3	2	15	200	24	0.09	220 {22}	150
	50	25	24	42	5.5	2	15	8x1.25	12	3	2	18	200	90	0.10	500 {50}	300
	60	30	32	50	5.5	3	18	10x1.5	16	4	3	20	200	90	0.21	1,000 {100}	500
SMGES	30	15	11.5	27.5	5.5	1.3	15	6x1.0	8	3	2	10	200	24	0.06	50 {5}	60

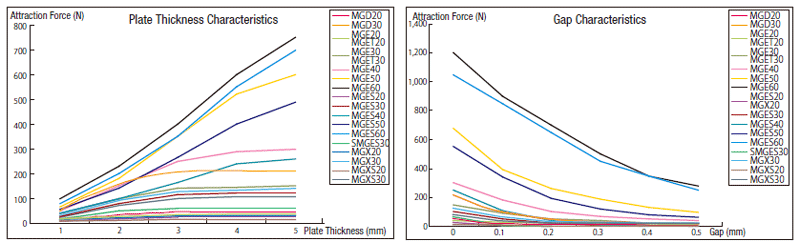

[ ! ]Maximum attraction force is for subject material of SS400(polished surface, 50mm thick plate).
