Countersunk Holder Magnet, Square / Rectangle Type
Brand :
MISUMI
Caution
- Due to China's export restrictions on Rare Earth Elements (REEs), we are temporarily suspending orders for selected magnetic products until further notice.
Product Description
[Features]
• Magnet and holder combination protects the magnet.
• SS400 Equivalent holder and neodymium magnet use nickel plating.
• Stainless Steel Flat Head Screw (SUS304) is included.
[Use]
• Use for mounting, joining, or reinforcing components in machinery, frames, and fixtures.

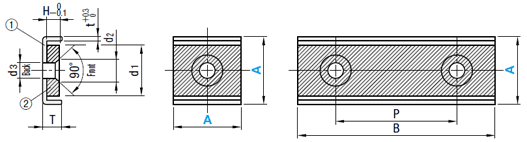

Dimensional Drawing
HXCS
(Square Type)
HXCR
(Rectangle)
| Type | Heat Resistant Temperature | Polarity | ||||||
| Square | Rectangle | [M] Material | [S] Surface Treatment | [M] Material | [S] Surface Treatment | Front | Back | |
| HXCS | HXCR | SS400 Equivalent | Nickel Plating | Neodymium Magnet | Nickel Plating | 80°C | N | S |
[A]Accessory: Stainless Steel Flat Head Screw (SUS304)
HXCS: 1 pc., HXCR: 2 pcs.
