Magnet - Countersunk with Holder - Round Type
Brand :
MISUMI
Caution
- Due to China's export restrictions on Rare Earth Elements (REEs), we are temporarily suspending orders for selected magnetic products until further notice.
Product Description
[Features]
• Round countersunk magnet with holder; the holder protects the magnet.
• Neodymium magnet with nickel plating and SS400 equivalent holder with nickel plating.
• Stainless steel flat head screw 1 pc. (SUS304) is included for matching the mounting screw.
[Use]
• Use for holding, retaining, or positioning compatible steel workpieces or components.

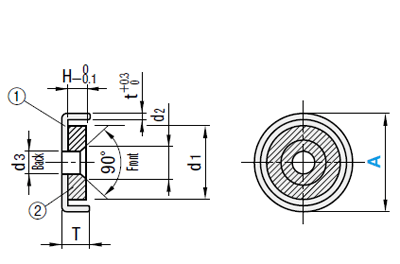

Dimensional Drawing
HXCC
HXCC-S
HXCCH
(Round Type)
HXCC-S
HXCCH
(Round Type)
Type | (1) | (2) | Heat Resistant Temperature | Polarity | |||
[M] Material | [S] Surface Treatment | [M] Material | [S] Surface Treatment | Front | Back | ||
| HXCC | SS400 Equivalent | Nickel Plating | Neodymium Magnet | Nickel Plating | 80°C | N | S |
| HXCC−S | S | N | |||||
| HXCCH | Heat-resisting Neodymium Magnet | 150°C | N | S | |||
