Clamping Screws - Non-Reverse Serrated Type
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
- MISUMI offers the HFMG series of Clamping Screws with a Non-Reverse Serrated Type.
- The main body of the clamping ball screw is made of SCM435 equivalent (HFMG) and has a black oxide surface treatment.
- The ball of the clamping screw is made of SUJ2 Equivalent with a hardness of 55-60HRC (HFMG).
- The screws are available in five sizes: M6, M8, M10, M12, or M16.
- These screws can be used with commercially available nuts that are equivalent to JIS6g.

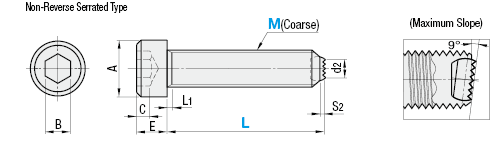

- The maximum slope angle of the tip is 9°.
[ ! ]Screw grade is based on JIS6H equivalent.
| Type | Main Body | Ball | ||
| [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ H ]Hardness | |
| HFMG | SCM435 equivalent | Black Oxide | SUJ2 Equivalent | 62~67HRC |
