Support Pins - Stepped - Pilot
Brand :
MISUMI
Caution
Product Description

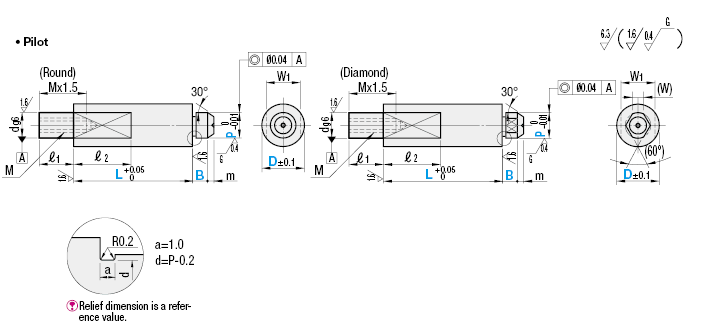

Locating Pins with the Height configurable in a wide range. Regardless of Round Shape or Diamond Shape, the horizontal locating and height adjustment are enabled.
[ ! ]SUS304 may not be polished and may have no centering hole.
| [ M ]Material | [ S ]Surface Treatment | [ H ]Hardness | Round | Diamond |
| Pilot | Pilot | |||
| ①S45C Equivalent | Black Oxide | - | SHPBB | - |
| ②S45C Equivalent | Hard Chrome Plating | Plating Hardness: 750HV ~ | SHPBR | SDPBR |
| ③S45C Equivalent | Black Oxide | Treated Hardness: 45 ~ 50HRC | SHPBHB | SDPBHB |
| ④S45C Equivalent | Hard Chrome Plating | Treated Hardness: 45 ~ 50HRC Plating Hardness: 750HV ~ | SHPBHR | SDPBHR |
| ⑤SUS304 | - | - | SHPBSU | SDPBSU |
| ⑥SUS440C or 13Cr stainless | - | Treated Hardness: 50 ~ 55HRC | SHPBC | SDPBC |
Example
