Locating Pins - Straight, Sphere (Tapped)
Brand :
MISUMI
Caution
Product Description
- Locating Pins - Straight, Sphere (Tapped) from MISUMI.
- The sphere head can prevent the mating side from being scratched. Selectable tolerance with each dimension configurable.
- SUS440C or 13Cr stainless has an identification groove at any position on D part.
- When the D dimension is small, a centering hole will cause the sphere section to become small.
- On some combination of dimensions, the center hole may not be available.
- Polishing and centering hole is sometimes not available for SUS304.

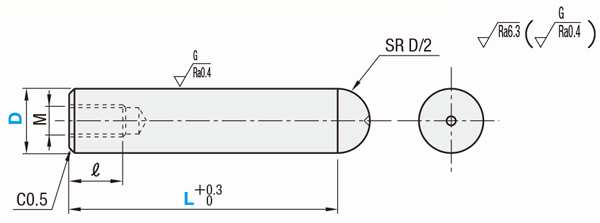

● Tapped
[ ! ] For SUS440C or 13Cr stainless steel, an identification groove is provided at any position on D part.
[ ! ] When the D dimension is small, a centering hole will cause the sphere section to become small.
[ ! ] On some combination of dimensions, the center hole may not be available.
[ ! ] SUS304 products may not be polished and have no centering hole.
Material No. | [M] Material | [S] Surface Treatment | [H] Hardness | Type | |
D Fixed | D Configurable | ||||
(1) | SKS3 Equivalent | — | Treated Hardness: 60 to 63 HRC | LPSQTA | FLPSQTA |
(2) | SKS3 Equivalent | Hard Chrome Plating | Treated Hardness: 50 to 55 HRC Plating Hardness: HV750 or more | GLPSQTA | FGLPSQTA |
(3) | SKS3 Equivalent | — | — | BLPSQTA | FBLPSQTA |
(4) | SUS304 | — | — | SLPSQTA | FSLPSQTA |
(5) | SUS304 | Hard Chrome Plating | Plating Hardness: HV750 or more | HLPSQTA | FHLPSQTA |
(6) | SUS440C or 13Cr Stainless Steel | — | Treated Hardness: 50 to 55 HRC | CLPSQTA | FCLPSQTA |
